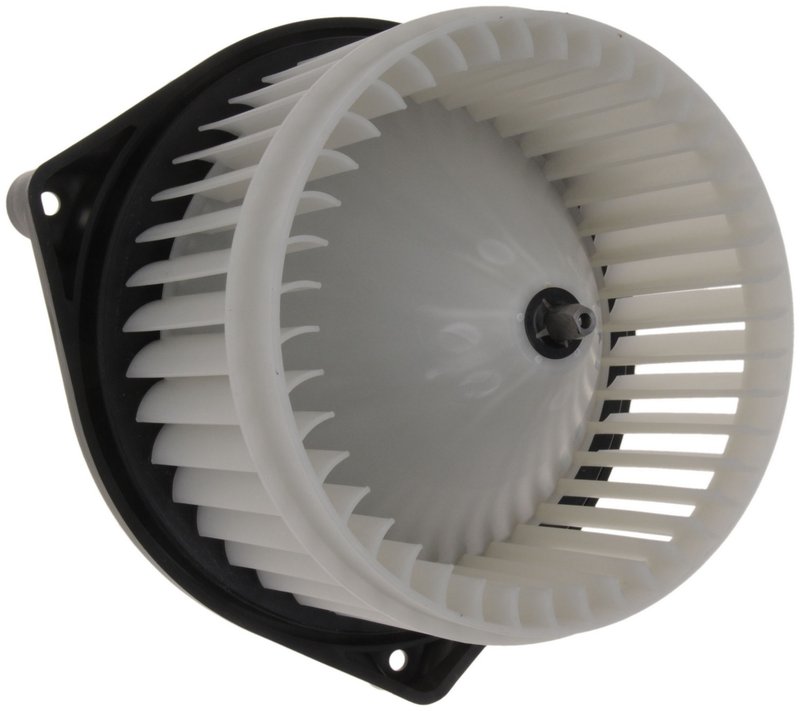

VDO PM9297 HVAC Blower Motor

Overview of VDO HVAC Blower Motor PM9297 for Toyota Tacoma

The VDO HVAC Blower Motor PM9297 is designed specifically for Toyota Tacoma models, providing reliable airflow control within the vehicle's heating and cooling system. This flange-mounted motor operates on 12 volts and features a durable metal construction for long-lasting performance.

• 12-volt metal blower motor with flange mounting
• Counterclockwise (left) rotation with single shaft design
• Wheel diameter of 5.875 inches and motor diameter of 3 inches
• Plug-in connector with female connector gender and blade terminal type
• Adjustable speed with vented motor housing and included cage wheel
• Shaft length of 3.187 inches and shaft diameter of 0.312 inches
• Flanged end design for secure mounting

Detailed Product Description

The VDO PM9297 HVAC blower motor is engineered to meet the specific requirements of Toyota Tacoma vehicles, ensuring proper fit and function. Constructed from metal, this motor offers durability and resistance to wear. It features a flange-mounted design that facilitates secure installation within the HVAC system. The motor operates at 12 volts and includes a vented housing to promote heat dissipation during operation. Its single shaft rotates counterclockwise (left) and measures 3.187 inches in length with a diameter of 0.312 inches, compatible with the blower wheel diameter of 5.875 inches. The motor also supports adjustable speed control, allowing for precise airflow management. Electrical connections are made via a plug-in connector with two blade terminals, designed for easy and reliable installation.

Common Applications and Issues Addressed

• Replacement of faulty or worn blower motors in Toyota Tacoma HVAC systems
• Restoring proper airflow and ventilation inside the vehicle cabin
• Resolving inconsistent blower speeds or motor noise
• Fixing blower motor failure that affects heating and cooling performance
• Addressing overheating issues with vented motor design

Installation Notes and Tips

When installing the VDO PM9297 blower motor, ensure the flange-mounted design aligns correctly with the HVAC housing. The plug-in connector simplifies electrical connections, but verify terminal compatibility before installation. Note that mounting hardware and gaskets are not included, so retain original components or source replacements as needed. Proper alignment of the single shaft and blower wheel is critical for optimal operation. Adjust speed settings after installation to confirm smooth motor function.

Quality Assurance and Warranty

VDO manufactures the PM9297 blower motor to meet OEM standards for fit and function in Toyota Tacoma vehicles. The metal construction and vented design contribute to reliable performance under normal operating conditions. While specific warranty details are not provided, VDO products typically come with manufacturer-backed quality assurance to support durability and customer satisfaction.
