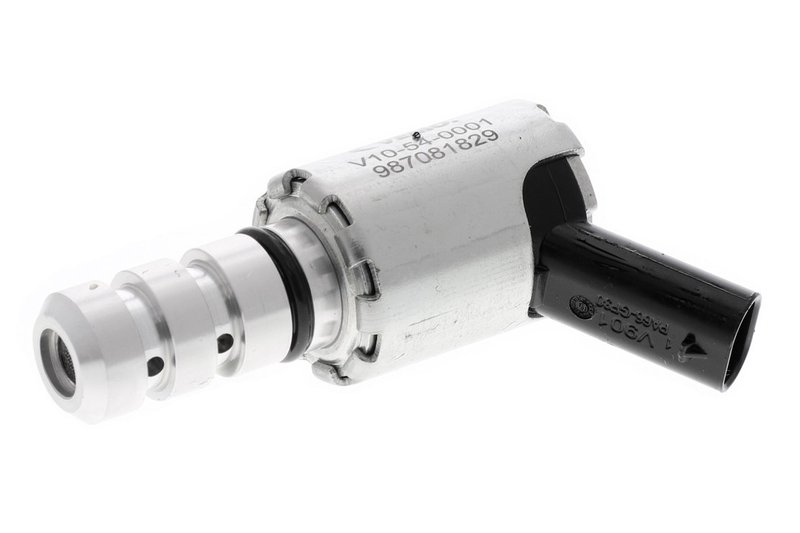

Vemo V10-54-0001 Engine Variable Valve Timing (VVT) Oil Control Valve

VVT Oil Control Valve for Audi and Volkswagen

The Vemo V10-54-0001 is an electrically controlled engine variable valve timing oil control valve built for precise camshaft oil flow management. With OE-style dimensions of 79 mm length, 50 mm width, and 34 mm height, it is a direct-fit service part for select Audi Q7 and Volkswagen Touareg applications.

VEMO is the product line used by Vemo for OE-grade replacement components, and this valve is specified with a 2-pole electrical connection for controlled operation in the valve train system.

• Part number: V10-54-0001
• Electrically controlled VVT oil control valve
• 2-pole connector design
• Dimensions: 79 mm length, 50 mm width, 34 mm height
• Weight: 0.100 kg
• OE reference fitment for select Audi Q7 and Volkswagen Touareg models

Detailed Fitment and Function

This engine variable valve timing oil control valve regulates oil delivery to the camshaft timing system, helping the engine management system adjust valve timing as commanded. It is listed for 2010-2012 Audi Q7 and 2009-2012 Volkswagen Touareg applications, including OE No. 059115243B references. This part cross-references 059 115 243 A and 059 115 243 B for the same application.

Use Vemo V10-54-0001 when servicing a VVT oil control valve on Audi Q7 or Volkswagen Touareg engines that require OE-style electrical control and the listed connector and size profile.

What It Helps Address

• Camshaft timing faults related to oil control valve response
• Rough idle caused by unstable variable valve timing operation
• Check engine lights tied to VVT control circuit performance
• Delayed or inconsistent cam timing adjustment
• OE-number-matched replacement needs for 059115243B applications

Installation Notes and Tips

• Verify the OE number and connector style before installation.
• Inspect the electrical connector and harness for corrosion or damage.
• Confirm the sealing surfaces are clean before fitting the new valve.
• Clear diagnostic trouble codes after installation and recheck engine operation.

Quality Assurance

Vemo VEMO parts are positioned as OE-grade replacement components for European vehicle applications. This part number is built to match the listed electrical and dimensional requirements for the specified Audi Q7 and Volkswagen Touareg fitments.
