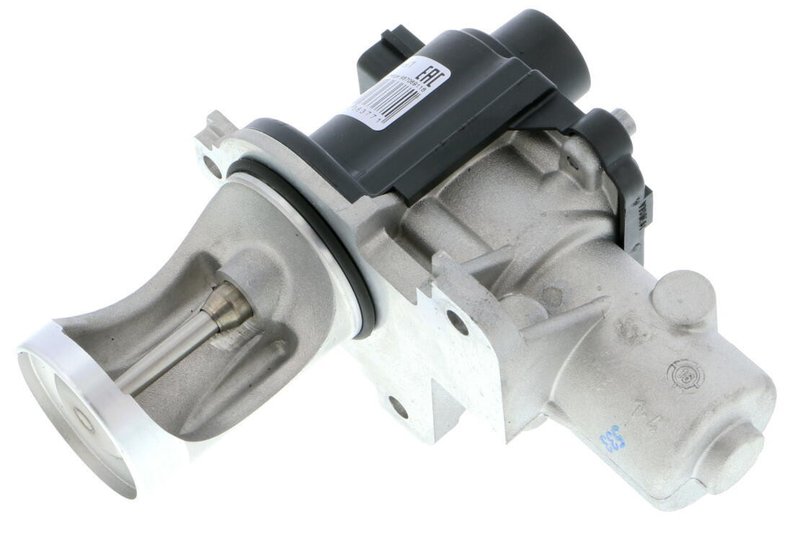

Vemo V10-63-0004 EGR Valve

VEMO EGR Valve for Volkswagen 2.0L Applications

The Vemo V10-63-0004 is an electric exhaust gas recirculation (EGR) control valve built for select Volkswagen emissions systems. It is specified for 2004-2006 Volkswagen Beetle, 2004-2006 Volkswagen Golf, 2004-2005 Volkswagen Jetta, and 2004-2005 Volkswagen Passat applications with OE-style fitment requirements.

With a 12-volt electric operating mode, 5 connectors, and compact dimensions of 116 mm high, 90 mm wide, and 80 mm long, this VEMO EGR valve is built to match the electrical and packaging needs of the original system. The V10-63-0004 is supplied without gasket or seal, so the existing sealing components should be verified during service.

Key Features

• Electric exhaust gas recirculation (EGR) control valve
• 12 V operating voltage with 5 electrical connectors
• Dimensions: 116 mm height, 90 mm width, 80 mm length
• Supplied without gasket / seal
• Fits select Volkswagen Beetle, Golf, Jetta, and Passat models
• Part number V10-63-0004 for catalog and service matching

Product Details

VEMO V10-63-0004 is an emission control component used to regulate exhaust gas recirculation flow in the vehicle’s EGR system. The valve type is listed as a control valve, and the electric design supports direct integration into the vehicle’s 12-volt control circuit. For buyers searching for a Volkswagen Beetle EGR valve, Volkswagen Golf EGR valve, Volkswagen Jetta EGR valve, or Volkswagen Passat EGR valve, this part number provides a direct OE-style replacement reference. This part cross-references Monroe Shocks & Struts (e.g., 555048) for the same application.

Common Issues Addressed

• EGR valve fault codes related to recirculation flow control
• Rough idle or drivability concerns tied to EGR operation
• Emissions system malfunction warnings
• Restricted exhaust gas recirculation caused by a worn valve
• Electrical connector or actuator-related EGR service replacement needs

Installation Notes and Tips

• Confirm vehicle fitment by year, make, and model before ordering.
• Inspect the sealing surface and replace the gasket or seal if required, since this valve is supplied without one.
• Check the electrical connector count and harness condition before installation.
• Clear diagnostic trouble codes and verify EGR operation after installation.
• Use the part number V10-63-0004 when matching catalog references and service records.

Quality Assurance

VEMO parts are cataloged for OE-style replacement applications, and this EGR valve is listed with exact dimensional and electrical specifications to support proper fitment on the confirmed Volkswagen applications. The part number V10-63-0004 also appears in interchange references for service matching.
