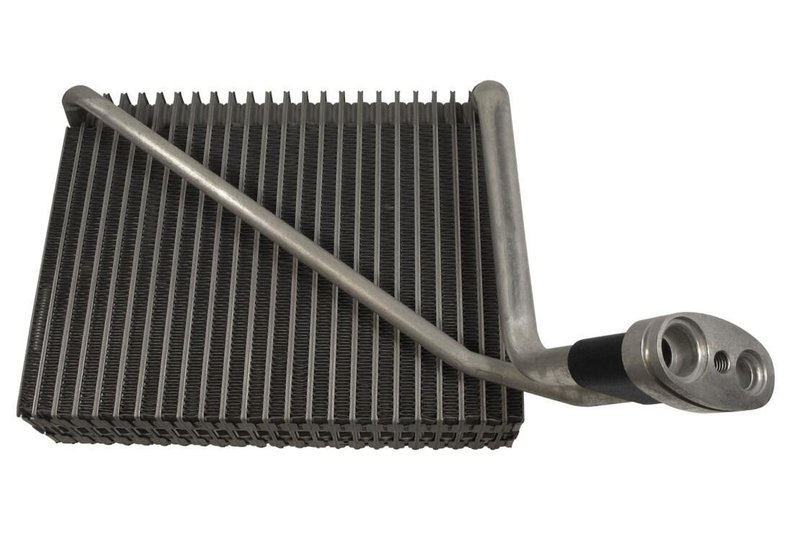

Vemo V10-65-0016 A/C Evaporator Core

VEMO A/C Evaporator Core for Audi and Volkswagen

The Vemo V10-65-0016 is an A/C evaporator core built for select Audi A4, Audi A4 Quattro, Audi S4, and Volkswagen Passat applications. With a compact 220 mm x 220 mm x 370 mm footprint and a weight of 1.515 kg, it is sized for direct HVAC service where the original evaporator core has failed or lost efficiency.

VEMO product line components are developed for European vehicle service needs, with application-specific coverage for factory-style HVAC repair. This evaporator core is listed without an expansion valve and is matched to manual temperature control configurations where noted in the fitment data.

Key Features

• Part number: V10-65-0016
• A/C evaporator core for HVAC system repair
• Dimensions: 220 mm height, 220 mm length, 370 mm width
• Weight: 1.515 kg
• Listed for select Audi and Volkswagen models
• Fitment notes include manual temperature controls and, on some applications, without expansion valve
• Cross-reference part numbers include 8D1 820 103 C and 8D1 820 103 D

Detailed Description

This Vemo A/C evaporator core, part number V10-65-0016, serves as the heat-exchange component inside the vehicle HVAC case, where it absorbs heat from cabin air as refrigerant passes through the core. It is cataloged for 1997-2001 Audi A4, 1997-2001 Audi A4 Quattro, 2000-2002 Audi S4, and 1998-2005 Volkswagen Passat applications, with fitment notes that include manual temperature controls and, on certain listings, without expansion valve. For buyers searching for a replacement A/C evaporator core for Audi A4 or Volkswagen Passat HVAC repair, this listing provides the core dimensions and application details needed for selection.

This part cross-references Nissens 92272 for the same application.

What It Helps Address

• Weak or inconsistent cabin cooling
• Refrigerant-side leakage at the evaporator core
• HVAC performance loss from a clogged or damaged core
• Temperature control issues in manual HVAC systems
• Service replacement for an original evaporator core on Audi and Volkswagen platforms

Installation Notes and Tips

• Verify the vehicle’s HVAC configuration before ordering, especially manual temperature controls and expansion valve requirements.
• Confirm the part number against the original unit when servicing Audi A4, Audi A4 Quattro, Audi S4, or Volkswagen Passat models.
• Inspect the HVAC case, seals, and refrigerant lines during replacement to avoid repeat leaks.
• Have the system evacuated and recharged by a qualified technician after installation.

Quality Assurance

VEMO parts are cataloged with application-specific fitment data and OE-style reference numbers to support accurate replacement selection. This evaporator core is listed with interchange references including 8D1 820 103 C, 8D1 820 103 D, and 8D1 820 103 G, helping confirm coverage for the intended Audi and Volkswagen applications.
