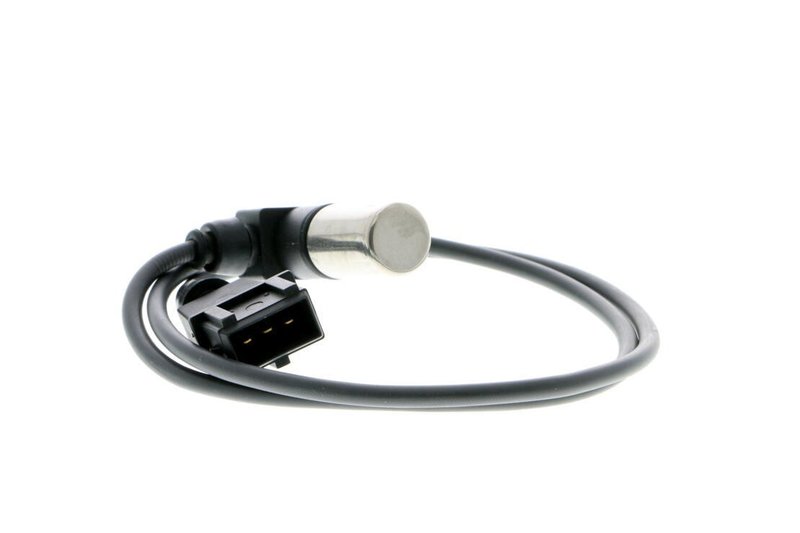

Vemo V10-72-0968 Engine Crankshaft Position Sensor

Engine Crankshaft Position Sensor for Audi

The Vemo V10-72-0968 engine crankshaft position sensor is a 12V passive sensor with a 3-pin connector and integrated cable. It is built for Audi ignition and engine speed signal applications where accurate crankshaft position input is needed for proper engine management.

VEMO product line components are built for direct-fit replacement needs in ignition and sensor service, with application-specific connector design and OE-style dimensions for select Audi models.

Key Features

• Part number: V10-72-0968
• Engine crankshaft position sensor for ignition and engine speed signal applications
• Passive sensor with electric operating mode
• 3 connectors / 3 poles
• 12V rated voltage
• Integrated cable, 700 mm cable length
• Includes seal
• Resistance: 980 Ohm
• Fitting depth: 41 mm; height: 15 mm; width: 50 mm

Detailed Description

The Vemo V10-72-0968 is an engine crankshaft position sensor used in select Audi vehicles to monitor crankshaft position and engine speed data for the ignition system and engine control module. With a passive sensor design, 3-pin electrical connection, and cable included, this replacement sensor is suited for service work where the original signal input has become unreliable. This part number, V10-72-0968, is listed for Audi A4, Audi A6, Audi S4, Audi S6, Audi 90, Audi 100, Audi 200, Audi Cabriolet, Audi V8 Quattro, and Audi Quattro applications across model years 1990 through 1998.

This part cross-references Gates 18814 and Standard Ignition PC181 for the same application.

What It Helps Fix

• Crankshaft position signal loss
• Intermittent no-start or hard-start conditions
• Rough running caused by incorrect engine speed input
• Stalling related to sensor signal interruption
• Check engine light concerns tied to crankshaft position feedback

Installation Notes and Tips

Verify connector style, cable routing, and sensor location before installation. This sensor uses a 3-pin connection and includes a seal, so the mating connector and mounting area should be clean and free of corrosion or oil contamination. Confirm vehicle-specific fitment for Audi A4, A6, S4, S6, 90, 100, 200, Cabriolet, V8 Quattro, and Quattro models before ordering.

• Fits 1998 Audi A6 Quattro, N/A
• Fits 1994-1998 Audi Cabriolet, N/A
• Fits 1997 Audi A4, N/A
• Fits 1996-1997 Audi A4 Quattro, N/A
• Fits 1995-1997 Audi A6, N/A
• Fits 1995-1997 Audi A6 Quattro, N/A
• Fits 1996-1997 Audi S6, N/A
• Fits 1996 Audi A4, N/A
• Fits 1993-1995 Audi 90, N/A
• Fits 1993-1995 Audi 90 Quattro, N/A
• Fits 1995 Audi S6, N/A
• Fits 1992-1994 Audi 100, N/A
• Fits 1992-1994 Audi 100 Quattro, N/A
• Fits 1992-1994 Audi S4, N/A
• Fits 1990-1994 Audi V8 Quattro, N/A
• Fits 1990-1991 Audi 200, N/A
• Fits 1990-1991 Audi 200 Quattro, N/A
• Fits 1990-1991 Audi 90 Quattro, N/A
• Fits 1990-1991 Audi Coupe Quattro, N/A

Quality Assurance

Vemo VEMO ignition and sensor parts are cataloged with OE-style specifications, including connector count, voltage rating, resistance, and dimensional data to support accurate replacement selection. Use the part number V10-72-0968 and the vehicle fitment details to confirm application before installation.
