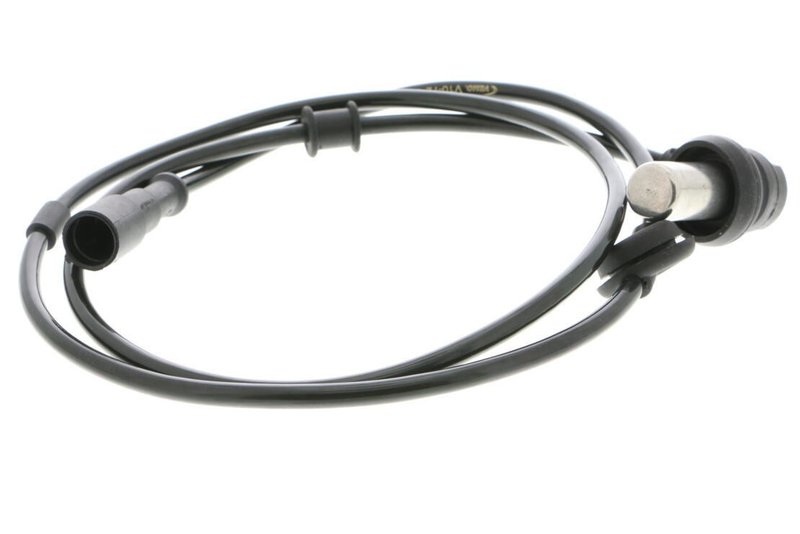

Vemo V10-72-1093 ABS Wheel Speed Sensor - Rear Left or Rear Right

ABS Wheel Speed Sensor for Audi A6 and Audi 100

Vemo V10-72-1093 is an ABS wheel speed sensor with cable for vehicles equipped with ABS. It is built for rear axle applications on select Audi A6 and Audi 100 models, with a 2-pin connector and 12V rated voltage for direct replacement use.

Key Features

• ABS wheel speed sensor for brake and drive dynamics systems
• Fits rear right and rear left positions on listed Audi applications
• Includes cable; cable length 1200 mm, overall length 1270 mm
• 2 connectors and 2 poles for the specified OE-style connection layout
• Dimensions: 60.45 mm height and 30.3 mm width
• Vemo part number V10-72-1093 for catalog and service matching

Detailed Description

This VEMO ABS wheel speed sensor is specified for Audi A6 and Audi 100 rear axle fitments where the vehicle uses ABS. The sensor uses a 2-pin connector design, a 12V electrical rating, and an integrated cable harness to match the listed application requirements. For parts lookup and service ordering, V10-72-1093 is the reference number to use, and it cross-references OE-style part number 4A0927807 for the same application.

Compatible With: 1995-1998 Audi A6, rear right; 1995-1998 Audi A6, rear left; 1992-1994 Audi 100, rear right; 1992-1994 Audi 100, rear left. These fitments cover rear wheel speed sensing on the listed Audi A6 and Audi 100 models with ABS.

What This Sensor Helps Address

• ABS warning light caused by a failed rear wheel speed sensor
• Erratic or missing wheel speed signal at the rear axle
• ABS system faults related to damaged sensor wiring or connector issues
• Brake control problems tied to inaccurate wheel speed input
• Service replacement for worn OE-style rear sensor assemblies

Installation Notes and Tips

Confirm the rear position, connector count, and cable length before installation. Compare the existing sensor and harness routing to the vehicle to verify the 1270 mm overall length and 2-pin connection layout. Clean the mounting area and inspect the tone ring, wiring path, and connector terminals before fitting the new sensor. For fitment searches, use V10-72-1093 along with Audi A6 rear right or rear left, and Audi 100 rear right or rear left.

Quality Assurance

VEMO V10-72-1093 is an aftermarket brake sensor built to match the listed OE application details for the specified Audi models. The part is identified for ABS-equipped vehicles and follows the provided dimensional and connector specifications for accurate catalog matching.
