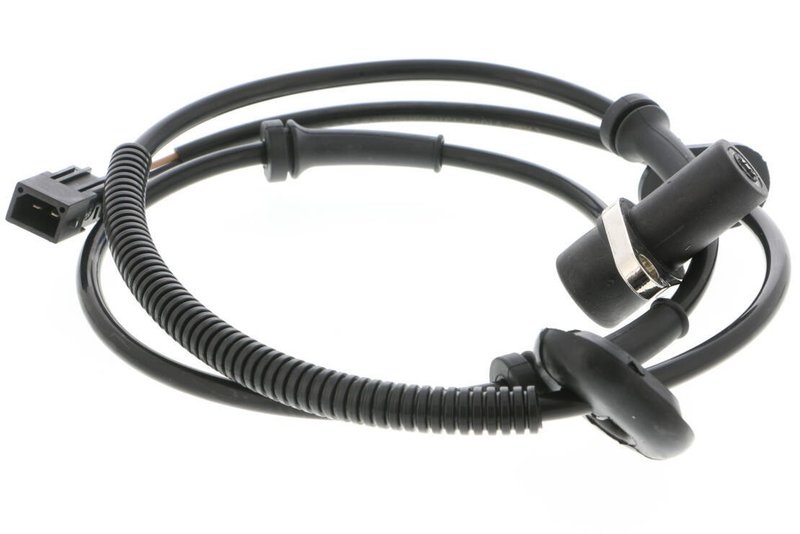

Vemo V10-72-1318 ABS Wheel Speed Sensor - Rear Left or Rear Right

ABS Wheel Speed Sensor for Volkswagen Passat

Vemo V10-72-1318 is a passive ABS wheel speed sensor for vehicles with ABS. It is built with a 1150 mm cable, 2 connectors, 2 poles, and 12 V rated voltage for direct replacement use on supported Volkswagen Passat applications.

Compatible With 1999-2005 Volkswagen Passat rear left and rear right positions, this ABS wheel speed sensor supports the signal input needed by the braking and drive dynamics system. VEMO V10-72-1318 is also referenced by OE number 3B0927807G for the listed applications.

Key Features

• Passive ABS wheel speed sensor for vehicles with ABS
• 1150 mm cable length for rear axle routing
• 2 connectors and 2 poles
• 12 V rated voltage
• Sensor resistance: 1650 Ohm
• Dimensions: 1150 mm length, 35 mm height, 50 mm width
• Brand line: VEMO replacement sensor for ABS-equipped braking systems

Detailed Description

The Vemo V10-72-1318 ABS wheel speed sensor is specified for rear left and rear right fitment on Volkswagen Passat models from 1999 through 2005, including applications with OE number 3B0927807G. As a passive sensor, it reads wheel speed data for the ABS control system and helps maintain accurate braking input at the wheel. This part number, V10-72-1318, is listed for Passat rear axle positions and is built to match the electrical and dimensional requirements shown in the product data.

This part cross-references Standard Ignition ALS515 for the same application.

What It Is Used For

• Restoring ABS wheel speed signal output on a Volkswagen Passat
• Addressing ABS warning light concerns tied to rear wheel sensor faults
• Correcting wheel speed data loss at the rear left or rear right position
• Replacing a damaged or worn sensor harness on ABS-equipped vehicles
• Supporting stable braking system input from the rear axle

Installation Notes and Tips

Verify the rear left or rear right position before ordering, since the listed fitment covers both sides on specific Passat applications. Confirm OE number 3B0927807G, connector style, and harness length against the removed part before installation. Check the wheel hub area, wiring path, and connector terminals for corrosion or damage that could affect sensor performance.

Quality Assurance

VEMO parts are cataloged with application-specific specifications, including sensor type, connector count, pole count, voltage, resistance, and dimensions, to support accurate replacement selection for the listed Volkswagen Passat fitments.
