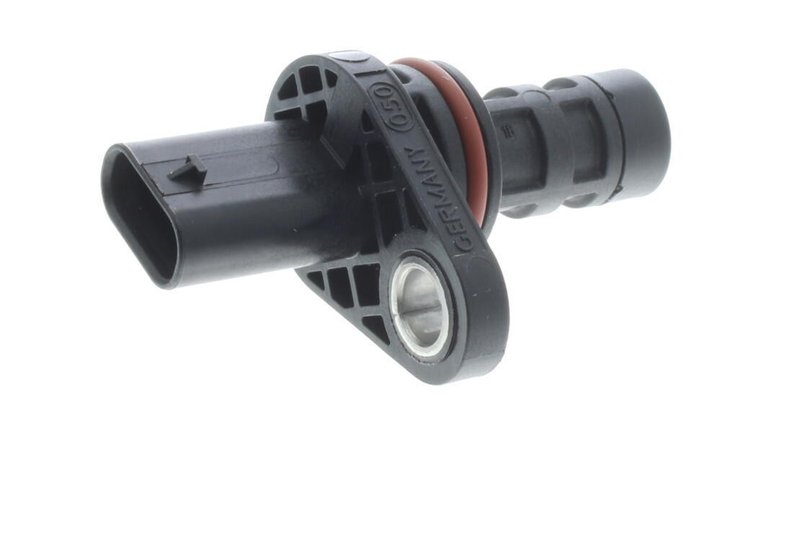

Vemo V10-72-1320 Engine Crankshaft Position Sensor

Engine Crankshaft Position Sensor for Audi and Volkswagen

The Vemo V10-72-1320 engine crankshaft position sensor is built for precise engine speed and crank position signal input in select Audi and Volkswagen applications. It features a 3-pin oval connector, 12V rated voltage, and a black housing with compact dimensions for OE-style fitment.

VEMO Q+ Quality Level identifies parts manufactured in Germany to OEM-quality standards in line with vehicle manufacturer certifications. This V10-72-1320 sensor is supplied without cable and is specified for direct replacement use on listed Audi A3, A4, A5, A6, Q5, Q7, S3, TT Quattro, and Volkswagen Golf/Golf R applications.

Key Features

• Engine crankshaft position sensor for ignition and engine management systems
• Vemo V10-72-1320 part number for accurate catalog matching
• 3 connector / 3 pole design with oval connector shape
• Black housing with compact 60 mm width, 72 mm length, and 60 mm height
• 12V rated voltage and 870 ohm resistance specification
• Supplied without cable for OE-style replacement
• VEMO Q+ Quality Level, manufactured in Germany to OEM-quality certification standards

Product Details

The crankshaft position sensor monitors crankshaft rotation so the engine control system can calculate ignition timing and engine speed. On turbocharged and direct-injection Audi and Volkswagen platforms, a stable crank signal is critical for consistent starting, smooth idle, and accurate engine synchronization. The Vemo V10-72-1320 is engineered around the listed connector and electrical specifications to match the original sensor format used across multiple 2011-2017 Audi and 2015-2017 Volkswagen applications. This part cross-references Bosch 17156 for the same application.

Common Issues This Sensor Can Help Address

• Hard starting or extended crank time
• Intermittent stalling or sudden engine shutdown
• Rough idle caused by an unstable crank signal
• Check engine light related to crankshaft position sensor faults
• Misfire or synchronization issues tied to incorrect engine speed input

Installation Notes and Tips

Verify connector shape, pole count, and sensor dimensions before installation. Confirm the vehicle uses the listed 3-pin configuration and compare the original part number against Vemo V10-72-1320 for proper application matching. Inspect the connector terminals and wiring harness for corrosion, oil intrusion, or damaged locking tabs before fitting the new sensor. Clear fault codes after installation and confirm the engine starts and idles normally.

Quality Assurance

VEMO Q+ Quality Level indicates a Germany-made part built to OEM-quality standards and aligned with vehicle manufacturer certification requirements. The Vemo V10-72-1320 is specified for direct replacement use on select Audi and Volkswagen models, including 2011-2017 Audi TT Quattro, 2013-2017 Audi A4 Quattro, and 2015-2017 Volkswagen Golf R applications.
