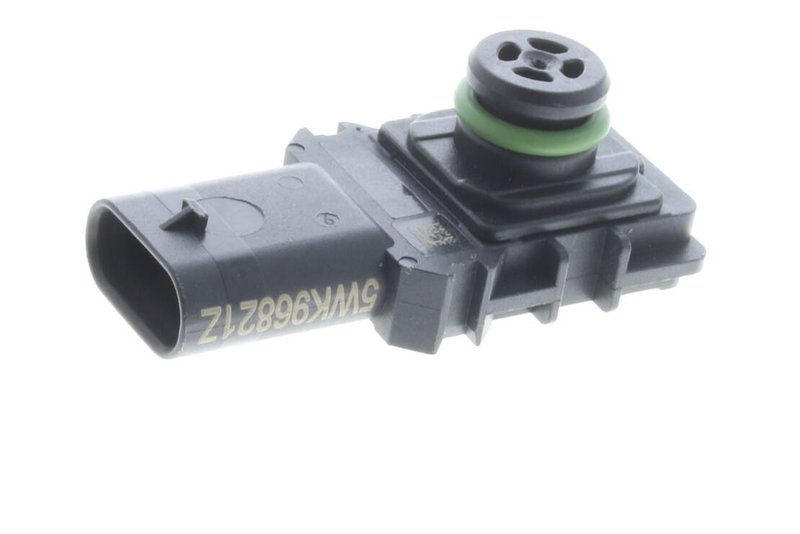

Vemo V10-72-1409 Manifold Absolute Pressure Sensor

Manifold Absolute Pressure Sensor for OE Fitment

The Vemo V10-72-1409 manifold absolute pressure sensor is an OE-grade emission control sensor built for precise intake pressure monitoring. It supports accurate engine load calculation and is listed for a wide range of Audi and Volkswagen applications, including Audi A3, A6, A8 Quattro, Q5, RS5, RS7, S6, S7, S8, SQ5, and Volkswagen Golf, GTI, Jetta, Passat, Touareg, and Beetle models.

Key Features

• Brand: Vemo VEMO
• Part number: V10-72-1409
• Manifold Absolute Pressure Sensor for emission control systems
• 3-pole electrical connection
• Black housing finish
• Compact sensor dimensions: 50 mm height, 40 mm length, 70 mm width
• OE-grade application coverage for select Audi and Volkswagen vehicles
• Cross-reference example: 06E 906 052

Detailed Description

VEMO V10-72-1409 is a manifold absolute pressure sensor used to measure intake manifold pressure for engine management systems. In Audi and Volkswagen platforms, this sensor supports the data the ECU uses for air-fuel calculation, boost control, and emissions-related operation. It is listed for vehicles such as the Audi A3, A6, A8 Quattro, Q5, RS5, RS7, S6, S7, S8, SQ5, and Volkswagen Golf, Golf R, GTI, Jetta, Passat, Touareg, and Beetle, with fitment notes that include secondary air injection pipe and AIR pump system applications on certain models. This part number, V10-72-1409, also cross-references OE-style numbers including 06E 906 052 for the same application family.

What This Sensor Helps Address

• Incorrect manifold pressure readings
• Engine performance issues tied to inaccurate load data
• Emission control faults related to sensor signal errors
• Check engine lights associated with MAP sensor circuit problems
• Driveability concerns on Audi and Volkswagen turbocharged or air-injection-equipped systems

Installation Notes and Tips

Verify the OE number, connector style, and vehicle notes before ordering. This sensor uses a 3-pole connection and is listed with OE reference 06E906052 on multiple fitments. Confirm the exact model year and any VIN or production-date restrictions shown in the fitment data, especially on Audi A6, A6 Quattro, Q7, Jetta, Eos, Golf, GTI, and Touareg applications. The part number V10-72-1409 should be matched against the original sensor before installation.

Quality Assurance

Vemo VEMO supplies OE-grade emission control components with application-specific fitment data for Audi and Volkswagen vehicles. The V10-72-1409 is cataloged to OE reference standards for direct replacement use on listed applications.
