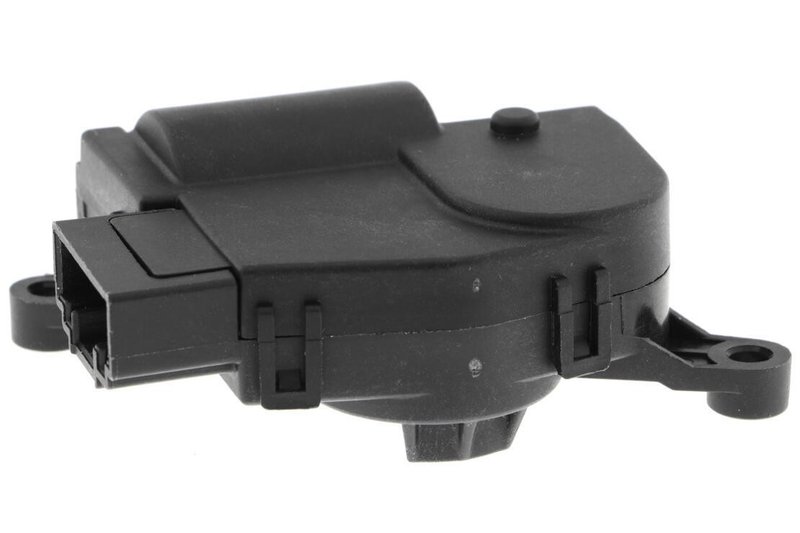

Vemo V10-77-1080 HVAC Blend Door Actuator

VEMO HVAC Blend Door Actuator for Volkswagen Passat

The Vemo V10-77-1080 is an electric HVAC blend door actuator for vehicles with automatic climate control. It is specified for PR number KH6 and is used as a servomotor for the distribution flap in select Volkswagen Passat applications.

Key Features

• Electric operating mode for HVAC flap control
• Designed for vehicles with automatic climate control
• Measures 74 mm in length, 60 mm in width, and 34 mm in height
• Lightweight construction at 0.085 kg
• Specified for PR number KH6
• Cross-reference: OE-style application for part number 561 907 511

Product Details

VEMO V10-77-1080 is an HVAC blend door actuator built to control the distribution flap in the climate system. In Volkswagen Passat models with electronically regulated air conditioning, this actuator helps direct airflow through the HVAC housing so the system can manage temperature and air distribution correctly. The compact electric design and OE-reference fitment make V10-77-1080 a direct replacement choice for Passat vehicles listed below. VEMO V10-77-1080 also cross-references OE number 561 907 511 for the same application.

Vehicle Fitment

• Fits 2017 Volkswagen Passat, N/A — Grade: Aftermarket; Servomotor For Distribution Flap; With OE No. 561907511; VEMO
• Fits 2012-2016 Volkswagen Passat, N/A — Grade: Aftermarket; Servomotor For Distribution Flap; W/ Electronically Regulated Air Conditioning; With OE No. 561907511; VEMO

Common HVAC Issues This Part May Address

• Incorrect air distribution between vents and defrost outlets
• Temperature changes that do not respond properly to climate control settings
• HVAC flap movement problems caused by a failed actuator motor
• Clicking, binding, or inconsistent blend door operation inside the dash
• Loss of automatic climate control function in the affected circuit

Installation Notes

Verify the OE number 561 907 511 and PR number KH6 before installation. Confirm the vehicle is equipped with automatic climate control and compare the actuator dimensions to the original unit before replacement. On Volkswagen Passat applications, access is typically through the HVAC housing, so proper trim removal and calibration checks after installation are recommended.

Quality Assurance

VEMO supplies OE-style replacement components for European vehicle HVAC systems. This part is built to match the listed fitment and electrical operating requirements for the specified Volkswagen Passat applications.
