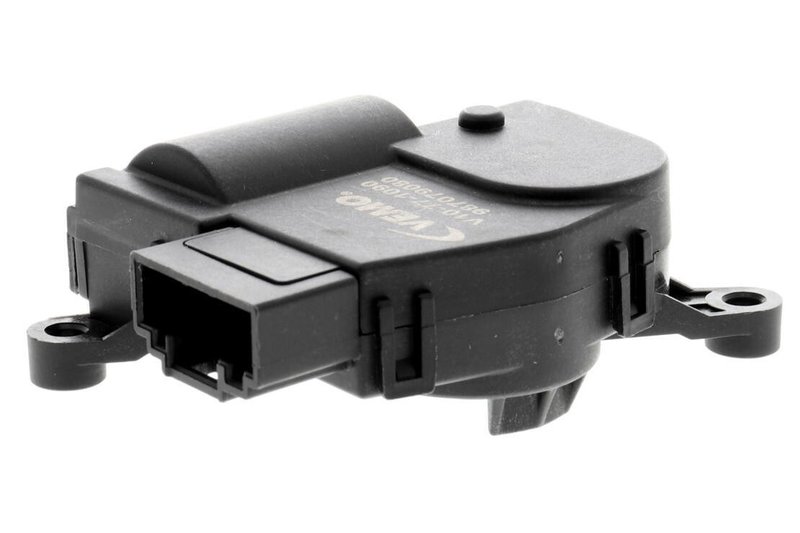

Vemo V10-77-1090 HVAC Blend Door Actuator

Overview of Vemo HVAC Blend Door Actuator V10-77-1090

The Vemo HVAC Blend Door Actuator V10-77-1090 is designed for precise climate control in select Audi and Volkswagen vehicles. This electric actuator ensures accurate airflow regulation within the HVAC system, contributing to optimal cabin comfort.

• Compact dimensions: 84 mm length, 60 mm width, 32 mm height
• Lightweight design at 0.084 kg for efficient operation
• Electric operating mode for reliable and responsive control
• Compatible with multiple Audi and Volkswagen models
• Part number V10-77-1090 for exact replacement

Detailed Product Description

The Vemo HVAC Blend Door Actuator V10-77-1090 operates electrically to adjust the blend door position within the heating, ventilation, and air conditioning system. Its compact size—measuring 84 mm in length, 60 mm in width, and 32 mm in height—allows for seamless integration into the HVAC assembly without interfering with other components. Weighing just 0.084 kg, this actuator provides efficient movement with minimal load on the system. The electric operation mode ensures precise modulation of air temperature by controlling the blend door's position, which mixes hot and cold air streams to achieve the desired cabin temperature.

VEMO Brand Line Information

The VEMO brand line specializes in high-quality automotive electrical components, including switches, solenoids, and actuators. This HVAC blend door actuator is part of VEMO's commitment to delivering reliable and durable parts that meet OEM specifications. The VEMO product line is engineered to provide consistent performance and compatibility with European vehicle makes such as Audi and Volkswagen.

Compatible Vehicles and Common Applications

This actuator is compatible with a range of Audi and Volkswagen models, including:

• Audi A3, A3 Quattro, A3 Sportback e-tron, Q3, Q3 Quattro, S3
• Volkswagen CC, e-Golf, Eos, Golf, Golf Alltrack, Golf R, Golf SportWagen, GTI, Jetta, Tiguan

It is typically used to address HVAC system issues such as:

• Inconsistent cabin temperature regulation
• Unresponsive or stuck blend door movement
• Unusual noises from the HVAC system during temperature adjustment
• Failure to switch between heating and cooling modes properly
• Erratic airflow distribution inside the vehicle

Installation Notes and Tips

• Ensure the vehicle's battery is disconnected before installation to prevent electrical shorts.
• Access the blend door actuator by removing the appropriate dashboard panels as specified in the vehicle service manual.
• Verify the actuator's orientation and connector alignment before securing it in place.
• Test the HVAC system after installation to confirm proper operation of the blend door.
• Use the part number V10-77-1090 to confirm compatibility and avoid installation errors.

Quality Assurance and Warranty

The Vemo HVAC Blend Door Actuator V10-77-1090 is manufactured to meet strict quality standards, ensuring durability and reliable performance. While specific warranty details may vary, Vemo products typically come with a limited warranty covering defects in materials and workmanship. Always consult the warranty information provided at purchase for exact terms.
