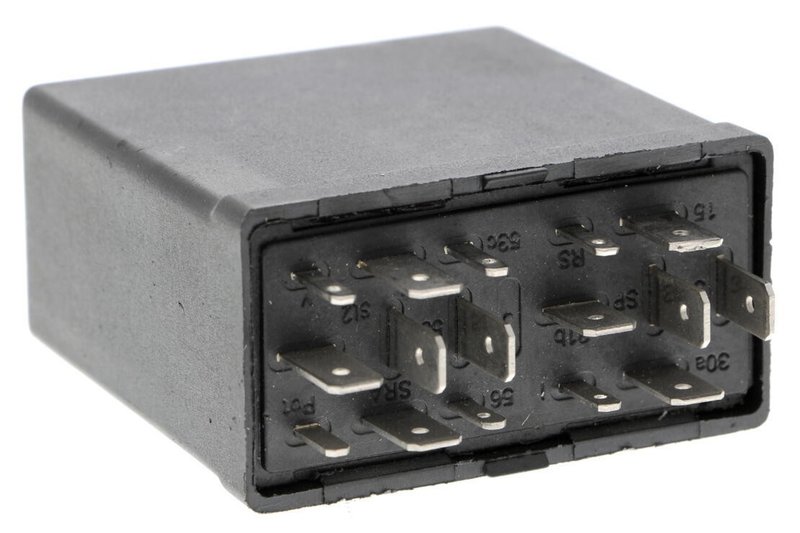

Vemo V15-71-0057 Windshield Wiper Motor Relay

Wiper Motor Relay for Volkswagen Rain Sensor Systems

The Vemo V15-71-0057 is a wiper motor relay for Volkswagen vehicles equipped with a rain sensor. Built to match the listed dimensions and OE-style reference numbers, it supports reliable wiper system operation in applications such as the Volkswagen Beetle, Golf, Jetta, Passat, R32, and Golf City.

VEMO product line components are developed for European vehicle electrical and control-system applications, with attention to fit, connector-related application matching, and service replacement accuracy. The V15-71-0057 follows that approach for rain-sensor-equipped Volkswagen models.

Key Features

• Wiper motor relay for vehicles with rain sensor
• Brand: Vemo, VEMO product line
• Part number: V15-71-0057
• Dimensions: 66 mm length, 63 mm width, 34 mm height
• OE-style interchange references for application matching
• Lightweight electrical component at 0.111 kg

Detailed Description

This Vemo wiper motor relay is specified for Volkswagen rain-sensor applications where the relay coordinates wiper motor control within the vehicle’s washer and wiper system. It cross-references Carlson 16059 and OE-style numbers 1C0 955 531, 1J0 955 531, 1J0 955 531 A, and 1J0955531 for the same application. Use the V15-71-0057 when replacing a relay on compatible Volkswagen Beetle, Golf, Jetta, Passat, R32, or Golf City models listed below.

Vehicle Fitment

• Fits 2007-2010 Volkswagen Beetle, N/A
• Fits 2007 Volkswagen Golf City, N/A
• Fits 2003-2007 Volkswagen Jetta, N/A
• Fits 2006 Volkswagen Beetle, N/A; From VIN 1C-6-410 502
• Fits 2006 Volkswagen Beetle, N/A; From VIN 1Y-6-310 502
• Fits 2000-2006 Volkswagen Golf, N/A
• Fits 2003-2005 Volkswagen Passat, N/A
• Fits 2003-2004 Volkswagen R32, N/A

Common Symptoms This Relay May Address

• Intermittent or inoperative windshield wiper operation
• Wiper system response issues on rain-sensor-equipped Volkswagen models
• Relay-related electrical faults in the wiper circuit
• Delayed or inconsistent wiper motor activation
• Replacement need after diagnosis confirms relay failure

Installation Notes and Tips

Confirm the vehicle is equipped with a rain sensor before ordering. Match the part number, OE cross-reference, and vehicle VIN notes where listed, especially for 2006 Volkswagen Beetle applications. Verify relay dimensions and connector fitment against the removed unit before installation. Professional diagnosis of the wiper control circuit is recommended before replacement.

Quality Assurance

This Vemo relay is built as an aftermarket replacement for the listed Volkswagen applications and is identified by OE-style reference numbers for fitment verification. Part number V15-71-0057 should be matched to the vehicle’s rain-sensor-equipped wiper system before installation.
