Vemo V15-99-2030 Engine Cooling Fan SwitchOE Quality 60-Day Returns
Part #: V15-99-2030

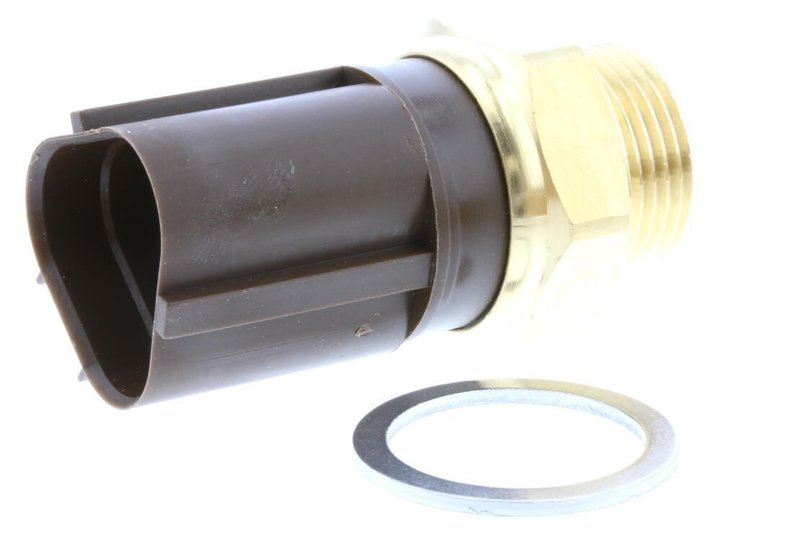

Vemo V15-99-2030 Engine Cooling Fan Switch

VEMO
14 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$39.23Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
VEMO
Fitment: Volkswagen, Golf
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST

Engine Cooling Fan Switch for Volkswagen Golf

The Vemo V15-99-2030 engine cooling fan switch is a threaded temperature switch for managing radiator fan operation in select Volkswagen Golf applications. It uses a 95/90 °C switch point and includes a seal for a secure installation at the cooling system connection.

Compatible with 2002-2003 Volkswagen Golf, this VEMO cooling fan switch is built around an M22x1.5 thread size and compact 32 mm x 56 mm dimensions. The VEMO line focuses on application-specific electrical and thermal control components for European vehicles.

Key Features

  • Part number: V15-99-2030
  • Engine cooling fan switch for thermal fan control
  • Switch point: 95 °C on / 90 °C off
  • M22x1.5 thread size
  • Includes seal
  • Compact housing dimensions: 32 mm height, 56 mm length, 32 mm width
  • Compatible with 2002-2003 Volkswagen Golf

Detailed Description

The Vemo V15-99-2030 is an engine cooling fan switch used to trigger radiator fan operation based on coolant temperature. In 2002-2003 Volkswagen Golf applications, it helps maintain proper fan cycling by closing at 95 °C and opening at 90 °C. The threaded M22x1.5 design and included seal support a direct replacement-style installation in the cooling system.

This part cross-references Dorman - HELP 82661 for the same application. The V15-99-2030 is also referenced by OE-style numbers including 1J0959481 and 6X0959481.

What It Helps Address

  • Radiator fan not switching on at the correct temperature
  • Cooling fan running continuously after engine warm-up
  • Temperature-related fan control faults
  • Overheating concerns caused by delayed fan activation
  • Intermittent cooling fan operation in Volkswagen Golf models

Installation Notes and Tips

Verify the thread size, connector style, and temperature range before installation. This switch uses a 2-pin connector and an M22x1.5 thread, so matching the original cooling system specification is important for proper operation. Inspect the sealing surface and confirm the seal seats correctly during installation.

Quality Assurance

Vemo supplies application-specific replacement components for European vehicle systems, including thermal and electrical control parts. Confirm fitment against the vehicle’s original part number and cooling fan switch specification before installation.

BrandVemo
Part NumberV15-99-2030
PositionVEMO
Height [mm]32
Length [mm]56
Packaging Depth [cm]3
Packaging height [cm]3,3
Packaging width [cm]5,8
Supplementary Article/Supplementary InfoWith seal
Switch point from [°C]95
Switch point to [°C]90
Switch Point [°C]95
Thread SizeM22x1,5
Weight [kg]0.071
Width [mm]32

This part fits 14 vehicles. Search below:

YearMakeModelSubmodelLitersCylindersPositionNotes
2003VolkswagenGolfGTI VR62.8LV6N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2003VolkswagenGolfGLS2.0LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2003VolkswagenGolfGL2.0LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2003VolkswagenGolfGLS1.9LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2003VolkswagenGolfGL1.9LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2003VolkswagenGolfGTI 20th Anniversary1.8LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2003VolkswagenGolfGTI 1.8T1.8LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGTI VR62.8LV6N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGLS2.0LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGL2.0LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGLS1.9LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGL1.9LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGTI 3371.8LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO
2002VolkswagenGolfGTI 1.8T1.8LL4N/AGrade: Aftermarket; Description: With Gasket; Thread Size: M22 x 1,5; Temperature Range (Celsius): 95-90 C; Plug (Connector): 2 Pins; Optional; VEMO

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

1J0 959 4811J09594811S37982671500276X0 959 4816X09594816ZT00783510180382030282661SRF071SW4075

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
