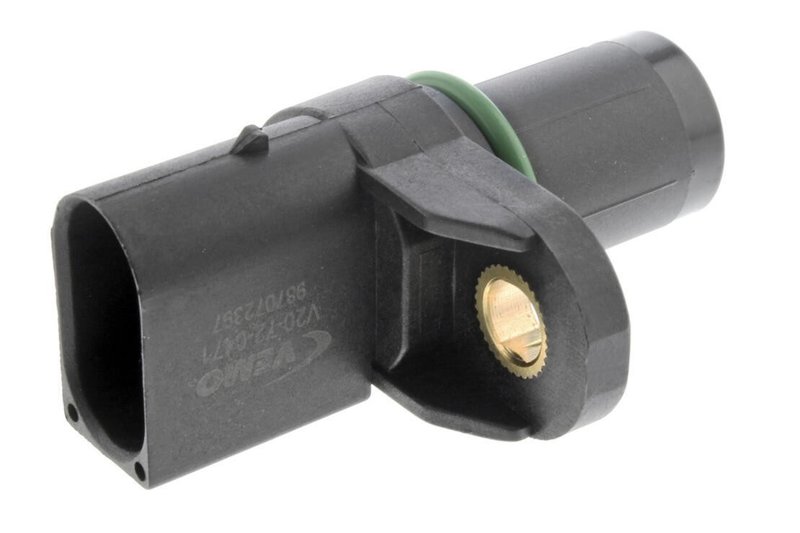

Vemo V20-72-0471 Engine Camshaft Position Sensor - Exhaust

VEMO Camshaft Position Sensor for BMW

The Vemo V20-72-0471 is an engine camshaft position sensor built with a 3-pin D-shape connector, Hall sensor design, and integrated seal ring. It is specified for 12V systems and is sized for a precise OE-style fit on supported BMW applications, including exhaust and intake positions where listed.

Key Features

• Hall sensor camshaft position sensor for accurate camshaft signal input
• 3 connectors / 3 poles with D-shape connector design
• 12V rated electrical specification
• Black housing with seal ring included
• Compact dimensions: 60.8 mm height, 41.1 mm length, 28 mm width, 28 mm fitting depth
• Single mounting bore for direct replacement-style installation

Detailed Description

VEMO V20-72-0471 is an engine camshaft position sensor for BMW models that require a Hall-effect signal sensor with a 3-pin connection. The VEMO brand line focuses on application-specific electronic components, and this part follows that approach with OE-style dimensions, a D-shape connector, and a seal ring for a secure installation interface. It is listed for a wide range of BMW 3 Series, 5 Series, 6 Series, 7 Series, X3, X5, Z3, Z4, and M5 applications, including exhaust-position listings on several models. This part cross-references Febi-Bilstein 23799 and Standard Ignition PC309 for the same application. Part number V20-72-0471 is also referenced in interchange listings for related aftermarket and OE-style replacements.

Vehicle Fitment

• Fits 2001-2006 BMW 325Ci, N/A
• Fits 2001-2006 BMW 330Ci, N/A
• Fits 2004-2006 BMW X3, N/A
• Fits 2006 BMW X3, Exhaust
• Fits 2001-2006 BMW X5, N/A
• Fits 2001-2005 BMW 325i, N/A
• Fits 2001-2005 BMW 325xi, N/A
• Fits 2001-2005 BMW 330i, N/A
• Fits 2001-2005 BMW 330xi, N/A
• Fits 2001-2005 BMW 525i, N/A
• Fits 2001-2005 BMW 530i, N/A
• Fits 2004-2005 BMW 545i, N/A
• Fits 2004-2005 BMW 645Ci, N/A
• Fits 2002-2005 BMW 745i, N/A
• Fits 2002-2005 BMW 745Li, N/A
• Fits 2003-2005 BMW Z4, N/A
• Fits 2001-2004 BMW 320i, Exhaust
• Fits 2000-2003 BMW M5, N/A
• Fits 1999-2002 BMW Z3, N/A
• Fits 2000 BMW 323Ci, N/A
• Fits 1999-2000 BMW 323i, N/A
• Fits 2000 BMW 328Ci, N/A
• Fits 1999-2000 BMW 328i, N/A
• Fits 1999-2000 BMW 528i, N/A

Common Repair Uses

• Restores camshaft signal input when the original sensor has failed
• Addresses hard-start or extended-crank conditions tied to cam signal loss
• Helps correct intermittent stalling or rough running related to camshaft timing input
• Supports repair of check engine light faults associated with camshaft position sensor circuits
• Replaces a worn sensor on BMW exhaust or intake applications where specified

Installation Notes and Quality

Confirm connector style, mounting bore, and sensor position before installation. This VEMO camshaft position sensor uses a 3-pin D-shape connector and includes a seal ring, so the mating surface should be clean and free of debris before fitting. Verify the application against the vehicle’s engine configuration and the listed exhaust or intake position where applicable. VEMO part number V20-72-0471 is built to match the listed electrical and dimensional requirements for the supported BMW applications.

Quality assurance is based on the published OE-style specifications, fitment data, and interchange references provided for this part.
