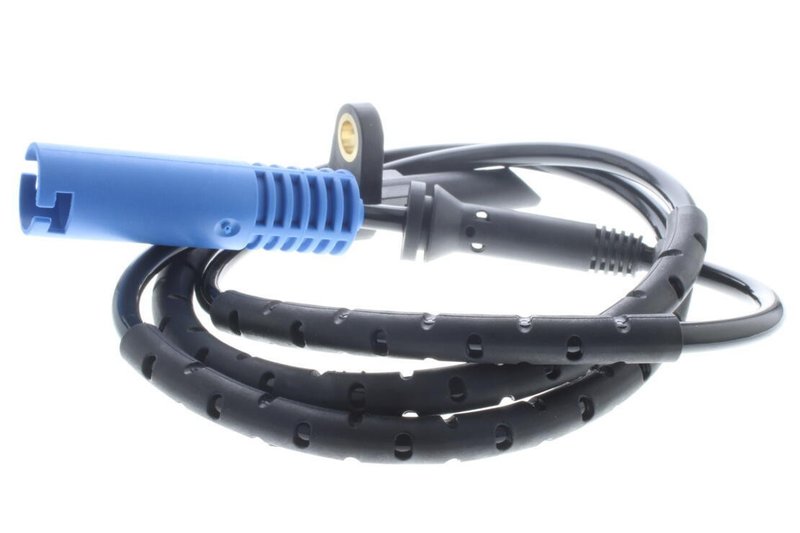

Vemo V20-72-5260 ABS Wheel Speed Sensor - Rear, Rear Left or Rear Right

ABS Wheel Speed Sensor for BMW Rear Fitment

Vemo V20-72-5260 is an active ABS wheel speed sensor for rear applications on select BMW xDrive and xi models. It is built for vehicles with ABS and uses a 2-pin, 2-pole connection with a 1010 mm sensor lead for the listed rear fitments.

Compatible With BMW 328i xDrive, 335i xDrive, 328xi, 335xi, 325xi, and 330xi rear positions, this VEMO sensor supports accurate wheel speed signal input for ABS-equipped braking systems. The V20-72-5260 part number is also referenced in OE-style replacement searches for BMW rear wheel speed sensor service.

Key Features

• Part type: ABS wheel speed sensor
• Sensor design: active sensor
• Vehicle system: for vehicles with ABS
• Electrical connection: 2 connectors, 2 poles
• Lead length: 1010 mm cable length listed
• Rated voltage: 12 V
• Compact sensor body dimensions: 24 mm height, 28 mm width
• Rear-position fitment for select BMW AWD models

Detailed Description

Vemo V20-72-5260 is an ABS wheel speed sensor engineered for rear axle applications on select BMW 3 Series xDrive and xi vehicles. It is listed for rear, rear left, and rear right positions depending on model year and configuration, including BMW 328i xDrive, 335i xDrive, 328xi, 335xi, 325xi, and 330xi. The sensor uses an active signal design and a 12-volt electrical specification, with a 1010 mm lead length and a 2-pin connector layout for the specified OE-style replacement applications. This part number, V20-72-5260, is commonly searched alongside BMW rear ABS sensor service and wheel speed sensor replacement.

This part cross-references Bosch 0986594575 and Standard Ignition ALS1845 for the same application.

What It Helps Address

• ABS warning light caused by a failed rear wheel speed sensor
• Intermittent wheel speed signal loss at the rear axle
• Brake system fault codes related to wheel speed input
• Traction control or stability control faults tied to ABS sensor data
• Uneven or erratic speed readings from a damaged rear sensor harness

Installation Notes and Tips

• Verify rear position and side-specific fitment before ordering; listings include rear, rear left, and rear right applications.
• Match the OE number 34526764859 against the vehicle application when confirming fitment.
• Inspect the wheel hub area, connector, and harness routing before installation.
• Clear stored ABS fault codes after replacement and confirm proper wheel speed signal operation.
• Check the connector count and lead length against the original sensor before installation.

Quality Assurance

VEMO V20-72-5260 is listed as an OEM-grade, Made in Germany replacement for the specified BMW rear ABS sensor applications. It is cataloged for direct-fit service on the confirmed BMW fitments shown above.
