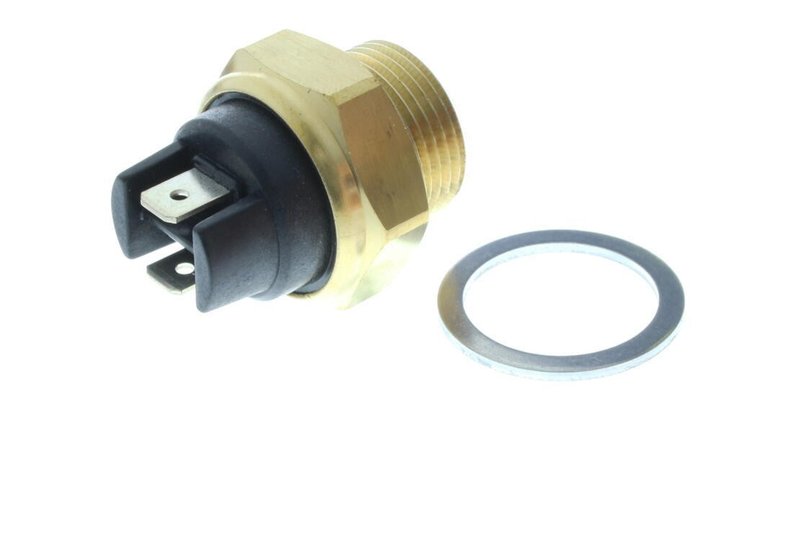

Vemo V25-99-1702 Engine Cooling Fan Switch
OE Quality 60-Day Returns
Vemo
VEMO

Vemo V25-99-1702 Engine Cooling Fan Switch

Brand Vemo V25-99-1702
Height [mm] 29
Length [mm] 42
Packaging Depth [cm] 6,8
Packaging height [cm] 6,7
Packaging width [cm] 4
Spanner Size 29
Switch Point [°C] 102
Switch point from [°C] 102
Switch point to [°C] 93
Thread Size M22x1,5
Weight [kg] 0.064
Width [mm] 31
Product line VEMO
Fits Land Rover · 35 vehicles

Temperature-activated switch. Turns the cooling fan on at 102°C and off at 93°C.

Threaded M22x1,5 fit. Sized for a secure, straightforward installation.

Compact design. Measures 42 mm long and 31 mm wide for a space-saving profile.

Cross-references 6 037 492, 6 077 897 and 77FB 8B607 A3D for the same application. See all 6.

$22.84Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $22.84
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cooling Fan Switch options

VEMO Engine Cooling Fan Switch Overview

The Vemo V25-99-1702 is an engine cooling fan switch for Land Rover cooling system service. It uses an M22x1.5 thread and a 2-pin connector application, with a switch point of 102°C and a switch-off range down to 93°C for temperature-controlled fan operation.

VEMO product line parts are built for OE-style replacement needs, with application-specific dimensions and connector details that matter when servicing the cooling circuit on a Land Rover Discovery, Defender 90, Defender 110, or Range Rover.

Key Features

  • Part number: V25-99-1702
  • Engine cooling fan switch for temperature-based fan control
  • Switch point: 102°C
  • Switch point to: 93°C
  • Thread size: M22x1.5
  • 2-pin connector application
  • Dimensions: 29 mm height, 42 mm length, 31 mm width
  • Cross-reference application support for OE-style replacement service

Detailed Description

This Vemo engine cooling fan switch is specified for Land Rover cooling system applications where the fan circuit must respond at a defined coolant temperature. The V25-99-1702 is listed for 1990-1998 Land Rover Range Rover, 1993 Land Rover Defender 110, 1994-1998 Land Rover Discovery, and 1994-1997 Land Rover Defender 90 applications with M22x1.5 thread size and 2-pin connector notes. The switch point of 102°C and switch-off range to 93°C support temperature-triggered fan operation in the original cooling strategy.

This part cross-references OE-style numbers such as PRC3505 and 6 037 492 for the same application. If you are searching for a Land Rover Discovery cooling fan switch, a Defender 90 engine cooling fan switch, or a Range Rover temperature switch by part number V25-99-1702, this listing matches the documented fitment and connector/thread specifications.

What It Helps Address

  • Cooling fan not switching on at the specified temperature
  • Fan cycling issues caused by a worn temperature switch
  • Incorrect coolant temperature control in the fan circuit
  • Replacement needs for damaged M22x1.5 threaded switch bodies
  • Electrical connection faults at the 2-pin fan switch interface

Installation Notes and Tips

Confirm the thread size, connector style, and temperature rating before installation. Match the existing M22x1.5 mounting point and verify the 2-pin connector layout on the vehicle harness. On Land Rover Discovery, Defender 90, Defender 110, and Range Rover cooling systems, compare the removed switch to V25-99-1702 dimensions and temperature specification before final assembly.

Quality Assurance

VEMO parts are cataloged with application-specific measurements and OE-reference data to support accurate replacement selection. Verify fitment against the vehicle’s original part number and cooling system specification before installation.

Related reading

This part fits 35 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
1998Land RoverDiscoveryLSE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1998Land RoverDiscoveryLE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1998Land RoverDiscovery50th Anniversary Edition——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDefender 90LE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDefender 90Base——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDiscoveryXD——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDiscoverySE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDiscoveryLSE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDiscoverySE74.0LV8N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1997Land RoverDiscoverySD4.0LV8N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1996Land RoverDiscoverySE7——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1996Land RoverDiscoverySE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1996Land RoverDiscoverySD——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1995Land RoverDefender 90Base——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1995Land RoverDiscoveryBase——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1995Land RoverRange RoverCounty LWB——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1995Land RoverRange RoverCounty Classic——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1995Land RoverRange Rover25th Anniversary Edition——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1994Land RoverDefender 90Base——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1994Land RoverDiscoveryBase——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1994Land RoverRange RoverCounty——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1994Land RoverRange RoverCounty LWB——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1993Land RoverDefender 110Base——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1993Land RoverRange RoverSport——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1993Land RoverRange RoverCounty——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1993Land RoverRange RoverCounty LWB——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1992Land RoverRange RoverLSE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1992Land RoverRange RoverCounty——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1992Land RoverRange RoverBase——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1991Land RoverRange RoverHunter——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1991Land RoverRange RoverGreat Divide——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1991Land RoverRange RoverCounty SE——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1991Land RoverRange RoverBase——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1990Land RoverRange RoverCounty——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
1990Land RoverRange RoverBase——N/AGrade: Aftermarket; Thread Size: M22X1,5; Temperature Range (Celsius): 102-93 C; Plug (Connector): 2 Pins; With OE No. PRC3505; VEMO
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
6 037 4926 077 89777FB 8B607 A3D92AB 8B607 AAPRC3366PRC3505
