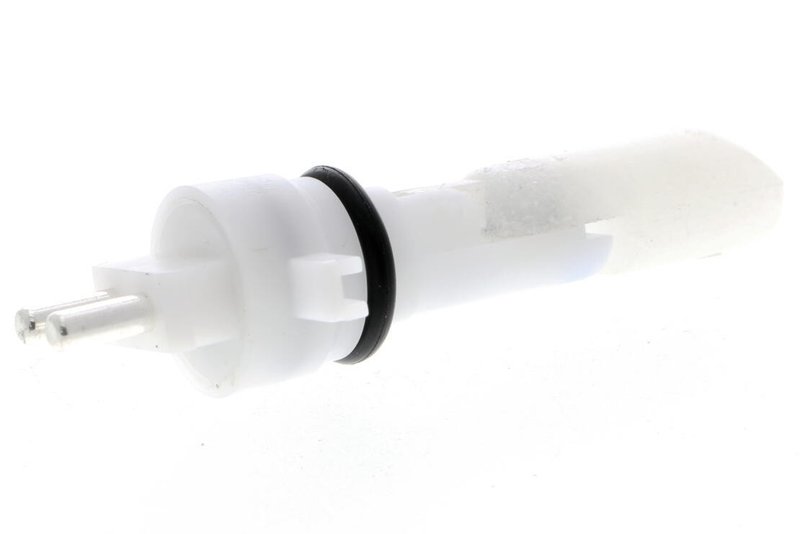

Vemo V30-72-0632 Engine Coolant Level Sensor
| Brand | Vemo V30-72-0632 |
|---|---|
| Height [mm] | 21.1 |
| Length [mm] | 89.75 |
| Number of Poles | 2 |
| Packaging Depth [cm] | 6,8 |
| Packaging height [cm] | 6,7 |
| Packaging width [cm] | 4 |
| Weight [kg] | 0.016 |
| Width [mm] | 35.85 |
| Product line | VEMO |
| Fits | Mercedes-Benz · 3 vehicles |
Coolant level sensing. Monitors coolant level with a 2-pole sensor design.
Compact sensor body. Slim 21.1 mm height and 35.85 mm width fit neatly in tight spaces.
Cross-references 124 540 00 44, 124 540 02 44 and 124 545 01 07 for the same application. See all 6.
Engine Coolant Level Sensor for Mercedes-Benz
The Vemo V30-72-0632 engine coolant level sensor monitors coolant level at the expansion tank and uses a 2-pin electrical connection with sealing for a secure fit. Built to match the listed OE application, it is a direct replacement for select 1995 Mercedes-Benz E300, E320, and E420 models.
Key Features
- Engine coolant level sensor for expansion tank mounting
- 2-pin design for the specified electrical connection
- Sealing included in the sensor design
- Dimensions: 89.75 mm length, 35.85 mm width, 21.1 mm height
- Lightweight construction at 0.016 kg
- Vemo part number V30-72-0632
Product Details
VEMO V30-72-0632 is an engine coolant level sensor for vehicles equipped with the matching OE-style setup at the expansion tank. The compact sensor body measures 89.75 mm long, 35.85 mm wide, and 21.1 mm high, with a 2-pole connector layout that aligns with the listed Mercedes-Benz cooling system application. This part cross-references OE numbers 124 540 02 44 and A 124 540 02 44 for the same application. It is listed for 1995 Mercedes-Benz E300, E320, and E420 models, making it a focused replacement choice for drivers searching for a Mercedes-Benz E300 coolant level sensor, Mercedes-Benz E320 expansion tank sensor, or Mercedes-Benz E420 coolant level sensor. The Vemo V30-72-0632 part number is also useful when verifying the correct replacement against the original component.
Common Issues This Sensor May Address
- Coolant level warning light staying on due to a faulty sensor
- Inaccurate coolant level readings at the expansion tank
- Intermittent warning messages caused by worn electrical contacts
- Replacement needs after connector or sealing wear
- OE-number matching for a failed original coolant level sensor
Installation Notes and Tips
Confirm the connector style, sealing arrangement, and OE reference before installation. This sensor is listed for mounting at the expansion tank on the specified Mercedes-Benz applications, so compare the original part number and physical dimensions to the removed unit before fitting. Always inspect the coolant reservoir and electrical connector for damage or corrosion during replacement.
Quality Assurance
VEMO parts are cataloged with OE-reference fitment data to support accurate replacement selection. Verify the application against the vehicle’s original coolant level sensor and OE number before installation. Part number V30-72-0632 is listed for direct application matching on the specified Mercedes-Benz models.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1995 | Mercedes-Benz | E300 | 3.0L | L6 | DIESEL | N/A | Grade: Aftermarket; Description: 2 pins; with sealing; At Expansion Tank; With OE No. 1245400244; VEMO |
| 1995 | Mercedes-Benz | E320 | 3.2L | L6 | — | N/A | Grade: Aftermarket; Description: 2 pins; with sealing; At Expansion Tank; With OE No. 1245400244; VEMO |
| 1995 | Mercedes-Benz | E420 | 4.2L | V8 | — | N/A | Grade: Aftermarket; Description: 2 pins; with sealing; At Expansion Tank; With OE No. 1245400244; VEMO |
