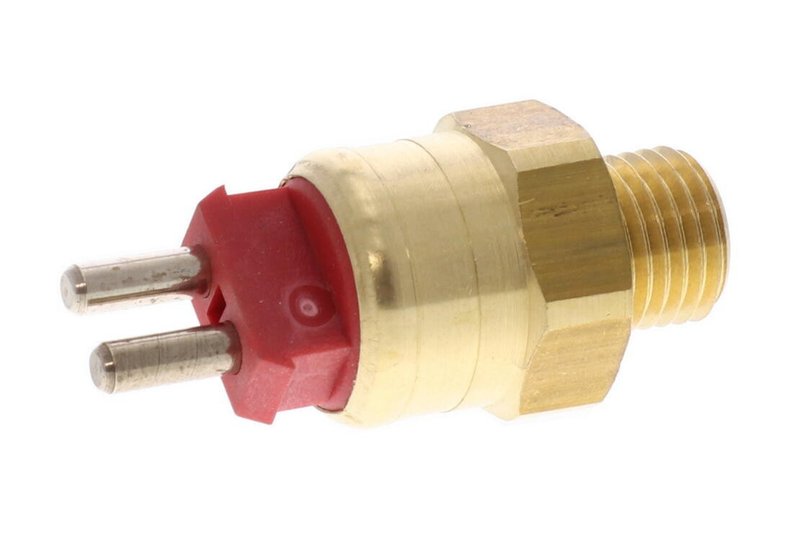

Vemo V30-99-2250 Engine Coolant Temperature Sender

Engine Coolant Temperature Sender for Mercedes-Benz

The Vemo V30-99-2250 engine coolant temperature sender provides temperature-based switching for the cooling system on select Mercedes-Benz applications. It is specified with an M14x1.5 thread, a 95-100°C switch range, and compact dimensions for direct replacement service.

Compatible with 1991-1993 Mercedes-Benz 190E, this VEMO sender is built for vehicles that use a 2-pin coolant temperature switch with a red housing specification. The V30-99-2250 is a practical OE-style replacement for temperature signal control in the cooling circuit.

Key Features

• Engine coolant temperature sender for cooling system temperature switching
• Thread size: M14x1.5
• Switch point: 95°C, with switching range from 100°C to 95°C
• 2-pin connector specification noted in fitment details
• Compact size: 50 mm height, 22 mm length, 22 mm width
• Fits 1991-1993 Mercedes-Benz 190E
• Vemo part number V30-99-2250 for catalog and service matching

Product Details

VEMO focuses on replacement electrical and thermal management components for European vehicles, and this coolant temperature sender follows that approach with application-specific thread sizing and switch calibration. The V30-99-2250 is intended for Mercedes-Benz 190E models from 1991 through 1993 where the cooling system uses the listed M14x1.5 threaded sender and 2-pin connection. This part number, V30-99-2250, is also useful when cross-checking service records or ordering by catalog reference.

This part cross-references Dorman - HELP 82649 and Four Seasons 75169 for the same application.

What It Helps Address

• Incorrect coolant temperature signal to the cooling system circuit
• Temperature switch operation outside the 95-100°C range
• Faulty sender readings on Mercedes-Benz 190E cooling system service
• Replacement needs for worn or aging temperature sender threads and terminals
• Catalog matching for V30-99-2250 replacement identification

Installation Notes and Tips

Verify the thread size, connector style, and switch point before installation. Confirm the vehicle uses an M14x1.5 sender with the specified 2-pin configuration and temperature range. On 1991-1993 Mercedes-Benz 190E applications, compare the original unit to V30-99-2250 before removal to ensure the replacement matches the cooling system specification.

Quality Assurance

Vemo VEMO replacement parts are cataloged for application-specific fitment and dimensional accuracy. This sender is listed with defined switch points, connector requirements, and physical measurements to support correct parts selection for Mercedes-Benz 190E cooling system service.
