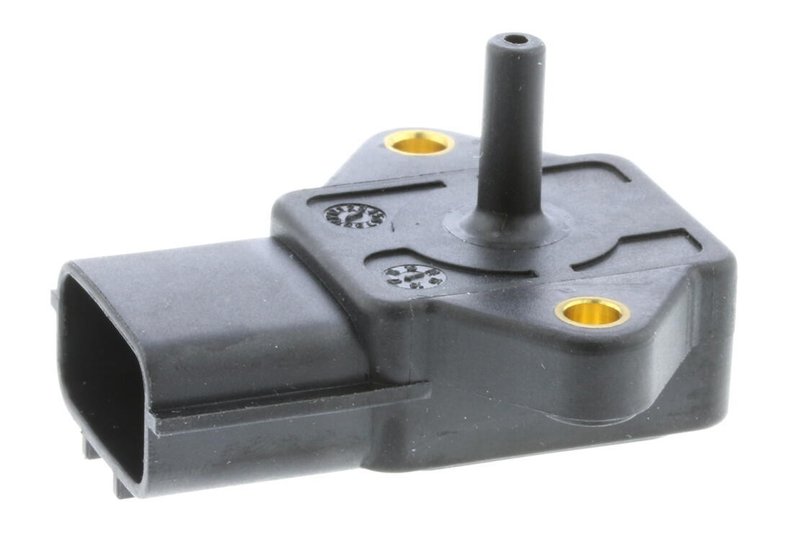

Vemo V32-72-0093 Manifold Absolute Pressure Sensor

Manifold Absolute Pressure Sensor for Mazda

The Vemo V32-72-0093 is a 3-pole manifold absolute pressure sensor built for precise intake manifold pressure monitoring in select Mazda applications. With compact dimensions of 48.6 mm length, 45.6 mm width, and 33.8 mm height, it is sized for direct replacement use where OE-style packaging and connector layout matter.

Compatible With Mazda MPV and Mazda Miata applications that use OE number BP4W18211, this VEMO sensor supports accurate engine load signal input for emission control and drivability systems. The V32-72-0093 is also cross-referenced to Standard Ignition AS149 for the same application.

Key Features

• Manifold Absolute Pressure Sensor for emission control and engine management
• 3-pole electrical connection
• Compact housing dimensions: 48.6 mm length, 45.6 mm width, 33.8 mm height
• OE reference: BP4W18211
• VEMO brand line product for Mazda MPV and Mazda Miata fitments
• Cross-reference part number: Standard Ignition AS149

Detailed Description

Vemo V32-72-0093 is an OE-style manifold absolute pressure sensor used to measure intake manifold pressure and send that data to the engine control system. On Mazda MPV and Mazda Miata models, this signal helps the ECU calculate engine load, which affects fuel delivery, ignition timing, and emissions-related operation. The VEMO line identifies this part as an aftermarket replacement aligned to OE number BP4W18211.

Fits 2000-2006 Mazda MPV, N/A; Fits 1999-2000 Mazda Miata, N/A; Fits 2001-2003 Mazda Miata, N/A; Fits 2004-2005 Mazda Miata, N/A. The V32-72-0093 is a direct-fit option for Mazda MPV and Mazda Miata owners replacing a failed MAP sensor while maintaining the original sensor interface and mounting footprint.

What It Helps Solve

• Erratic idle caused by inaccurate manifold pressure readings
• Hesitation or poor throttle response from incorrect load data
• Check engine light conditions related to MAP sensor performance
• Fuel mixture issues tied to faulty intake pressure input
• Emission control faults on Mazda MPV and Mazda Miata applications

Installation Notes and Tips

Verify the OE number BP4W18211 and confirm the 3-pole connector before installation. Compare the sensor body dimensions and mounting location to the original unit on the intake side where applicable. Clear diagnostic trouble codes after installation and confirm stable idle and throttle response during a road test.

Quality Assurance

VEMO parts are cataloged as aftermarket replacements for OE applications, with this sensor matched to the listed Mazda fitments and OE reference for application accuracy.
