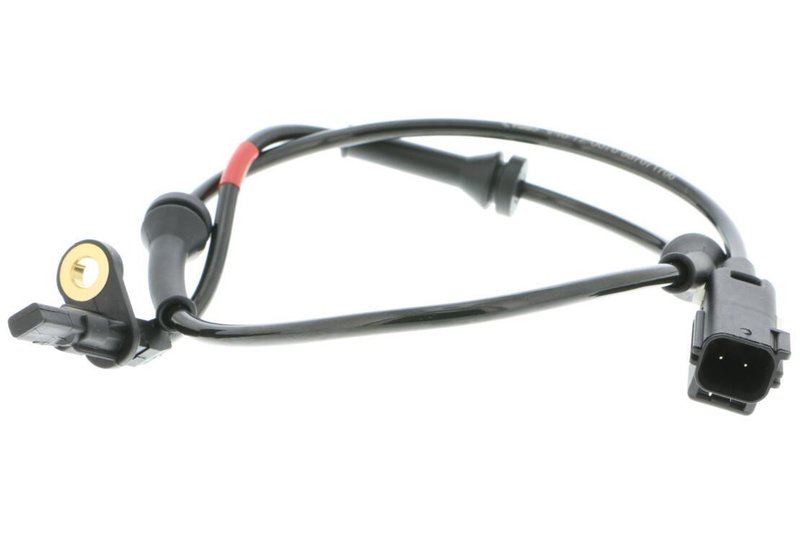

Vemo V48-72-0070 ABS Wheel Speed Sensor - Rear

ABS Wheel Speed Sensor for Rear Fitment

This Vemo ABS wheel speed sensor is built for rear-wheel ABS monitoring on select Land Rover Range Rover Evoque models. It uses a 12V electrical rating and a 780 mm lead length to match the vehicle-side routing requirements for the listed applications.

Key Features

• Part type: ABS wheel speed sensor for vehicles with ABS
• Rear position fitment for select Land Rover Range Rover Evoque applications
• 12V rated voltage for standard automotive electrical systems
• 780 mm sensor lead length for rear harness routing
• Compact sensor body dimensions: 30.7 mm height and 19.75 mm width
• Vemo part number V48-72-0070 for direct catalog identification

Product Details

VEMO V48-72-0070 is an ABS wheel speed sensor designed for rear installation on select 2012-2016 Land Rover Range Rover Evoque models. It is listed for vehicles with ABS and is referenced for rear applications on 2012-2013 models with Automated Parking System, 2014-2015 models that include the ABS wheel speed sensor wire harness, and 2016 models through chassis/VIN GH161138. This part cross-references LR024208 and LR066868 for the same application. The VEMO product line is used for OE-style replacement components across braking and vehicle electronics categories, with this sensor focused on accurate wheel-speed signal input for ABS operation.

Common Issues This Sensor Can Address

• ABS warning light triggered by a faulty rear wheel speed signal
• Intermittent traction control or stability control faults
• Loss of wheel speed data from the rear axle
• Erratic ABS system behavior during braking events
• Diagnostic trouble codes related to rear wheel speed sensor performance

Installation Notes

Confirm rear position, chassis/VIN breakpoints, and model year before ordering. Compare the existing connector, lead length, and sensor mounting points to the original part on the vehicle. For 2012-2013 Range Rover Evoque applications, verify Automated Parking System coverage; for 2014-2015 applications, verify the ABS wheel speed sensor wire harness note; for 2016 applications, verify fitment through chassis/VIN GH161138. After installation, clear stored ABS fault codes and road test the vehicle to confirm proper wheel-speed signal operation.

Quality Assurance

Vemo V48-72-0070 is cataloged with application-specific fitment data and dimensional specifications to support accurate replacement selection for the rear ABS system on the listed Land Rover Range Rover Evoque models.
