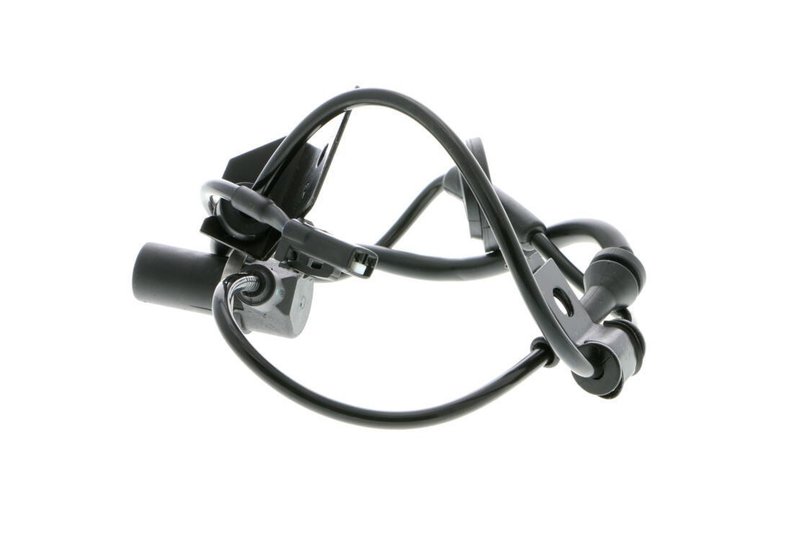

Vemo V52-72-0046 ABS Wheel Speed Sensor - Front Right

Brand Vemo V52-72-0046
Position Front Right
Braking / Drive Dynamics for vehicles with ABS
Height [mm] 50
Length [mm] 90
Packaging Depth [cm] 9
Packaging Material iSP - Foil
Packaging height [cm] 5
Packaging width [cm] 9
Rated Voltage [V] 12
Weight [kg] 0.146
Width [mm] 90
Product line VEMO
Fits Hyundai · 19 vehicles

ABS sensor. Monitors wheel speed for ABS-equipped braking systems.

12-volt operation. Built for standard automotive electrical systems.

Foil packaging. Protected in iSP foil packaging for handling and storage.

Cross-references Standard Ignition ALS599, 5S7728 and 95620-26000 for the same application. See all 11.

$50.04Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $50.04
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

ABS Wheel Speed Sensor for Hyundai Santa Fe

The Vemo V52-72-0046 ABS wheel speed sensor is a 12-volt braking and drive dynamics component for vehicles with ABS. It is built for the front right position and supports accurate wheel speed signal input for the braking system on select Hyundai Santa Fe models.

Use this VEMO sensor when you need a direct-fit replacement for a front right ABS wheel speed sensor on a Hyundai Santa Fe. The compact sensor measures 90 mm in length, 90 mm in width, and 50 mm in height, with a lightweight 0.146 kg design for straightforward handling during service.

Key Features

  • ABS wheel speed sensor for vehicles with ABS
  • 12 V rated electrical design
  • Front right position application
  • Compact dimensions: 90 mm length, 90 mm width, 50 mm height
  • Lightweight construction at 0.146 kg
  • Packaged in foil material for protection during storage and handling

Fitment Details

  • Fits 2006 Hyundai Santa Fe, front right.
  • Fits 2001-2005 Hyundai Santa Fe, front right. Notes: ABS wheel speed sensor required for Headlight Washer Pump installation.

This part cross-references Standard Ignition ALS599 for the same application. It also cross-references OE-style part numbers including 95620-26000 and 95620-26010 for related Hyundai Santa Fe front right ABS sensor applications.

What This Sensor Helps Address

  • ABS warning light caused by a failed front right wheel speed sensor
  • Erratic or missing wheel speed signal input to the ABS system
  • Brake control issues related to inaccurate wheel speed data
  • Service replacement needs on Hyundai Santa Fe models with ABS
  • Front right sensor failure affecting braking and drive dynamics monitoring

Installation Notes

Confirm the vehicle year, model, and front right position before ordering. For 2001-2005 Hyundai Santa Fe applications, the notes specify that an ABS wheel speed sensor is required for Headlight Washer Pump installation. Verify connector routing, mounting points, and sensor seating against the original part before installation.

Quality Assurance

Vemo VEMO parts are cataloged as application-specific replacement components for braking and drive dynamics systems. Part number V52-72-0046 is listed for confirmed Hyundai Santa Fe fitment at the front right position.

This part fits 19 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelLitersCylindersPositionNotes
2006HyundaiSanta Fe—3.5LV6Front RightGrade: Aftermarket; To 02/08/2006; VEMO
2006HyundaiSanta Fe—2.7LV6Front RightGrade: Aftermarket; To 02/08/2006; VEMO
2006HyundaiSanta Fe—2.4LL4Front RightGrade: Aftermarket; To 02/08/2006; VEMO
2005HyundaiSanta Fe—3.5LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2005HyundaiSanta Fe—2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2005HyundaiSanta Fe—2.4LL4Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2004HyundaiSanta Fe—3.5LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2004HyundaiSanta Fe—2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2004HyundaiSanta Fe—2.4LL4Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2003HyundaiSanta Fe—3.5LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2003HyundaiSanta Fe—2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2003HyundaiSanta Fe—2.4LL4Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2002HyundaiSanta FeLX2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2002HyundaiSanta FeGLS2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2002HyundaiSanta FeBase2.4LL4Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2001HyundaiSanta FeLX2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2001HyundaiSanta FeGLS2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2001HyundaiSanta FeGL2.7LV6Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
2001HyundaiSanta FeGL2.4LL4Front RightABS wheel speed sensor required for Headlight Washer Pump installation.; VEMO
Directly replaces or cross-references 11 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Standard Ignition — ALS5995S772895620-2600095620-260104106308440229701325200138J5010519J5910530SU9215
