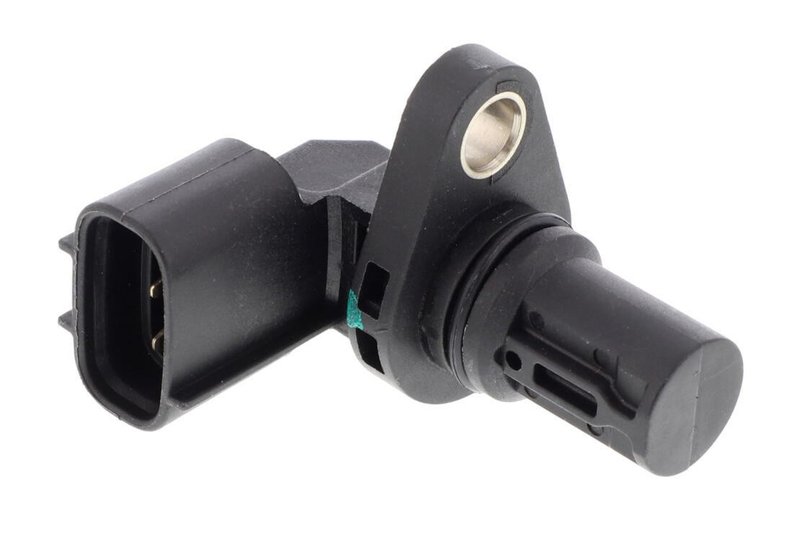

Vemo V64-72-0040 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor Overview

VEMO camshaft position sensor V64-72-0040 is an OE-style ignition sensor for select Suzuki applications. It is built with a 3-pin oval connector and 12-volt rating to match the original sensor interface and signal requirements.

Key Features

• OE-style engine camshaft position sensor for direct replacement use.
• Oval connector with 3 connectors and 3 poles for the correct electrical interface.
• Compact black housing with 40 mm length, 70 mm width, and 50 mm height.
• 12 V rated sensor with 27 mm fitting depth for application-specific installation.
• VEMO part number V64-72-0040 for catalog and service reference.

Fitment Details

Compatible with select Suzuki models, including Fits 2007-2013 Suzuki SX4, N/A; Fits 2006-2012 Suzuki Grand Vitara, N/A; and Fits 2010-2012 Suzuki Kizashi, N/A. This part cross-references Monroe Shocks & Struts (e.g., 33220-63J00, J5T32171) for the same application.

What It Is Used For

• Restoring camshaft position signal input to the engine control system.
• Addressing hard-start or no-start conditions related to cam timing signal loss.
• Correcting intermittent stalling or rough running caused by sensor signal faults.
• Replacing a worn or failed original camshaft position sensor.

Installation Notes and Tips

Verify connector shape, pole count, and mounting depth before installation. Compare the old sensor to V64-72-0040 to confirm the housing dimensions and electrical connection match the original part. Use the vehicle service procedure for sensor removal and installation.

Quality Assurance

VEMO supplies OE-style replacement ignition sensors for service applications, and this part is referenced to OE-grade fitment data for the listed Suzuki models.
