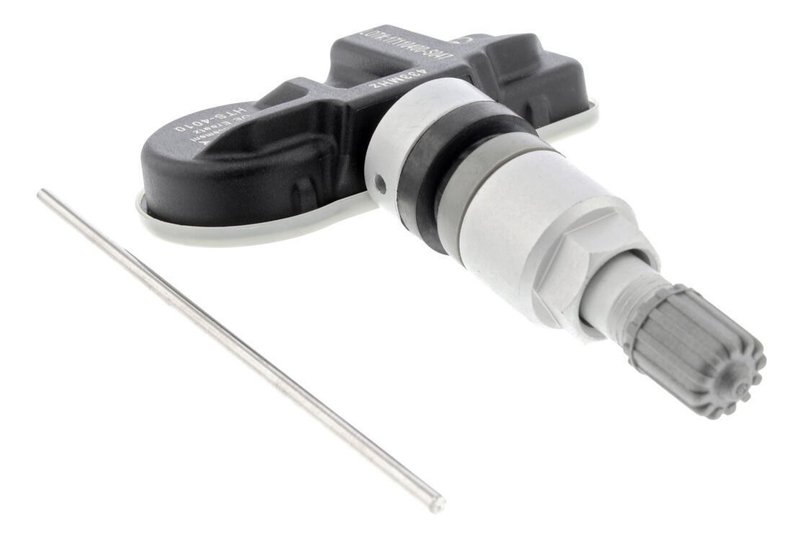

Vemo V70-72-0293 Tire Pressure Monitoring System Sensor
| Brand | Vemo V70-72-0293 |
|---|---|
| Colour | Silver |
| Frequency Range [MHz] | 433 |
| Height [mm] | 70 |
| Length [mm] | 17 |
| Mounting Type | Bolted |
| Packaging Depth [cm] | 6,8 |
| Packaging height [cm] | 6,7 |
| Packaging width [cm] | 4 |
| Recommended replace interval [km] | 160000 |
| Recommended replace interval [years] | 5 |
| Supplementary Article/Info 2 | with screw |
| Tightening Torque [Nm] | 4 |
| Valve stem material | Aluminium |
| Valve type | Air Valve |
| Vehicle Equipment | for vehicles with tyre pressure control system |
| Weight [kg] | 0.025 |
| Width [mm] | 45 |
| Product line | VEMO |
| Fits | Toyota · 1 vehicle |
Expert kit. All needed parts are packed together in one box.
Bolted mounting. Includes a screw for secure installation.
Aluminium valve stem. Lightweight construction with an air valve design.
Cross-references 28103-CA101, 42607-02030 and 42607-02031 for the same application. See all 6.
VEMO TPMS Sensor for Toyota RAV4
The Vemo V70-72-0293 is a tire pressure monitoring system sensor built for vehicles with tyre pressure control systems. It uses a 433 MHz frequency, bolted mounting, and an aluminium valve stem to support direct tire pressure monitoring on the 2017 Toyota RAV4 application listed below.
VEMO Expert Kits+ groups the needed parts into one box for a streamlined replacement process. This VEMO V70-72-0293 TPMS sensor is specified with a silver finish, air valve design, and screw attachment, making it a direct-fit service part for the Toyota RAV4 TPMS application shown here.
- Part number: V70-72-0293
- Brand line: VEMO Expert Kits+
- 433 MHz TPMS sensor frequency
- Bolted mounting type with screw attachment
- Aluminium valve stem with air valve design
- Tightening torque: 4 Nm
- Recommended replacement interval: 160,000 km or 5 years
- Vehicle equipment: for vehicles with tyre pressure control system
Detailed Product Information
Built for the 2017 Toyota RAV4, this TPMS sensor supports direct tire pressure monitoring where the vehicle uses a 433 MHz system. The bolted design and aluminium valve stem match the listed OE-style application, while the compact sensor body measures 70 mm in height, 45 mm in width, and 17 mm in length. The V70-72-0293 is also referenced for Toyota RAV4 service work where OE number 4260742021 is listed in the fitment notes.
This part cross-references Toyota OE-style numbers such as 42607-42021 and 42607-42020 for the same application.
Vehicle Fitment
Compatible with 2017 Toyota RAV4, N/A. Fits 2017 Toyota RAV4, N/A.
What This TPMS Sensor Helps Address
- TPMS warning light triggered by a failed sensor
- Inaccurate tire pressure readings from an aging sensor
- Loss of sensor communication at 433 MHz
- Service replacement for a bolted-valve TPMS setup
- Replacement needs on a 2017 Toyota RAV4 with tyre pressure control system
Installation Notes and Tips
Install using the specified bolted mounting method and tighten to 4 Nm. Confirm the vehicle uses a 433 MHz TPMS system before replacement, and verify the valve stem and sensor orientation match the original setup. The recommended replacement interval is 160,000 km or 5 years, which is useful guidance when servicing aging TPMS components.
Quality Assurance
VEMO supplies OE-style replacement parts for vehicle service applications, and the Expert Kits+ line is organized to simplify parts selection for the listed application. Always confirm part number V70-72-0293 against the vehicle’s original TPMS specification before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Toyota | RAV4 | 2.5L | L4 | N/A | Grade: Aftermarket; Japan Product Parts; With OE No. 4260742021; VEMO |
| No rows match your filter. | ||||||
