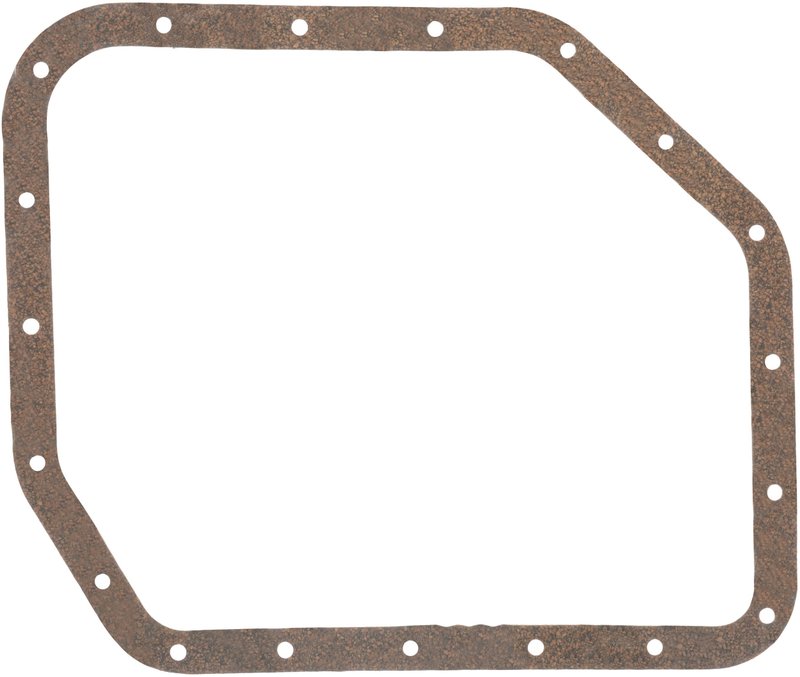

Victor Reinz 10-10480-01 Transmission Oil Pan Gasket

Victor Reinz Transmission Oil Pan Gasket 10-10480-01

Restore a reliable seal at the transmission pan with the Victor Reinz 10-10480-01 transmission oil pan gasket. This cork rubber gasket is built for OE-style sealing performance and is a direct fit for a wide range of Toyota, Scion, and Pontiac applications, including Corolla, Matrix, Yaris, xD, xA, xB, Vibe, Celica, and Echo models with the 19-bolt pan pattern.

Key Features

• Cork rubber material for dependable sealing at the transmission pan rail
• Brown gasket with 0.0880-inch thickness for a precise pan-to-case interface
• 19 bolt hole and 19 mounting hole layout for confirmed 19-bolt applications
• OE-quality gasket technology from Victor Reinz, an original equipment supplier
• Broad coverage for foreign and domestic vehicles with direct-fit application support
• Part number 10-10480-01 for accurate ordering and service matching

Detailed Description

Victor Reinz 10-10480-01 is a transmission oil pan gasket engineered for service work where a clean, stable seal matters. The cork rubber construction helps conform to the pan surface and transmission case, while the 12.9370-inch length and 11.1250-inch width support the specified 19-bolt pattern used on many Toyota Corolla, Toyota Matrix, and Toyota Yaris applications. This gasket is also listed for Scion xD, Scion xA, Scion xB, Pontiac Vibe, Toyota Celica, and Toyota Echo models with the same bolt count. This part cross-references Monroe Shocks & Struts (e.g., 88971820, TOS18720) for the same application.

What This Gasket Helps Address

• Transmission fluid seepage from a worn or flattened pan gasket
• Leaks after transmission service or fluid pan removal
• Poor sealing caused by age, heat cycling, or gasket compression
• Drips around the pan rail on 19-bolt Toyota, Scion, and Pontiac applications
• Repeat service issues when the original gasket no longer holds a consistent seal

Installation Notes and Tips

Verify the transmission pan bolt count and gasket shape before installation. Clean the pan rail and transmission mating surface thoroughly, and inspect the pan for distortion or damage that could affect sealing. Use the correct torque sequence for the pan bolts to help the gasket seat evenly. Confirm fitment by vehicle year, make, model, and 19-bolt configuration before ordering. Fits 2009-2016 Toyota Corolla, N/A; Fits 2009-2014 Scion xD, N/A; Fits 2009-2014 Toyota Matrix, N/A; Fits 2003-2006 Toyota Matrix, N/A; Fits 2006-2014 Toyota Yaris, N/A; Fits 2009-2010 Pontiac Vibe, N/A; Fits 2003-2006 Pontiac Vibe, N/A; Fits 2004-2006 Scion xA, N/A; Fits 2004-2006 Scion xB, N/A; Fits 2000-2005 Toyota Celica, N/A; Fits 2000-2005 Toyota Echo, N/A.

Quality Assurance

Victor Reinz supplies OE-level sealing components and gasket engineering used by manufacturers worldwide. The 10-10480-01 is built to match the specified application requirements for dependable transmission pan sealing on supported Toyota, Scion, and Pontiac vehicles.
