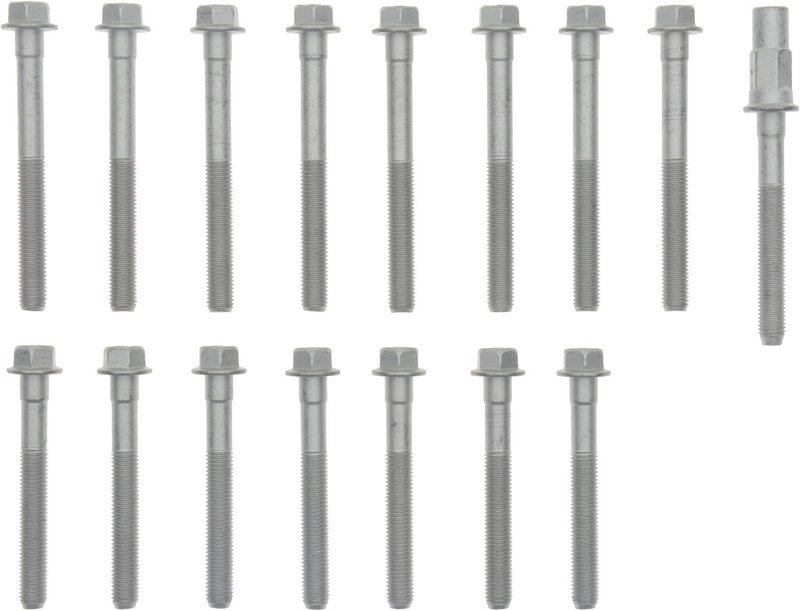

Victor Reinz 14-10069-01 Engine Cylinder Head Bolt Set

Victor Reinz Cylinder Head Bolt Set

Victor Reinz 14-10069-01 is an engine cylinder head bolt set for late-model GM applications that require torque-to-yield replacement hardware. These steel head bolts are specified for cylinder head service where proper clamping force and head gasket sealing are critical.

Compatible with select Chevrolet Equinox, Pontiac Torrent, Buick Rendezvous, and related GM vehicles, this part number 14-10069-01 is used when the original head bolts should not be reused after cylinder head removal.

Key Features

• Steel construction for cylinder head fastening applications
• Replacement hardware for torque-to-yield head bolt service
• Supports proper cylinder head clamping during engine repair
• Designed for select GM engines across multiple Buick, Chevrolet, Pontiac, Oldsmobile, and Saturn models
• Victor Reinz part number 14-10069-01

Detailed Description

Victor Reinz 14-10069-01 is an engine cylinder head bolt set made for applications where factory torque-to-yield bolts must be replaced during head gasket or cylinder head service. TTY head bolts are engineered to stretch during tightening, which helps maintain sealing force, but that same stretch means they should not be reused after removal. This steel replacement set is intended for those service procedures on a wide range of GM vehicles, including Chevrolet Equinox, Pontiac Torrent, and Buick Rendezvous applications.

This part cross-references MAHLE GS33377 for the same application. When servicing a Chevrolet Impala, Pontiac Grand Prix, or Buick Century with a cylinder head repair, verify engine-specific requirements before installation.

Common Repair Uses

• Head gasket replacement after cylinder head removal
• Repair of leaking combustion sealing at the cylinder head
• Service work involving stretched or previously torqued head bolts
• Engine rebuilds requiring new cylinder head fasteners
• Restoration of proper head clamping force on GM engines

Installation Notes

Always follow the factory tightening sequence, torque values, and angle specifications for the exact engine code. Clean the bolt holes and mating surfaces before assembly, and confirm that the cylinder head and gasket surfaces are within specification. Because torque-to-yield fasteners are designed for one-time use, replace the original bolts during reassembly rather than reusing them.

Quality Assurance

Victor Reinz is a recognized name in engine sealing and gasket service parts. This cylinder head bolt set is built for engine repair applications where correct fastener performance is required for reliable head gasket sealing.
