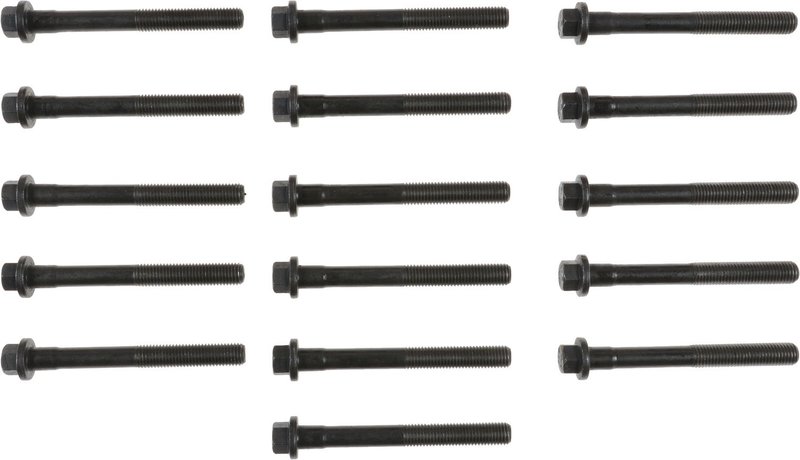

Victor Reinz 14-10102-01 Engine Cylinder Head Bolt Set

Victor Reinz 14-10102-01 Cylinder Head Bolt Set

Victor Reinz 14-10102-01 is an engine cylinder head bolt set for Ford, Mazda, and Mercury applications that require replacement head bolts during service. Built from steel with an 11 mm thread diameter, 100 mm length, and 13 mm bolt head size, it supports a secure cylinder head installation where proper clamping force is critical.

Key Features

• Steel construction for engine hardware applications
• 11 mm thread diameter for the listed fitments
• 100 mm length and 13 mm bolt head size
• Designed for cylinder head installation service on late-model engines using torque-to-yield fasteners
• Direct replacement option for Ford Ranger, Taurus, Windstar, Mazda B3000, and Mercury Sable applications
• Part number 14-10102-01 for catalog lookup and ordering

Detailed Description

Victor Reinz 14-10102-01 is specified for cylinder head service where the original fasteners are torque-to-yield and should not be reused after removal. These bolts are used to help maintain the clamping force needed for a proper head gasket seal during engine repair. This part cross-references MAHLE GS33220 for the same application. Vehicle coverage includes 1986-1999 Ford Taurus, 1991-1999 Ford Ranger, 1995-1999 Ford Windstar, 1994-1999 Mazda B3000, and 1986-1997 Mercury Sable, along with additional Ford and Mercury applications listed below.

What This Part Helps Address

• Head gasket sealing issues after cylinder head removal
• Replacement of stretched torque-to-yield head bolts
• Loss of proper cylinder head clamping force
• Fastener failure risk from reusing factory TTY bolts
• Engine repair needs on Ford Ranger, Taurus, and Windstar platforms

Installation Notes and Tips

• Confirm engine code and exact application before installation.
• Replace torque-to-yield head bolts rather than reusing removed fasteners.
• Follow the factory tightening sequence and torque-angle procedure for the engine.
• Inspect the cylinder head and gasket surfaces before assembly.
• Fits 1998-1999 Ford Ranger, N/A, to 07/13/1998; Fits 1998-1999 Ford Taurus, N/A, to 07/13/1998; Fits 1998-1999 Ford Windstar, N/A, to 07/13/1998; Fits 1998-1999 Mazda B3000, N/A, to 07/13/1998; Fits 1998-1999 Mercury Sable, N/A, to 07/13/1998.
• Fits 1986-1997 Ford Aerostar, N/A; Fits 1991-1997 Ford Ranger, N/A; Fits 1991-1997 Ford Taurus, N/A; Fits 1995-1997 Ford Windstar, N/A; Fits 1994-1997 Mazda B3000, N/A; Fits 1996-1997 Mercury Sable, N/A; Fits 1986-1995 Mercury Sable, N/A; Fits 1992-1994 Ford Tempo, N/A; Fits 1992-1994 Mercury Topaz, N/A; Fits 1990-1992 Ford Probe, N/A; Fits 1986-1990 Ford Taurus, N/A.

Quality Assurance

Victor Reinz engine hardware is built for professional repair use, with specifications that match the listed thread diameter, length, and head size for the confirmed applications. Part number 14-10102-01 should be verified against the vehicle’s model year and engine service requirements before installation.
