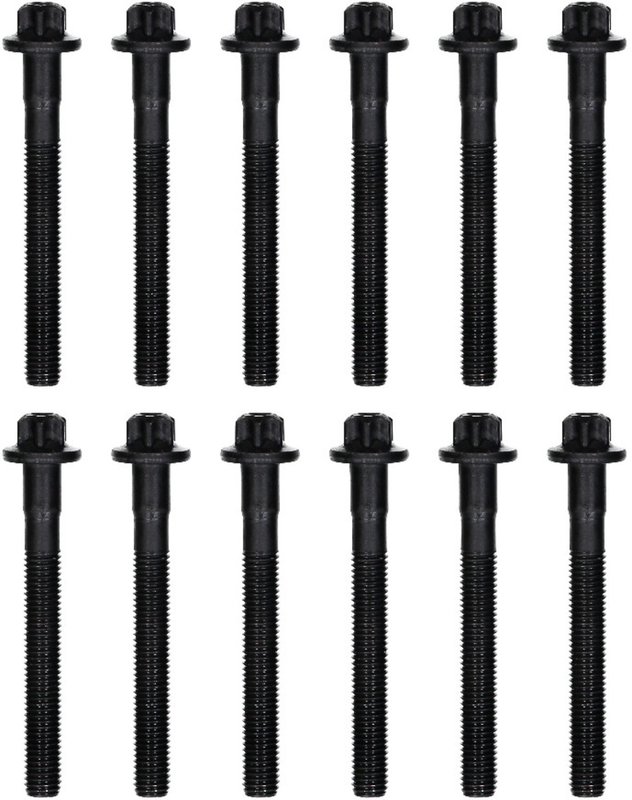

Victor Reinz 14-32109-02 Engine Cylinder Head Bolt Set

Victor Reinz 14-32109-02 Cylinder Head Bolt Set

Victor Reinz 14-32109-02 is an engine cylinder head bolt set for late-model diesel applications that require torque-to-yield replacement hardware. These black, star-drive head bolts are specified with a 12.000 mm thread diameter, 3.9740 length, and 2.8540 minimum length for proper cylinder head clamping during service.

Key Features

• Engine cylinder head bolt set for cylinder head installation service
• Torque-to-yield replacement hardware for applications that use TTY fasteners
• Black finish with star-drive head design
• 12.000 mm thread diameter
• Length: 3.9740; minimum length: 2.8540
• Victor Reinz part number 14-32109-02

Product Details

When servicing the cylinder head on a 2003-2006 Dodge Sprinter 2500 or 2003-2006 Dodge Sprinter 3500, the correct head bolts matter for gasket sealing and fastener retention. Victor Reinz 14-32109-02 is built for engines that use torque-to-yield head bolts, where the fastener stretches during tightening and should not be reused after removal. This makes it a direct replacement choice for Dodge Sprinter 2500 and Dodge Sprinter 3500 cylinder head work, especially when restoring proper clamping force after head gasket service. This part cross-references MAHLE GS33422 for the same application.

What It Helps Address

• Head gasket sealing issues caused by reused torque-to-yield bolts
• Loss of cylinder head clamping force after teardown
• Fastener stretch concerns during diesel head service
• Improper head bolt replacement on 2003-2006 Dodge Sprinter 2500 and 3500 repairs
• Service delays when the original head bolts are no longer suitable for reuse

Installation Notes

Use this head bolt set during cylinder head installation on the listed Dodge Sprinter applications. Follow the engine manufacturer’s tightening sequence, torque stages, and angle specifications exactly, since torque-to-yield fasteners depend on precise installation procedure. Inspect the cylinder head, gasket surface, and threads before assembly, and replace any damaged hardware or contaminated fasteners during service.

Quality Assurance

Victor Reinz supplies engine sealing and fastening components for professional repair use, and this part is engineered to meet the requirements of applications that call for new torque-to-yield head bolts. Part number 14-32109-02 is listed for 2003-2006 Dodge Sprinter 2500 and 2003-2006 Dodge Sprinter 3500 cylinder head service.
