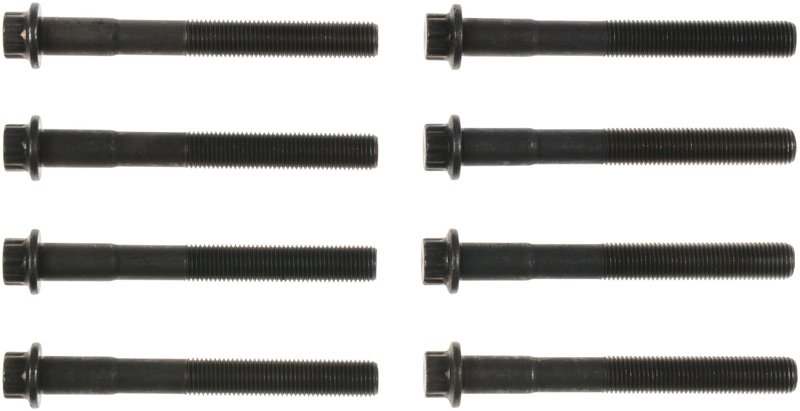

Victor Reinz 14-55099-01 Engine Cylinder Head Bolt Set
OE Quality 60-Day Returns
Victor Reinz

Victor Reinz 14-55099-01 Engine Cylinder Head Bolt Set

Brand Victor Reinz 14-55099-01
Material Steel
Length 96
Thread Diameter 11
Bolt Head Size (MM) 12
Fits Lexus and Toyota · 36 vehicles

TTY design. Maximum clamping force helps maintain a tight head gasket seal.

Steel construction. Built for strength in demanding cylinder head service.

Cylinder head bolt set. A direct replacement for engine hardware service.

Cross-references MAHLE GS33353, 90910-02077 (8X) and ES72168 for the same application. See all 4.

$51.61Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $51.61
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cylinder Head Bolt Set options

Victor Reinz Cylinder Head Bolt Set

Victor Reinz 14-55099-01 is an engine cylinder head bolt set for Toyota and Lexus applications that require precise head clamping during cylinder head service. Built from steel with a 96 mm length, 11 mm thread diameter, and 12 mm bolt head size, this set is specified for late-model engines where torque-to-yield fasteners should not be reused.

Key Features

  • Steel construction for cylinder head fastening applications
  • 96 mm length with 11 mm thread diameter
  • 12 mm bolt head size for service-specific fitment
  • Designed for engines that use torque-to-yield head bolts
  • Direct replacement option for Toyota and Lexus cylinder head service

Detailed Description

Victor Reinz 14-55099-01 is an engine cylinder head bolt set used during cylinder head installation and head gasket service. On engines originally equipped with torque-to-yield fasteners, replacement is required because the bolts are engineered to stretch during tightening and should not be reused. This set supports proper cylinder head clamping force for a secure head gasket seal on applications such as 1995-2004 Toyota Tacoma, 2000-2004 Toyota Tundra, 1996-2002 Toyota 4Runner, 1995-1998 Toyota T100, 1988-1993 Toyota Camry, 1992-1993 Lexus ES300, and 1990-1991 Lexus ES250. This part cross-references MAHLE GS33353 for the same application.

What It Is Used For

  • Replacing stretched torque-to-yield head bolts during cylinder head repair
  • Restoring proper cylinder head clamping after head gasket service
  • Addressing head sealing issues caused by reused fasteners
  • Supporting engine rebuilds on Toyota Tacoma and Toyota Tundra applications
  • Servicing Toyota 4Runner, Toyota T100, Camry, ES300, and ES250 cylinder heads

Installation Notes and Tips

Verify engine code and fastener specifications before installation. Torque-to-yield head bolts must be tightened in the correct sequence and to the exact factory procedure for the engine being serviced. Inspect the cylinder head, block surface, and head gasket condition before assembly. Confirm thread diameter, length, and bolt head size match the original application before beginning work.

Quality Assurance

Victor Reinz is known for engine sealing and gasket-related service parts used in professional repair environments. Part number 14-55099-01 is built to meet the demands of cylinder head installation on confirmed Toyota and Lexus applications.

This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2004ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2004ToyotaTundra3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2003ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2003ToyotaTundra3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2002Toyota4Runner——N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2002ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2002ToyotaTundra3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2001Toyota4Runner——N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2001ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2001ToyotaTundra3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2000Toyota4Runner3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2000ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
2000ToyotaTundra3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1999Toyota4Runner3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1999ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1998Toyota4Runner3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1998ToyotaT1003.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1998ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1997Toyota4Runner3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1997ToyotaT1003.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1997ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1996Toyota4Runner3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1996ToyotaT1003.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1996ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1995ToyotaT1003.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1995ToyotaTacoma3.4LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1993LexusES300——N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1993ToyotaCamry3.0LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1992LexusES300——N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1992ToyotaCamry3.0LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1991LexusES250——N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1991ToyotaCamry2.5LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1990LexusES250——N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1990ToyotaCamry2.5LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1989ToyotaCamry2.5LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
1988ToyotaCamry2.5LV6N/AEngine cylinder head bolt set includes all required bolts for securing the cylinder head.
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MAHLE — GS3335390910-02077 (8X)ES72168HB33074
