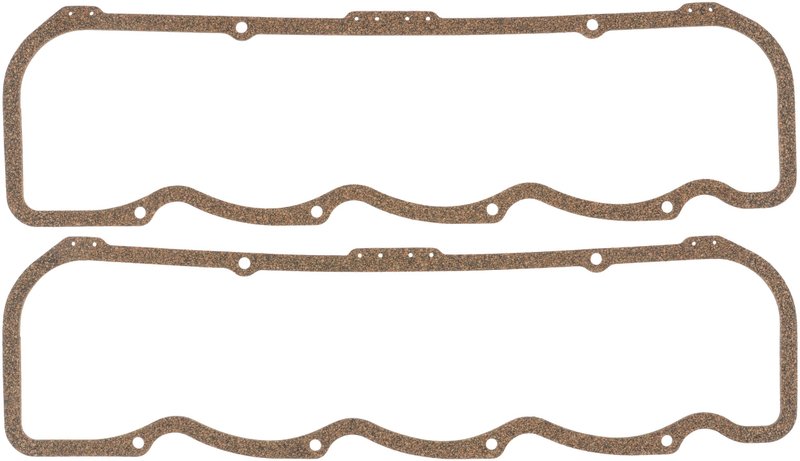

Victor Reinz 15-10525-01 Engine Valve Cover Gasket Set

Victor Reinz Valve Cover Gasket Set

Victor Reinz 15-10525-01 is an engine valve cover gasket set built to seal oil and oil spray at the valve cover while handling the heat found near exhaust manifolds, cylinder head exhaust crossovers, and EGR components. The cork rubber construction and two-piece configuration support a reliable seal for drivers looking to stop oil seepage and keep the top end of the engine clean.

This part cross-references MAHLE VS38410 for the same application.

Key Features

• Cork rubber material for sealing performance in valve cover applications
• Two-piece configuration for engines that use a split gasket layout
• 0.1300-inch thickness and 6 mounting holes
• Regular grade replacement gasket set for service work
• Color may vary by production batch
• Victor Reinz 15-10525-01 engineered for heat exposure around the valve cover area

Detailed Description

Victor Reinz 15-10525-01 is designed for engines that need a dependable valve cover seal to control oil leaks at the top of the engine. The gasket material is selected to maintain sealing integrity under elevated temperatures, which is important in vehicles where nearby exhaust heat can accelerate gasket wear. For applications such as Ford Mustang and Chevrolet Camaro service work, this gasket set helps restore a tight seal and reduce oil residue around the valve cover perimeter.

Where the application calls for it, Victor Reinz uses compression-limiter design features to help reduce over-torquing and splitting during installation. That approach supports consistent clamping force and helps avoid the need for repeat tightening after service. If you are replacing a leaking valve cover gasket on a Ford Mustang or Chevrolet Camaro, Victor Reinz 15-10525-01 provides a direct sealing solution built around the demands of engine heat and oil control.

What It Helps Solve

• Oil seepage from the valve cover gasket area
• Oil spots on the driveway or garage floor
• Oil residue collecting on the engine exterior
• Seal failure caused by heat exposure near exhaust components
• Leak recurrence from uneven clamping or over-torquing

Installation Notes and Tips

Clean the valve cover and cylinder head sealing surfaces thoroughly before installation. Inspect the cover for warpage, cracks, or damaged bolt holes, and follow the vehicle service manual for torque sequence and torque specification. On Ford Mustang and Chevrolet Camaro applications, confirm the sealing surfaces are dry and free of old gasket material before assembly to help the new gasket seat correctly.

Quality Assurance

Victor Reinz is known for sealing-system engineering focused on OE-style fit and heat-resistant gasket materials. Part number 15-10525-01 is built for engine service where dependable oil sealing is required at the valve cover.
