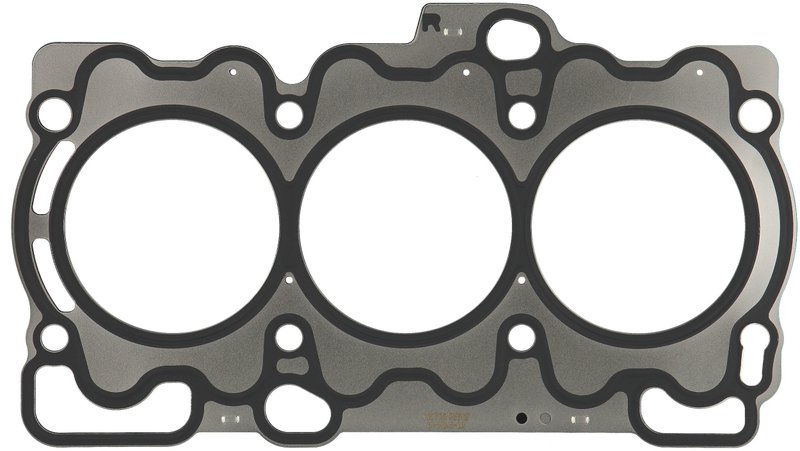

Victor Reinz 61-11245-00 Engine Cylinder Head Gasket - Right

Engine Cylinder Head Gasket Overview

Victor Reinz cylinder head gasket 61-11245-00 is built for secure sealing in high-combustion environments. It is a direct-fit style engine cylinder head gasket for Subaru applications that require MLS construction and precise sealing performance.

Key Features

• MLS construction for consistent sealing under heat and pressure
• One-piece design for simplified gasket placement
• 0.0200 thickness for controlled sealing stack height
• Regular grade cylinder head gasket for standard service replacement
• No gasket sealant included

Detailed Description

Victor Reinz 61-11245-00 is an engine cylinder head gasket engineered for lasting macro and micro sealing, helping protect against fuel, oil, water, and antifreeze intrusion. The MLS material and one-piece configuration support stable sealing across the combustion chamber, while the 3.5390 bore diameter and 0.0200 thickness provide the dimensional precision needed for proper head gasket service. This part number is used in Subaru Legacy, Subaru Outback, and Subaru B9 Tribeca applications with right-side fitment. If you are replacing a Subaru Legacy head gasket or servicing a Subaru Outback or B9 Tribeca, 61-11245-00 provides an OE-style sealing solution backed by Victor Reinz engineering resources.

What It Is Used For

• Combustion gas leakage at the cylinder head interface
• Oil and coolant mixing caused by failed sealing surfaces
• Loss of compression from a damaged head gasket
• Coolant seepage around the cylinder head sealing area
• Service replacement during engine repair or rebuild work

Installation Notes and Tips

Confirm cylinder head and block surfaces are clean, flat, and within specification before installation. Match the gasket thickness and bore diameter to the engine requirements, and follow the manufacturer’s torque sequence and tightening procedure. This part cross-references Four Seasons (e.g., 54655) for the same application.

Quality Assurance

Victor Reinz gaskets are developed with materials and designs selected from Dana Incorporated’s global engineering resources and are built to meet OE-proven sealing demands under extreme temperatures and combustion pressure.
