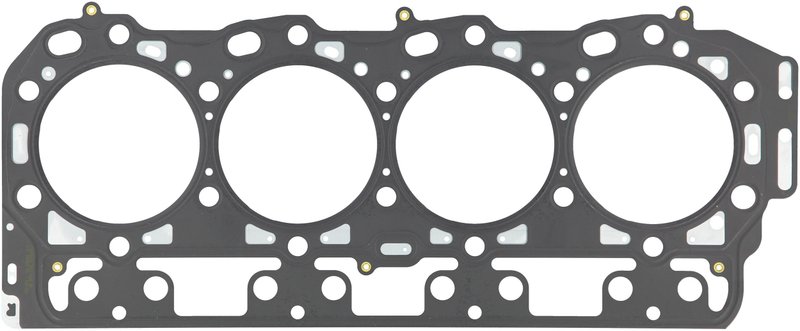

Victor Reinz 61-36460-20 Engine Cylinder Head Gasket - Right

Victor Reinz 61-36460-20 Cylinder Head Gasket

Victor Reinz 61-36460-20 is a right-side engine cylinder head gasket built for secure sealing under high combustion pressure and extreme temperature changes. It is a direct-fit MLS gasket for select Chevrolet Silverado, Express, and GMC Sierra and Savana applications.

Key Features

• MLS (multi-layer steel) construction for consistent sealing performance
• 1.05mm thickness and 103mm cylinder bore diameter
• One-piece, regular-grade design
• Black finish
• No gasket sealant included
• Fits right-side cylinder head applications

Detailed Description

This Victor Reinz cylinder head gasket is engineered for dependable macro and micro sealing between the cylinder head and engine block. The MLS construction helps maintain sealing integrity against fuel, oil, water, and anti-freeze exposure while handling the heat and pressure found in diesel and heavy-duty engine service. Part number 61-36460-20 is a practical OE-style replacement for Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, and GMC Sierra 3500 HD applications, along with Express and Savana vans in the listed fitments.

This part cross-references FEL-PRO 17060 for the same application.

What It Helps Address

• Coolant loss from a compromised head gasket seal
• Oil and coolant mixing caused by sealing failure
• Combustion leakage at the cylinder head interface
• Compression loss that can affect engine performance
• Leakage concerns after cylinder head service or replacement

Installation Notes and Tips

Fits 2006-2016 Chevrolet Express 2500, right; 2006-2016 Chevrolet Express 3500, right; 2001-2016 Chevrolet Silverado 2500 HD, right; 2007-2016 Chevrolet Silverado 3500 HD, right; 2006-2016 GMC Savana 2500, right; 2006-2016 GMC Savana 3500, right; 2001-2016 GMC Sierra 2500 HD, right; 2007-2016 GMC Sierra 3500 HD, right; 2007 Chevrolet Silverado 2500 HD Classic, right; 2007 Chevrolet Silverado 3500 Classic, right; 2007 GMC Sierra 2500 HD Classic, right; 2007 GMC Sierra 3500 Classic, right; 2001-2006 Chevrolet Silverado 3500, right; 2001-2006 GMC Sierra 3500, right.

Verify cylinder head surface condition, block flatness, and fastener requirements before assembly. This application notes replacement without cylinder head bolts, so reuse or replacement of bolts should be confirmed separately based on the engine service procedure.

Quality Assurance

Victor Reinz gaskets are developed with OE-proven sealing standards and materials selected for resistance to temperature extremes and combustion pressure. The brand draws on Dana Incorporated engineering resources to support consistent sealing performance in demanding engine applications.
