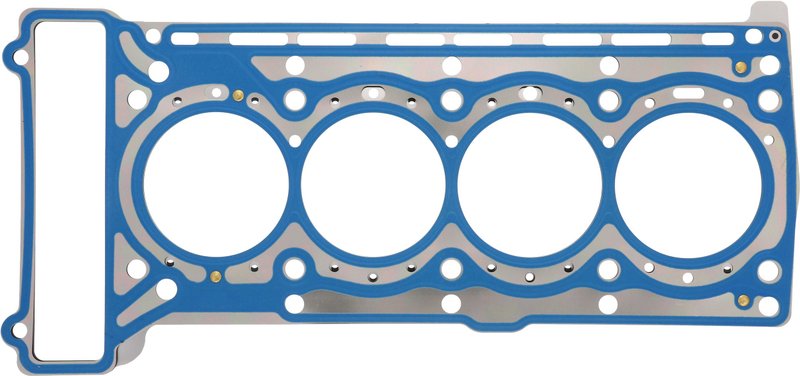

Victor Reinz 61-37185-10 Engine Cylinder Head Gasket

Victor Reinz Cylinder Head Gasket for Mercedes-Benz

The Victor Reinz 61-37185-10 cylinder head gasket is built for secure macro and micro sealing in high-combustion environments. It is engineered for Mercedes-Benz applications that need reliable separation of fuel, oil, water, and anti-freeze passages while maintaining sealing integrity under heat and pressure.

Compatible With Mercedes-Benz SLK200, Mercedes-Benz C250, Mercedes-Benz SLK250, and Mercedes-Benz C230 applications across the listed model years, this MLS head gasket supports precise OE-style service on select 2003-2016 vehicles.

Key Features

• MLS construction for consistent cylinder head sealing
• Silver/blue finish
• 0.0335 thickness
• 3.2677 cylinder bore diameter
• No gasket sealant included
• Victor Reinz part number 61-37185-10

Detailed Description

Victor Reinz 61-37185-10 is a multi-layer steel cylinder head gasket designed for dependable sealing between the cylinder head and engine block. The MLS design helps maintain sealing performance in engines exposed to extreme temperatures and high combustion pressures. For Mercedes-Benz SLK200, C250, SLK250, and C230 applications, this gasket is selected to support accurate sealing around combustion chambers and fluid passages.

This part cross-references Elring 549.350 for the same application. The Victor Reinz 61-37185-10 is a direct-fit sealing component for select Mercedes-Benz engine repair work where head gasket integrity is critical.

What It Helps Address

• Coolant loss from head gasket sealing failure
• Oil and coolant mixing at the cylinder head interface
• Compression leakage between the head and block
• Combustion pressure escape under load
• Sealing breakdown from heat cycling and engine stress

Installation Notes and Tips

• Verify engine code and gasket dimensions before installation.
• Inspect the cylinder head and block surfaces for flatness and damage.
• Clean all mating surfaces thoroughly before assembly.
• Follow the vehicle manufacturer’s torque sequence and torque-angle specifications.
• Use new fasteners and related sealing components as required by the repair procedure.

Quality Assurance

Victor Reinz gaskets are engineered with OE-proven materials and designs from Dana Incorporated resources, with attention to durability under temperature extremes and combustion pressure. Part number 61-37185-10 is built for consistent sealing performance in the listed Mercedes-Benz applications.
