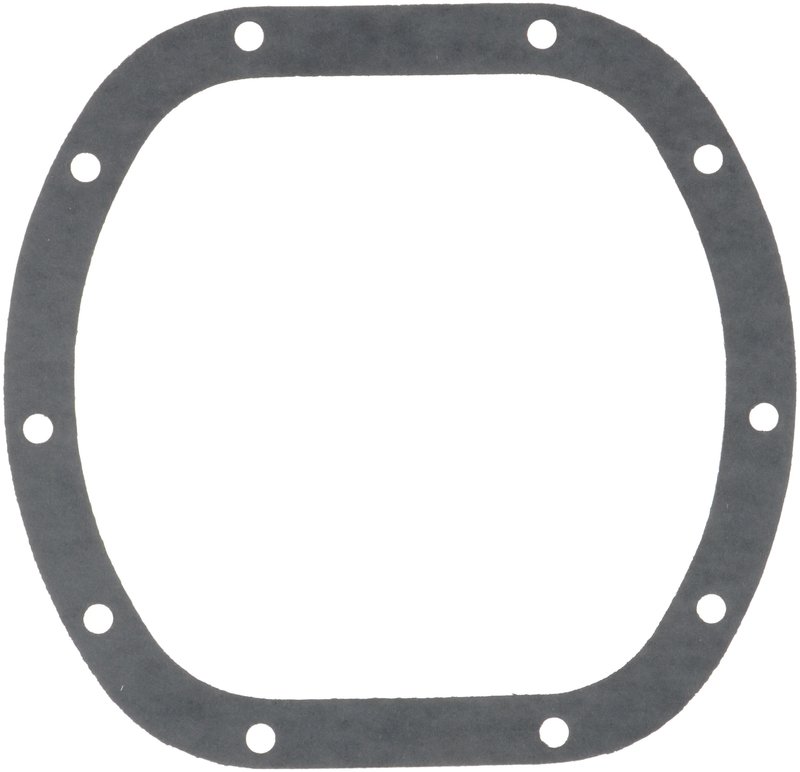

Victor Reinz 71-14809-00 Differential Cover Gasket - Front or Rear

Victor Reinz Differential Cover Gasket for Dana 30 Axles

Victor Reinz 71-14809-00 is a differential cover gasket built for front Dana 30 axle applications that use a 10-bolt cover pattern and a 7.125-inch ring gear. It is a one-piece gasket with a 0.031-inch thickness, sized at 9.250 inches long by 8.750 inches wide for a precise sealing surface.

Compatible with Jeep Cherokee, Grand Cherokee, TJ, Wrangler, Comanche, Wagoneer, CJ5, CJ7, Scrambler, and Ford Bronco front axle applications listed below, this gasket supports clean differential service on Dana 30-equipped vehicles. Part number 71-14809-00 is also referenced for OE-style replacement needs in the same application range.

Key Features

• Part number: 71-14809-00
• Category: differential cover gasket
• One-piece configuration for a straightforward cover seal
• Thickness: 0.031 inch
• Dimensions: 9.250 inches long x 8.750 inches wide
• 10 bolt holes for Dana 30 front axle cover applications
• Built for 7.125-inch ring gear setups
• Victor Reinz OE-quality sealing technology and engineering

Detailed Description

Victor Reinz 71-14809-00 is a differential cover gasket for front axle service on Dana 30-equipped Jeep and Ford applications. It is specified for 10-bolt covers with a 7.125-inch ring gear, making it a direct-match sealing solution for vehicles such as the Jeep Cherokee, Grand Cherokee, TJ, Wrangler, Comanche, Wagoneer, CJ5, CJ7, Scrambler, and Ford Bronco in the listed model years. This part cross-references MAHLE P27603 for the same application.

What This Gasket Helps Address

• Differential cover oil seepage at the axle housing flange
• Leaks caused by an aged or compressed cover gasket
• Service issues after differential fluid changes
• Sealing problems on Dana 30 front axle covers with 10 bolt holes
• Fitment concerns on Jeep and Ford front axle applications requiring the listed dimensions

Installation Notes and Tips

Clean the differential cover and axle housing sealing surfaces thoroughly before installation. Verify the cover uses 10 bolt holes and a 7.125-inch ring gear Dana 30 configuration before ordering. Follow the vehicle service procedure for differential fluid refill and torque sequence after the cover is installed.

Quality Assurance

Victor Reinz is an original equipment supplier known for gasket engineering used by manufacturers worldwide. The 71-14809-00 differential cover gasket reflects that OE-focused sealing approach for front axle service on the listed Jeep and Ford applications.

• Fits 1984-1998 Jeep Cherokee, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1984-1998 Jeep Cherokee, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1993-1998 Jeep Grand Cherokee, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1993-1998 Jeep Grand Cherokee, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1997-1998 Jeep TJ, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1997-1998 Jeep TJ, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1997-1998 Jeep Wrangler, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1987-1995 Jeep Wrangler, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1997-1998 Jeep Wrangler, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1987-1995 Jeep Wrangler, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1986-1992 Jeep Comanche, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1986-1992 Jeep Comanche, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1984-1990 Jeep Wagoneer, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1984-1990 Jeep Wagoneer, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1976-1986 Jeep CJ7, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1976-1986 Jeep CJ7, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1981-1985 Jeep Scrambler, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1981-1985 Jeep Scrambler, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1974-1983 Jeep CJ5, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1974-1983 Jeep CJ5, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
• Fits 1966-1971 Ford Bronco, front, with 10 bolt holes; with 7.125in ring gear; with Dana 30 axle
• Fits 1966-1971 Ford Bronco, front, 10 bolt; with 7.125in ring gear; with Dana 30-AF axle
