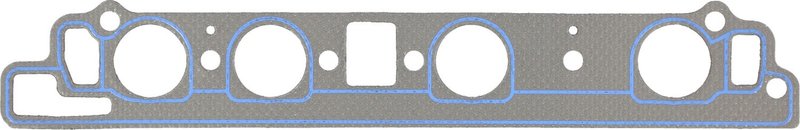

Victor Reinz 71-24183-10 Engine Intake Manifold Gasket

Victor Reinz Intake Manifold Gasket for Mercedes-Benz

The Victor Reinz 71-24183-10 intake manifold gasket is built for sealing the intake system where fuel, air, coolant, and oil exposure create demanding conditions. It is a direct-fit sealing solution for select Mercedes-Benz V8 applications, including the 1984-1985 Mercedes-Benz 500SEL and the 1973 Mercedes-Benz 300SEL.

• Engine intake manifold gasket for select Mercedes-Benz applications
• Seals intake manifold surfaces exposed to fuel, air, coolant, and oil
• Application-specific gasket design for proper engine sealing
• Fits 1984-1985 Mercedes-Benz 500SEL, M 117.961 Engine
• Fits 1973 Mercedes-Benz 300SEL, M 117.986 Engine

Application Coverage

Compatible With 1984-1985 Mercedes-Benz 500SEL, M 117.961 Engine, and 1973 Mercedes-Benz 300SEL, M 117.986 Engine. The Victor Reinz 71-24183-10 is engineered for intake manifold sealing on these Mercedes-Benz models, where maintaining a stable seal is critical to engine performance and fluid separation. This part cross-references Elring 776.963 for the same application.

Common Problems It Can Address

• Intake manifold vacuum leaks
• Coolant seepage at the manifold sealing surface
• Oil or fuel residue around the intake interface
• Rough idle caused by sealing loss
• Air leakage that affects engine operation

Installation Notes and Tips

Clean both mating surfaces thoroughly before installation and inspect the intake manifold and cylinder head for warpage, corrosion, or old gasket material. Follow the factory tightening sequence and torque specifications for the M 117.961 and M 117.986 engines to help achieve an even seal. Verify all related seals and gaskets are in place before final assembly.

Quality Assurance

Victor Reinz develops gasket materials and constructions for a wide range of engine sealing demands, including import and domestic applications as well as cast iron and aluminum engine designs. Part number 71-24183-10 is built to meet the sealing requirements of the listed Mercedes-Benz fitments.
