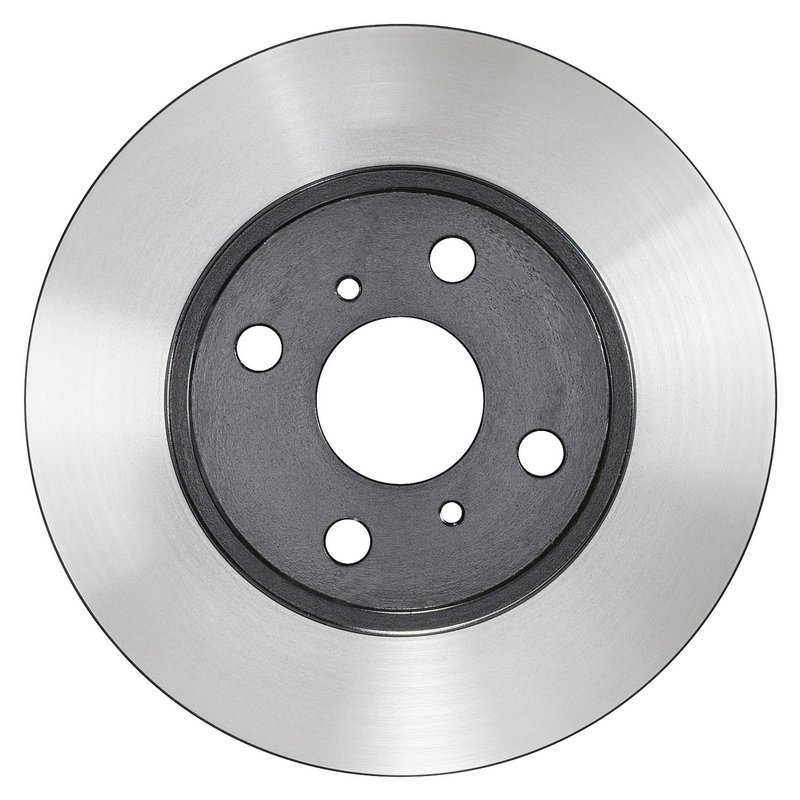

Wagner Brake BD126481E Disc Brake Rotor - Front
| Brand | Wagner Brake BD126481E |
|---|---|
| Position | Front |
| Nominal Thickness | 22.0 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Disc Finish | Directional |
| Height | 1.697 |
| Height | 43.1 |
| Material | Cast iron |
| Nominal Thickness | 0.867 |
| Outside Diameter | 10.038 |
| Outside Diameter | 254.9 |
| Fits | Scion · 6 vehicles |
Premium brake rotor. Engineered for strong performance, corrosion resistance, and easy installation.
Rust-resistant coating. Helps protect the rotor from corrosion over time.
Vented design. Promotes efficient airflow for more consistent braking.
Cross-references Centric Parts 120.44133, Centric Parts 121.44133 and Raybestos Brakes 980201 for the same application. See all 6.
Front Brake Rotor for Scion xA and xB
Wagner Brake BD126481E is a front disc brake rotor engineered for 2004-2006 Scion xA and 2004-2006 Scion xB models with a 4-stud wheel and a 255mm diameter rotor. It features a vented, full cast construction with a smooth directional finish and a rust-resistant coating on the non-braking surface for easier service and corrosion control.
- Fits 2004-2006 Scion xA, front
- Fits 2004-2006 Scion xB, front
- Vented rotor design for front brake applications
- Full cast, cast iron construction
- Rust-resistant coating on the non-braking surface
- Smooth directional disc finish
- Nominal thickness: 22.0 mm / 0.867 in
- Outside diameter: 254.9 mm / 10.038 in
- Height: 43.1 mm / 1.697 in
OE-Style Brake Performance
Wagner Brake BD126481E is built for drivers replacing a worn front rotor on a Scion xA or Scion xB. The vented cast iron design supports heat management in front brake service, while the directional finish and smooth surface help promote consistent pad contact. Wagner pairs this rotor with Wagner brake pads for balanced braking performance, and this part cross-references Centric Parts (e.g., 120.44133, 121.44133) for the same application.
Common Problems This Rotor Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Noise from uneven or damaged braking surfaces
- Corrosion on the rotor hat and non-braking areas
- Reduced braking consistency from an overheated front rotor
- Service issues on 4-stud wheel Scion xA and xB front brake setups
Installation Notes and Tips
Confirm vehicle fitment by year, model, and front position before installation. This rotor is specified for 4-stud wheel applications with a 255mm diameter rotor, so match those details to the vehicle before service. Inspect pads, calipers, and hub surfaces during replacement, and clean the mounting face to help ensure proper rotor seating.
Quality Assurance
Wagner Brake premium rotors are engineered with a focus on performance, corrosion resistance, and straightforward installation. BD126481E is built from cast iron with a rust-resistant coating to support long-term service in front brake applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Scion | xA | Front | 4 Stud Wheel; 4 Stud Wheel, with 255mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2006 | Scion | xB | Front | 4 Stud Wheel; 4 Stud Wheel, with 255mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2005 | Scion | xA | Front | 4 Stud Wheel; 4 Stud Wheel, with 255mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2005 | Scion | xB | Front | 4 Stud Wheel; 4 Stud Wheel, with 255mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2004 | Scion | xA | Front | 4 Stud Wheel; 4 Stud Wheel, with 255mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2004 | Scion | xB | Front | 4 Stud Wheel; 4 Stud Wheel, with 255mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| No rows match your filter. | ||||
