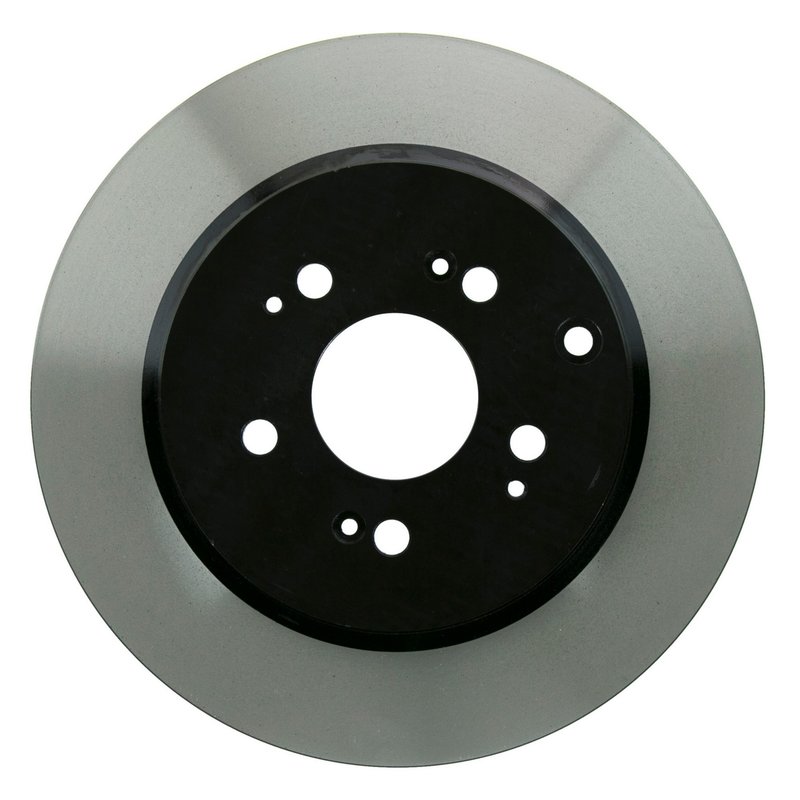

Wagner Brake BD180045E Disc Brake Rotor - Rear
| Brand | Wagner Brake BD180045E |
|---|---|
| Position | Rear |
| Nominal Thickness | 11.0 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Disc Finish | Directional |
| Height | 2.350 |
| Height | 59.7 |
| Material | Cast iron |
| Nominal Thickness | 0.433 |
| Outside Diameter | 13.120 |
| Outside Diameter | 333.5 |
| Fits | Acura and Honda · 25 vehicles |
Rust-resistant coating. Protects non-braking surfaces from corrosion during service and use.
Full cast construction. Cast iron rotor design for stable braking performance and smooth pad contact.
Directional finish. Supports correct rotor orientation and straightforward installation.
Cross-references Centric Parts 120.40072, Centric Parts 121.40072 and Raybestos Brakes 980567 for the same application. See all 8.
Rear Brake Rotor Overview
Wagner Brake BD180045E is a rear disc brake rotor built for vehicles that use a 334 mm rear rotor application. It combines a solid cast iron construction with a rust-resistant coating for dependable service and cleaner installation handling.
Key Features
- Solid rotor design with a smooth surface for consistent brake pad contact.
- Full cast construction in cast iron for stable braking performance.
- Rust-resistant coating helps protect non-braking surfaces from corrosion.
- Directional finish supports proper rotor orientation during installation.
- Fits rear brake applications on Honda Odyssey, Honda Pilot, Acura MDX, and Acura ZDX.
Detailed Fitment and Application
Fits 2011-2017 Honda Odyssey, rear. Fits 2009-2015 Honda Pilot, rear. Fits 2007-2013 Acura MDX, rear. Fits 2010-2013 Acura ZDX, rear. This Wagner Brake rotor, part number BD180045E, is cross-referenced to OE-style replacement numbers used for the same application, including 42510STXA00 and 42510SZA00.
Wagner premium brake rotors are engineered to emphasize performance, corrosion resistance, and easier installation. Pairing this rotor with matching Wagner brake pads supports a coordinated brake service on the same axle.
What It Helps Solve
- Brake pulsation caused by worn or uneven rotor surfaces.
- Corrosion on the rotor hat and non-friction surfaces.
- Reduced braking consistency from a damaged rear rotor.
- Noise or vibration linked to rotor wear.
Installation Notes and Tips
Verify rotor diameter and rear axle fitment before installation. Clean the hub mounting surface and inspect pads, calipers, and hardware condition during brake service. Confirm the directional finish is oriented correctly when mounting the rotor.
Quality Assurance
Wagner Brake designs this rotor with corrosion resistance and installation ease in mind, using a full cast construction and a protective coating for long-term service support.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2016 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2015 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2015 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2014 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2014 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2013 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2013 | Acura | ZDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2013 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2013 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2012 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2012 | Acura | ZDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2012 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2012 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2011 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2011 | Acura | ZDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2011 | Honda | Odyssey | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2011 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2010 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2010 | Acura | ZDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2010 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2009 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2009 | Honda | Pilot | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2008 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
| 2007 | Acura | MDX | Rear | 5 Stud Wheel, with 334mm Diameter Rotor; Black E-Coat on non-braking surface to prevent rust and corrosion |
