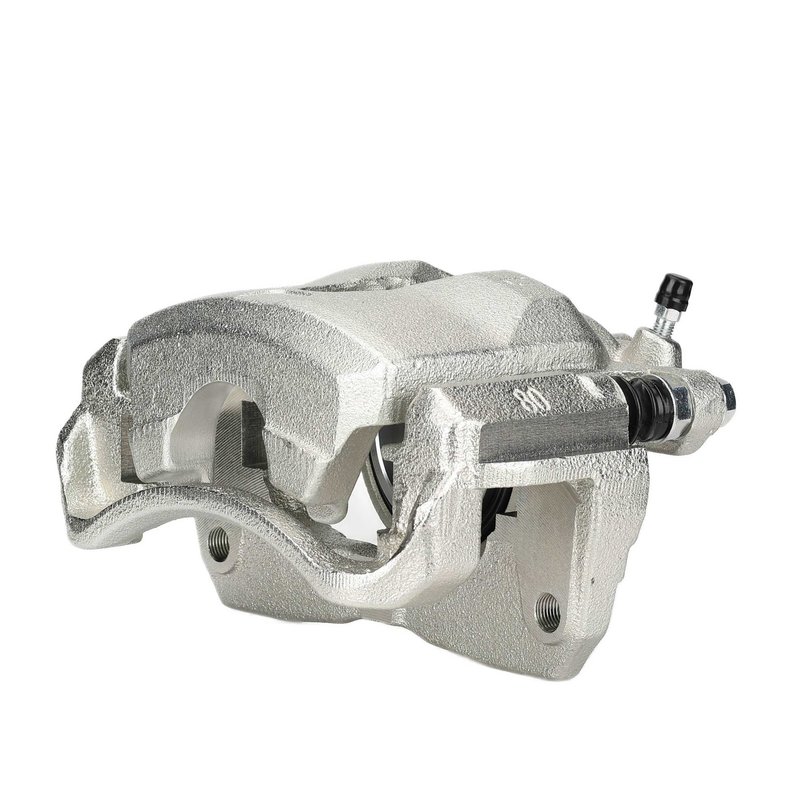

Wagner Brake CN11529SC Disc Brake Caliper - Front Left
| Brand | Wagner Brake CN11529SC |
|---|---|
| Position | Front Left |
| Pads Included | No |
| Caliper Casting Material | Cast iron |
| Bleeder Screw Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 2.496 |
| Piston Diameter | 63.4 |
| Mounting Bracket Included | Yes |
| Bleeder Screw Quantity | 1 |
| Bleeder Screw Thread Size | M7x1 |
| Fits | Toyota · 5 vehicles |
Coated finish. Helps resist corrosion and supports consistent braking performance.
Floating caliper design. Uses a single piston for controlled brake application.
Direct replacement. Built with newly manufactured components for a like-new service part.
Cross-references BBB Industries 99-01641A, Cardone New 2C-2702 and Cardone Reman 19-2702 for the same application. See all 20.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
Wagner Brake CN11529SC is a disc brake caliper for select Toyota Camry applications. It is built with newly manufactured components and a coated finish to support consistent braking performance and corrosion resistance.
Key Features
- Floating disc brake caliper design with one piston for controlled brake application.
- Cast iron caliper body for strength and stable operation.
- Coated finish helps resist corrosion in everyday driving conditions.
- Bleeder screw included with M7x1 thread size for serviceability.
- Mounting bracket included for the specified application.
Detailed Description
This Wagner Brake caliper, part number CN11529SC, is engineered as a direct replacement for the front left brake system on 2002-2006 Toyota Camry models. The caliper uses a floating design with a 63.4 mm piston diameter to provide consistent hydraulic response, and its cast iron construction supports durable operation. Wagner’s use of 100% newly manufactured components and a protective coating helps deliver like-new braking performance with reliable corrosion resistance. This part cross-references Raybestos Brakes FRC11529N for the same application.
What It Is Used For
- Restoring brake clamping force when the original caliper is sticking or worn.
- Addressing uneven pad wear caused by caliper piston or slide issues.
- Replacing a leaking caliper body or damaged bleeder screw.
- Correcting reduced braking response on the front left corner of the vehicle.
Installation Notes and Tips
Fits 2002-2006 Toyota Camry, front left. Verify the bleeder screw thread size, piston diameter, and bracket configuration before installation. Because this caliper is supplied with a mounting bracket, confirm the existing brake hose and pad setup match the application requirements. Proper bleeding is required after installation to remove air from the hydraulic system.
Quality Assurance
Wagner Brake uses newly manufactured components and a coated caliper design to support reliable performance and corrosion resistance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Toyota | Camry | 2.4L | L4 | Front Left | Supplied with Mounting Bracket |
| 2005 | Toyota | Camry | 2.4L | L4 | Front Left | Supplied with Mounting Bracket |
| 2004 | Toyota | Camry | 2.4L | L4 | Front Left | Supplied with Mounting Bracket |
| 2003 | Toyota | Camry | 2.4L | L4 | Front Left | Supplied with Mounting Bracket |
| 2002 | Toyota | Camry | 2.4L | L4 | Front Left | Supplied with Mounting Bracket |
| No rows match your filter. | ||||||
