Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

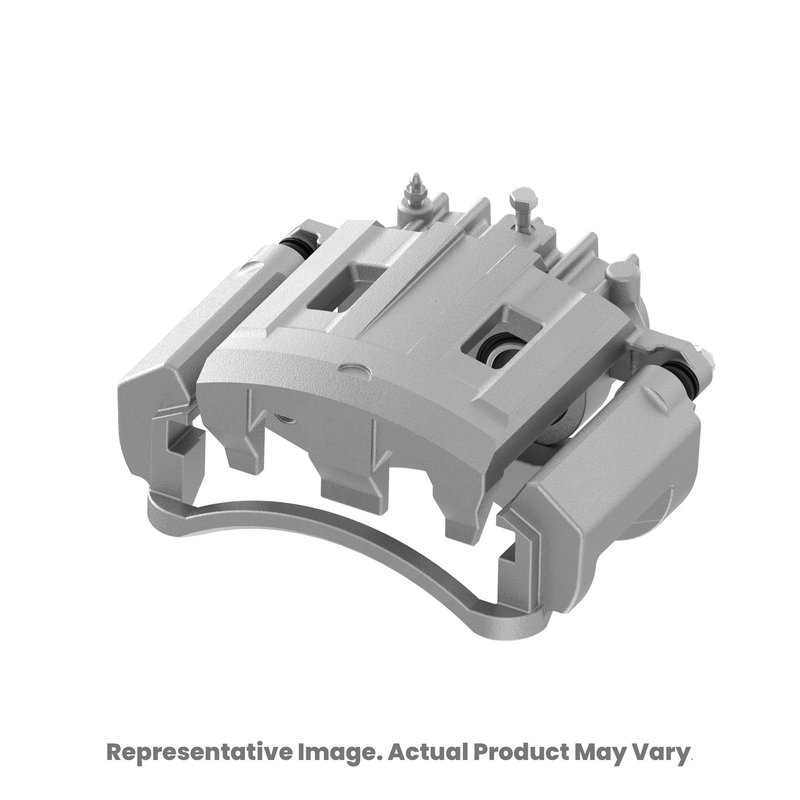

Wagner Brake CN11590SC Disc Brake Caliper - Rear Left
| Brand | Wagner Brake CN11590SC |
|---|---|
| Position | Rear Left |
| Pads Included | No |
| Caliper Casting Material | Cast iron |
| Bleeder Screw Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 1.890 |
| Piston Diameter | 48.0 |
| Mounting Bracket Included | Yes |
| Bleeder Screw Quantity | 1 |
| Bleeder Screw Thread Size | 3/8-24 |
| Fits | Ford · 6 vehicles |
OE-style replacement. Built with 100% newly manufactured components for a direct service replacement.
Coated cast iron body. Helps resist corrosion while maintaining stable hydraulic braking performance.
Service-ready design. Includes a bleeder screw and mounting bracket for the listed applications.
Cross-references BBB Industries 99-17937B, Cardone New 2C-4921 and Cardone Reman 18-4921 for the same application. See all 20.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brake Caliper Overview
Wagner Brake CN11590SC is a disc brake caliper built with 100% newly manufactured components and a coated finish for corrosion resistance. It is a floating caliper with a cast iron body, two pistons, and a bleeder screw included for service-ready replacement.
Key Features
- Cast iron caliper body for durable hydraulic braking performance
- Floating design with two pistons for even pad actuation
- Coated finish helps resist corrosion
- Bleeder screw included with 3/8-24 thread size
- Mounting bracket included for the listed applications
- Pads are not included
Detailed Description
This Wagner Brake disc brake caliper, part number CN11590SC, is engineered as a direct replacement for select heavy-duty truck applications. The 1.890-inch (48.0 mm) piston diameter and floating caliper design support consistent hydraulic response, while the coated cast iron construction helps maintain reliable braking performance over time. Fits 2005-2007 Ford F-250 Super Duty, rear left. Fits 2005-2007 Ford F-350 Super Duty, rear left. This part cross-references Cardone New 2C-4921 and Raybestos Brakes FRC11590N for the same application.
Common Issues This Part May Solve
- Uneven brake pad contact caused by a worn caliper
- Brake fluid leakage from a damaged hydraulic housing
- Corrosion on the caliper body or bleeder area
- Reduced braking response from sticking piston movement
- Service problems during rear brake repair on the listed trucks
Installation Notes and Tips
Verify rear left fitment before ordering. Confirm the bleeder screw thread size and piston dimensions match the original unit. Because the mounting bracket is included, compare the bracket style and mounting points to the removed caliper before installation. Bleed the brake system after installation and inspect for leaks and proper pedal feel.
Quality Assurance
Wagner Brake uses 100% newly manufactured components in this caliper and applies a coated finish to help resist corrosion. Part number CN11590SC is built for consistent performance across the listed applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | Rear Left | Supplied with Mounting Bracket |
| 2007 | Ford | F-350 Super Duty | Rear Left | Supplied with Mounting Bracket |
| 2006 | Ford | F-250 Super Duty | Rear Left | Supplied with Mounting Bracket |
| 2006 | Ford | F-350 Super Duty | Rear Left | Supplied with Mounting Bracket |
| 2005 | Ford | F-250 Super Duty | Rear Left | Supplied with Mounting Bracket |
| 2005 | Ford | F-350 Super Duty | Rear Left | Supplied with Mounting Bracket |
| No rows match your filter. | ||||
