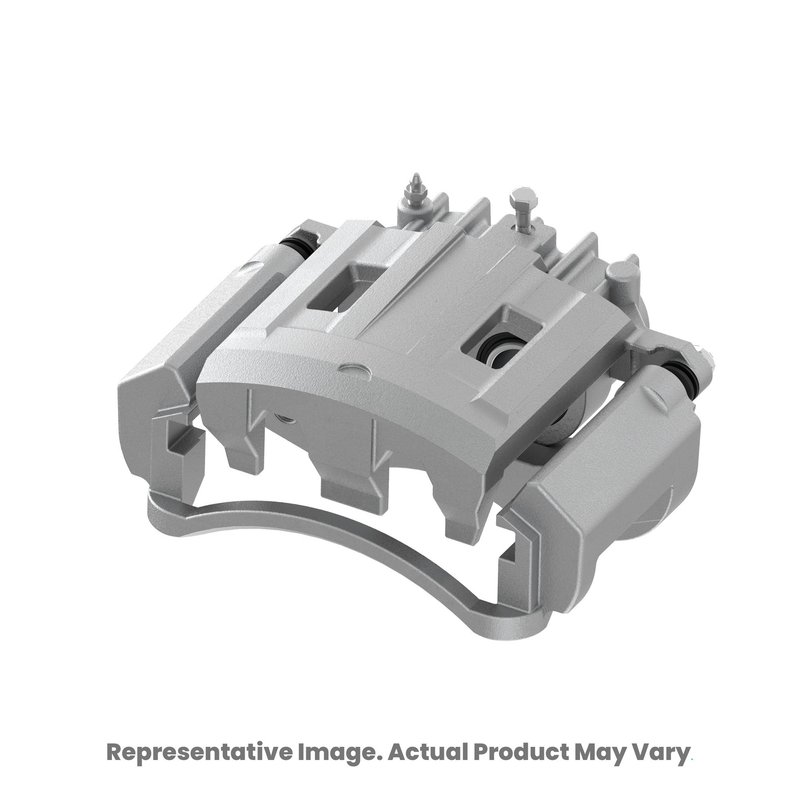

Wagner Brake CN11689SC Disc Brake Caliper - Rear Right

Brake Caliper Overview

Wagner Brake CN11689SC is a disc brake caliper built with 100% newly manufactured components for consistent braking performance and corrosion resistance. It is a floating caliper with a cast iron body, two pistons, and a bleeder screw included for service-ready replacement.

Key Features

• Disc brake caliper with a floating design for controlled pad movement.
• Cast iron construction for strength and durability.
• Two 45.0 mm pistons for hydraulic actuation.
• Coated finish helps resist corrosion.
• Mounting bracket included for the specified application.
• Bleeder screw included with M10x1 thread size.

Detailed Description

Wagner Brake CN11689SC is engineered as a direct replacement disc brake caliper for rear right applications on select Dodge Ram trucks and van models. The caliper uses a floating design with two pistons and a 1.772-inch piston diameter, and it is supplied with a mounting bracket for the listed fitments. This part number, CN11689SC, is built from newly manufactured components rather than remanufactured cores, and the coated finish supports reliable corrosion resistance in demanding brake service.

Compatible With select Dodge Ram 1500, Ram 2500, Ram 3500, and Ram 3500 Van rear right brake applications, this Wagner Brake caliper is intended for vehicles that require the specified bracketed rear caliper configuration. The part number CN11689SC also cross-references Raybestos Brakes FRC11689N for the same application.

What It Is Used For

• Restoring rear brake clamping force when the caliper is sticking or worn.
• Replacing a leaking caliper body or damaged piston assembly.
• Addressing uneven rear brake pad wear caused by caliper drag.
• Correcting brake fluid seepage at the bleeder screw or caliper seals.
• Replacing a corroded caliper on the listed Dodge Ram applications.

Installation Notes and Tips

Verify the rear right position and bracketed caliper configuration before installation. Confirm bleeder screw thread size, piston size, and brake hose connection details against the removed part. After installation, bleed the brake system according to service procedures and inspect for leaks and proper pedal feel.

Quality Assurance

Wagner Brake uses 100% newly manufactured components in this caliper, and the coated housing is designed to provide reliable corrosion resistance and consistent performance.
