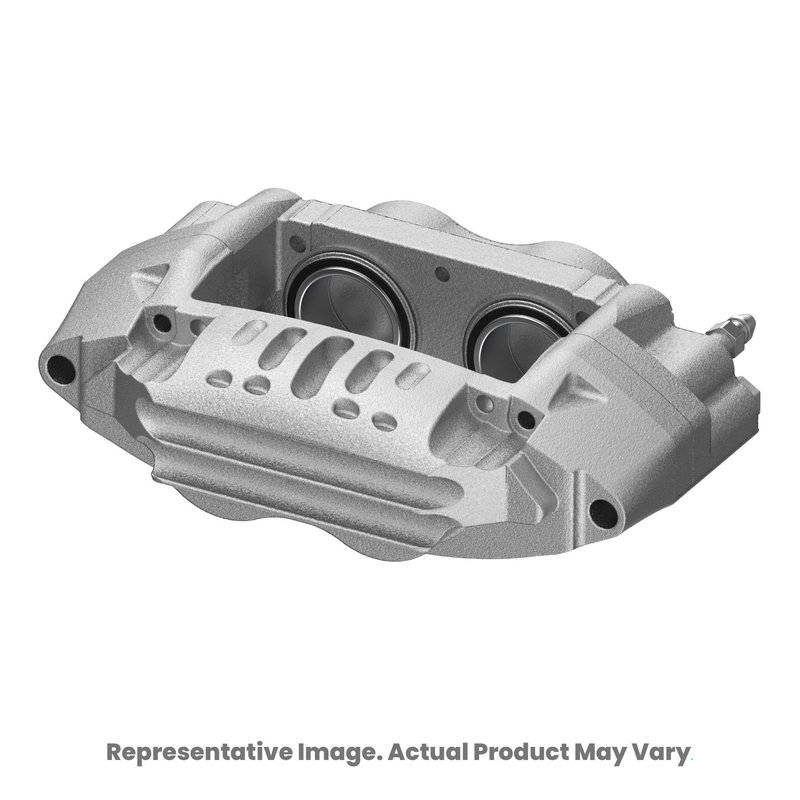

Wagner Brake CN11703SC Disc Brake Caliper - Front Right
| Brand | Wagner Brake CN11703SC |
|---|---|
| Position | Front Right |
| Pads Included | No |
| Caliper Casting Material | Cast iron |
| Bleeder Screw Included | Yes |
| Piston Quantity | 2 |
| Piston Diameter | 2.000 |
| Piston Diameter | 50.8 |
| Mounting Bracket Included | Yes |
| Bleeder Screw Quantity | 1 |
| Bleeder Screw Thread Size | M10x1.5 |
| Fits | Chevrolet, GMC, Isuzu, and Pontiac · 17 vehicles |
OE-style replacement. Direct-fit brake caliper for specified applications with a supplied mounting bracket.
Coated finish. Helps resist corrosion while supporting consistent braking performance.
Cast iron body. Built with two 2.000-inch pistons for controlled hydraulic clamping force.
Cross-references BBB Industries 99-17352A, Cardone New 2C-4938 and Cardone Reman 18-4938 for the same application. See all 19.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Brake Caliper Overview
Wagner Brake CN11703SC is a disc brake caliper built for direct replacement applications with a supplied mounting bracket. It is engineered with newly manufactured components and a coated finish to support consistent braking performance and corrosion resistance.
Key Features
- Cast iron caliper body for durable brake system service.
- Two 2.000-inch pistons for controlled hydraulic force.
- Bleeder screw included with M10x1.5 thread size.
- Mounting bracket included for the specified applications.
- Coated construction helps resist corrosion over time.
Fitment Details
Compatible with 2004-2008 Chevrolet Colorado, front right. Compatible with 2004-2008 GMC Canyon, front right. Compatible with 2007-2008 Isuzu i-290, front right. Compatible with 2007-2008 Isuzu i-370, front right. Compatible with 2006 Isuzu i-280, front right. Compatible with 2006 Isuzu i-350, front right. Compatible with 2005 Pontiac G6, front right.
This part cross-references Cardone New 2C-4938 and Raybestos Brakes FRC11703N for the same application.
What It Is Used For
- Restoring hydraulic clamping force in a worn brake corner.
- Replacing a caliper with sticking or uneven piston movement.
- Addressing brake fluid seepage at the caliper assembly.
- Correcting corrosion-related caliper wear and finish breakdown.
- Replacing a damaged unit that no longer bleeds or mounts properly.
Installation Notes
Verify the vehicle, position, and mounting bracket configuration before installation. Bleed the brake system after replacement and confirm the bleeder screw thread size matches the service setup. Pads are not included.
Quality Assurance
Wagner Brake uses 100% newly manufactured components in this caliper design to support consistent performance and reliable corrosion resistance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Chevrolet | Colorado | — | — | Front Right | Supplied with Mounting Bracket |
| 2008 | GMC | Canyon | — | — | Front Right | Supplied with Mounting Bracket |
| 2008 | Isuzu | i-290 | — | — | Front Right | Supplied with Mounting Bracket |
| 2008 | Isuzu | i-370 | — | — | Front Right | Supplied with Mounting Bracket |
| 2007 | Chevrolet | Colorado | — | — | Front Right | Supplied with Mounting Bracket |
| 2007 | GMC | Canyon | — | — | Front Right | Supplied with Mounting Bracket |
| 2007 | Isuzu | i-290 | — | — | Front Right | Supplied with Mounting Bracket |
| 2007 | Isuzu | i-370 | — | — | Front Right | Supplied with Mounting Bracket |
| 2006 | Chevrolet | Colorado | — | — | Front Right | Supplied with Mounting Bracket |
| 2006 | GMC | Canyon | — | — | Front Right | Supplied with Mounting Bracket |
| 2006 | Isuzu | i-280 | — | — | Front Right | Supplied with Mounting Bracket |
| 2006 | Isuzu | i-350 | — | — | Front Right | Supplied with Mounting Bracket |
| 2005 | Chevrolet | Colorado | — | — | Front Right | Supplied with Mounting Bracket |
| 2005 | GMC | Canyon | — | — | Front Right | Supplied with Mounting Bracket |
| 2005 | Pontiac | G6 | 3.5L | V6 | Front Right | Supplied with Mounting Bracket |
| 2004 | Chevrolet | Colorado | — | — | Front Right | Supplied with Mounting Bracket |
| 2004 | GMC | Canyon | — | — | Front Right | Supplied with Mounting Bracket |
