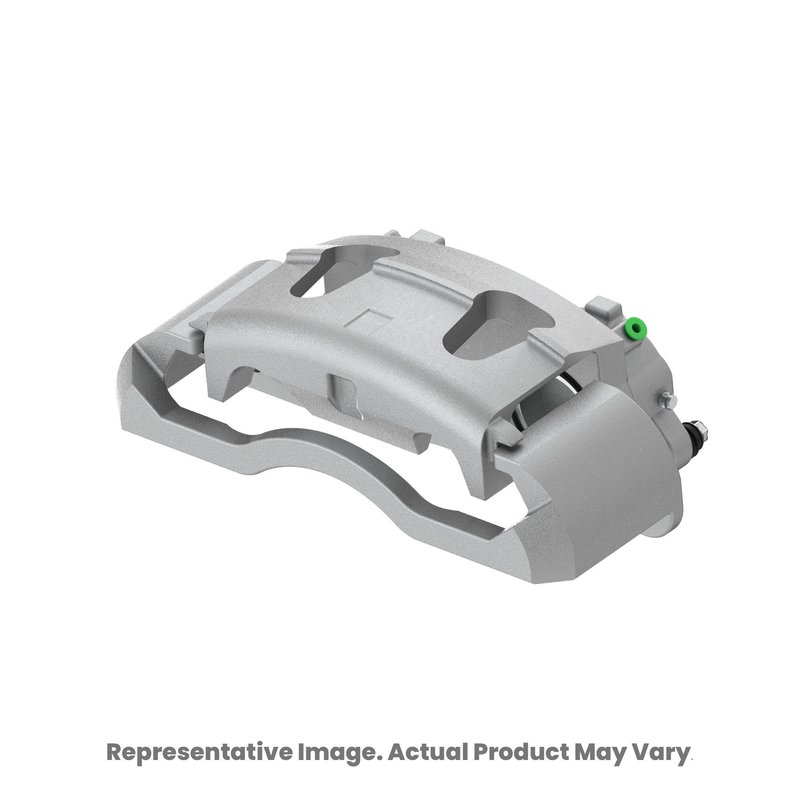

Wagner Brake CN11711SC Disc Brake Caliper - Front Left

Overview

Wagner Brake CN11711SC is a front left disc brake caliper built for direct replacement applications with a supplied mounting bracket. It uses newly manufactured components, a cast iron body, and a coated finish to support consistent braking performance and corrosion resistance.

Compatible with Honda and Acura applications, this caliper is listed for the Honda CR-V, Honda Crosstour, Acura RDX, Honda Accord Crosstour, and Honda Odyssey. The CN11711SC part number is also referenced across multiple aftermarket catalogs for the same application.

Key Features

• Floating disc brake caliper design for hydraulic brake service.
• Cast iron caliper casting for strength and heat handling.
• Two pistons with a 45.3 mm piston diameter.
• Bleeder screw included with M10x1.25 thread size.
• Mounting bracket included for the listed application.
• Coated finish for added corrosion resistance.

Detailed Description

Wagner Brake CN11711SC is engineered as a replacement disc brake caliper for front left fitments on select Honda and Acura vehicles. The floating caliper design, dual-piston layout, and cast iron construction are intended to restore stable hydraulic clamping and consistent pedal response. The coated surface helps protect the caliper from corrosion in everyday driving conditions.

This part fits 2007-2016 Honda CR-V, front left; 2012-2015 Honda Crosstour, front left; 2007-2012 Acura RDX, front left; 2010-2011 Honda Accord Crosstour, front left; and 2005-2010 Honda Odyssey, front left. The CN11711SC part number is commonly cross-referenced with Raybestos Brakes FRC11711N for the same application.

Common Repair Uses

• Restores braking force when the caliper is sticking or dragging.
• Addresses uneven pad wear caused by piston or slide issues.
• Helps correct brake fluid seepage from a worn caliper assembly.
• Supports recovery from corrosion-related caliper seizure.
• Replaces a damaged caliper bracket or bleeder screw assembly.

Installation Notes

Verify the front left position, piston count, bleeder screw thread size, and bracket configuration before installation. Transfer or replace brake pads and related hydraulic components as needed based on inspection, and bleed the brake system after installation to remove air from the circuit.

Quality Assurance

Wagner Brake uses 100% newly manufactured components in this caliper line and applies a coated finish for reliable corrosion resistance. The CN11711SC is built to deliver consistent performance across the listed applications.
