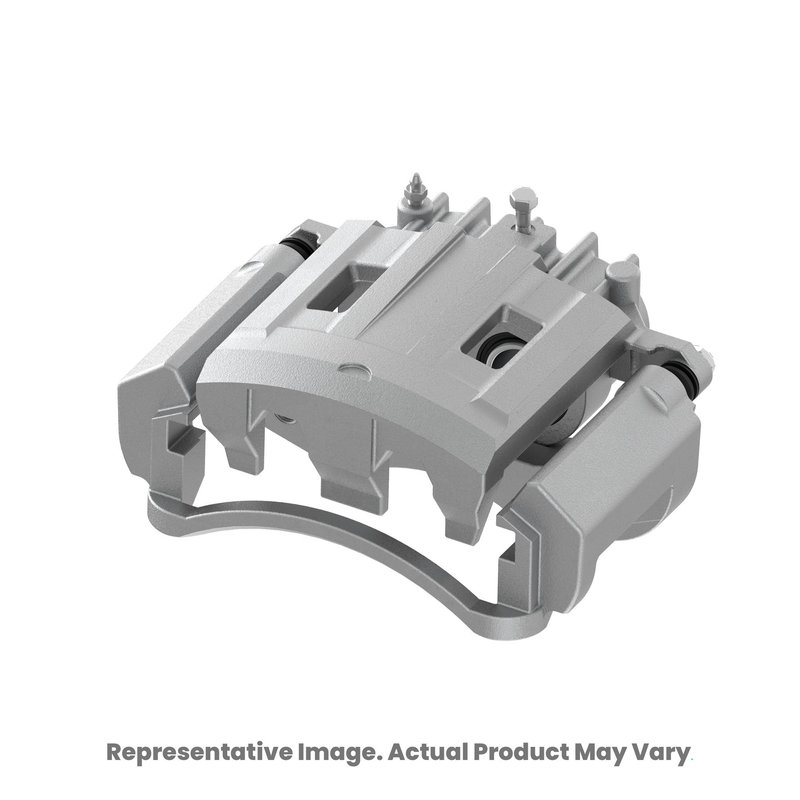

Wagner Brake CN12044SC Disc Brake Caliper - Rear Left

Brake Caliper Overview

Wagner Brake CN12044SC is a disc brake caliper built for rear left applications with a floating design and a supplied mounting bracket. It is engineered with 100% newly manufactured components and a coated finish for consistent braking performance and corrosion resistance.

Key Features

• Floating disc brake caliper with two pistons for controlled hydraulic force.
• Cast iron caliper body for strength and durability.
• Coated finish helps resist corrosion in demanding service conditions.
• Bleeder screw included with M10x1 thread size.
• Mounting bracket included for the specified application.

Detailed Description

Wagner Brake CN12044SC is a direct replacement disc brake caliper for select Ford E-350 Super Duty, Ford E-150, and Ford E-250 applications. The floating caliper design uses two 47.5 mm pistons to apply even clamping force, while the cast iron construction supports stable brake operation. Wagner Brake CN12044SC is built from newly manufactured components and finished with a protective coating to help maintain reliable performance and corrosion resistance over time.

This part cross-references Cardone New 2C-5075 and Raybestos Brakes FRC12044N for the same application.

What It Helps Address

• Uneven braking response from a worn caliper assembly.
• Brake fluid leakage around the caliper body or bleeder area.
• Corrosion on the caliper surface that affects service life.
• Reduced clamping force caused by sticking or worn pistons.
• Brake drag or inconsistent pedal feel in the hydraulic system.

Installation Notes

Fits 2021-2025 Ford E-350 Super Duty, rear left. Fits 2008-2019 Ford E-350 Super Duty, rear left. Fits 2008-2014 Ford E-150, rear left. Fits 2008-2014 Ford E-250, rear left. Verify brake hose connection, bleeder screw thread size, and bracket alignment before installation. Follow the vehicle service procedure for bleeding and torque specifications after installation.

Quality Assurance

Wagner Brake designs this caliper with newly manufactured components and a coated finish to support consistent braking performance and corrosion resistance.
