Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

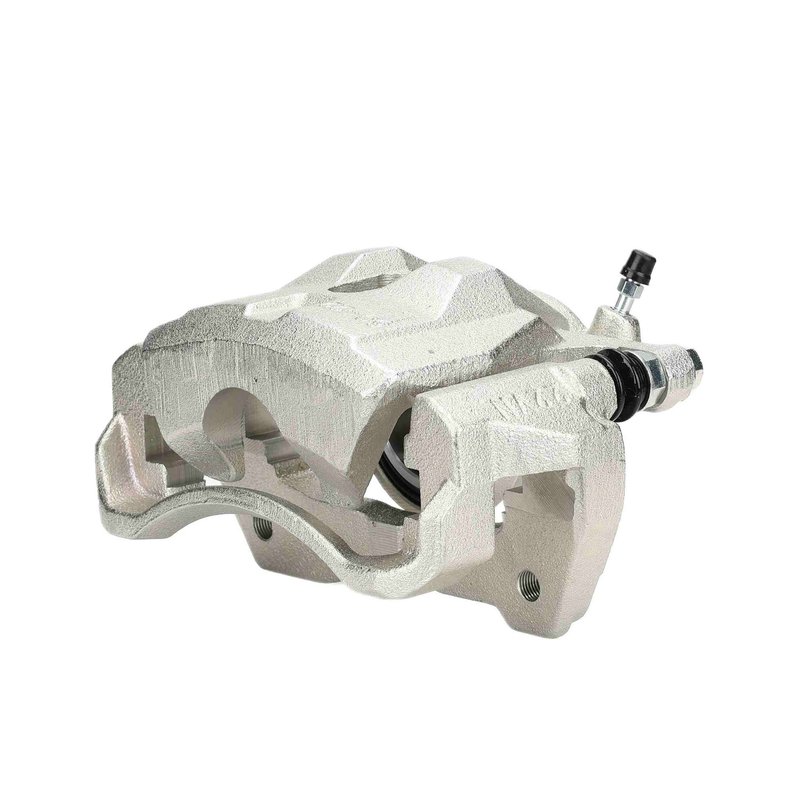

Wagner Brake CN12167SC Disc Brake Caliper - Front Left
| Brand | Wagner Brake CN12167SC |
|---|---|
| Position | Front Left |
| Pads Included | No |
| Caliper Casting Material | Cast iron |
| Bleeder Screw Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 2.370 |
| Piston Diameter | 60.2 |
| Mounting Bracket Included | Yes |
| Bleeder Screw Quantity | 1 |
| Bleeder Screw Thread Size | M7x1 |
| Fits | Pontiac, Scion, and Toyota · 26 vehicles |
Coated finish. Helps resist corrosion and maintain a cleaner caliper surface.
Cast iron body. Provides a rigid housing for hydraulic brake operation.
Mounting bracket included. Supports a complete replacement for listed applications.
Cross-references BBB Industries 99-01710A, Cardone New 2C-3434 and Cardone Reman 19-3434 for the same application. See all 23.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
Wagner Brake CN12167SC is a disc brake caliper built for consistent braking performance and corrosion resistance. It uses 100% newly manufactured components and includes a coated finish for a like-new replacement on supported applications.
Compatible with Toyota Corolla, Scion xD, Toyota Matrix, and Pontiac Vibe applications, this floating caliper is specified with a single 60.2 mm piston, cast iron construction, and an included mounting bracket.
Key Features
- Floating disc brake caliper design for controlled brake application.
- Cast iron caliper body for strength and durability.
- Coated finish for corrosion resistance.
- Single 60.2 mm piston for hydraulic actuation.
- Bleeder screw included with M7x1 thread size.
- Mounting bracket included for supported fitments.
Detailed Description
Wagner Brake CN12167SC is engineered as a direct replacement disc brake caliper for front left applications listed in the fitment data. It is built with 100% newly manufactured components and a coated surface to help maintain braking consistency while resisting corrosion over time. The floating caliper design, cast iron body, and single-piston layout support stable brake pad movement and dependable hydraulic response. This part number, CN12167SC, is listed for Toyota Corolla, Scion xD, Toyota Matrix, and Pontiac Vibe applications with the mounting bracket supplied.
This part cross-references Cardone New 2C-3434 and Raybestos Brakes FRC12167N for the same application.
What It Is Used For
- Restoring brake clamping force when the caliper is worn or sticking.
- Addressing uneven pad wear caused by caliper movement issues.
- Replacing a corroded caliper body or damaged bleeder screw.
- Correcting hydraulic response problems related to piston wear or seizure.
- Returning braking performance on front left brake service applications.
Installation Notes and Tips
Fits 2009-2019 Toyota Corolla, front left. Fits 2008-2014 Scion xD, front left. Fits 2009-2014 Toyota Matrix, front left. Fits 2009-2010 Pontiac Vibe, front left. Verify caliper type, piston size, and bleeder screw thread before installation. Confirm the mounting bracket requirement matches the vehicle application and inspect brake hoses, pads, and rotor condition during service.
Quality Assurance
Wagner Brake uses newly manufactured components and a coated caliper design to support consistent performance and corrosion resistance in brake service applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2018 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2017 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2016 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2015 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2014 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| 2014 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2014 | Toyota | Matrix | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2013 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| 2013 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2013 | Toyota | Matrix | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2012 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| 2012 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2012 | Toyota | Matrix | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2011 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| 2011 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2011 | Toyota | Matrix | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2010 | Pontiac | Vibe | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2010 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| 2010 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2010 | Toyota | Matrix | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2009 | Pontiac | Vibe | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2009 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| 2009 | Toyota | Corolla | — | — | Front Left | Supplied with Mounting Bracket |
| 2009 | Toyota | Matrix | 1.8L | L4 | Front Left | Supplied with Mounting Bracket |
| 2008 | Scion | xD | — | — | Front Left | Supplied with Mounting Bracket |
| No rows match your filter. | ||||||
