Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

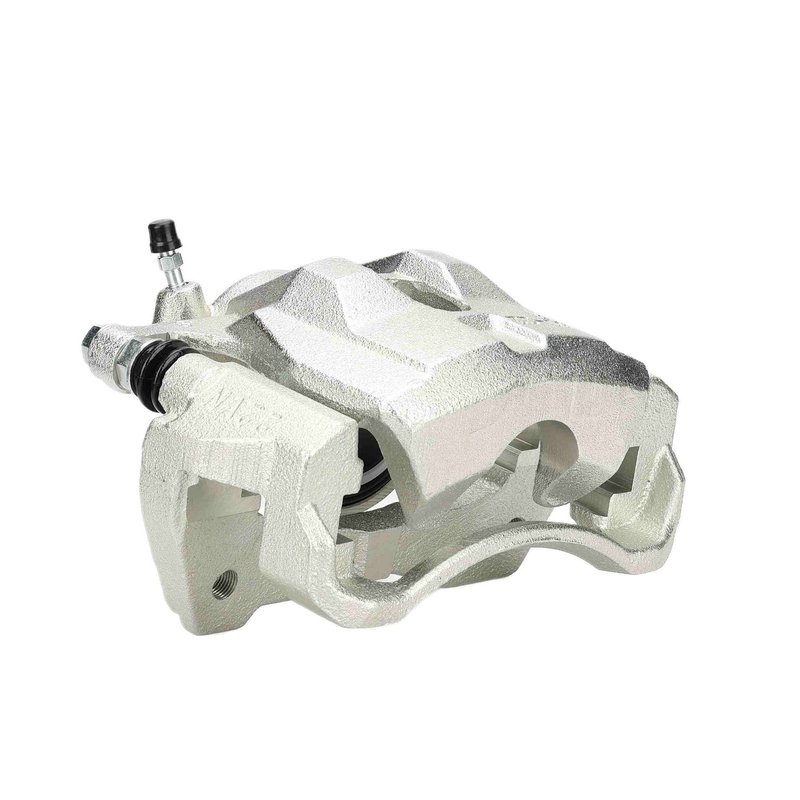

Wagner Brake CN12168SC Disc Brake Caliper - Front Right
| Brand | Wagner Brake CN12168SC |
|---|---|
| Position | Front Right |
| Pads Included | No |
| Caliper Casting Material | Cast iron |
| Bleeder Screw Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 2.370 |
| Piston Diameter | 60.2 |
| Mounting Bracket Included | Yes |
| Bleeder Screw Quantity | 1 |
| Bleeder Screw Thread Size | M7x1 |
| Fits | Pontiac, Scion, and Toyota · 26 vehicles |
New replacement caliper. Built from 100% newly manufactured components for consistent braking performance.
Coated finish. Helps resist corrosion and maintain a cleaner caliper surface over time.
Service-ready design. Includes a bleeder screw and mounting bracket for the listed applications.
Cross-references BBB Industries 99-01710B, Cardone New 2C-3435 and Cardone Reman 19-3435 for the same application. See all 23.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
Wagner Brake CN12168SC is a new disc brake caliper built with 100% newly manufactured components for consistent braking performance and corrosion resistance. It is a floating caliper with a cast iron body, one piston, and a supplied mounting bracket for the listed applications.
Key Features
- New caliper construction with coated surfaces for corrosion resistance.
- Floating design with one 60.2 mm piston for controlled brake application.
- Cast iron caliper body for strength and durability.
- Bleeder screw included for service and brake bleeding.
- Mounting bracket included for the specified fitments.
Detailed Description
This Wagner Brake disc brake caliper, part number CN12168SC, is engineered as a direct replacement-style hydraulic caliper for the listed front right applications. It uses a single piston and floating design to apply braking force smoothly, while the coated finish helps resist corrosion in everyday driving conditions. Fits 2009-2019 Toyota Corolla, front right; fits 2008-2014 Scion xD, front right; fits 2009-2014 Toyota Matrix, front right; and fits 2009-2010 Pontiac Vibe, front right. This part cross-references Cardone New 2C-3435 and Raybestos Brakes FRC12168N for the same application.
Common Uses
- Restores braking response when the original caliper is sticking or worn.
- Addresses uneven pad contact caused by caliper piston or slide wear.
- Helps correct brake fluid seepage from a damaged caliper assembly.
- Supports replacement of a corroded caliper body or bleeder screw.
- Provides a service-ready caliper for front right brake repairs.
Installation Notes
Verify fitment by year, make, model, and front right position before installation. The caliper is supplied with a mounting bracket and bleeder screw; confirm brake pad and hose compatibility with the vehicle’s existing hardware and hydraulic connections. Bleed the brake system after installation and inspect for leaks and proper pedal feel.
Quality Assurance
Wagner Brake uses 100% newly manufactured components and a coated caliper finish to support reliable performance and corrosion resistance.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2018 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2017 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2016 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2015 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2014 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| 2014 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2014 | Toyota | Matrix | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2013 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| 2013 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2013 | Toyota | Matrix | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2012 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| 2012 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2012 | Toyota | Matrix | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2011 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| 2011 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2011 | Toyota | Matrix | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2010 | Pontiac | Vibe | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2010 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| 2010 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2010 | Toyota | Matrix | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2009 | Pontiac | Vibe | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2009 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| 2009 | Toyota | Corolla | — | — | Front Right | Supplied with Mounting Bracket |
| 2009 | Toyota | Matrix | 1.8L | L4 | Front Right | Supplied with Mounting Bracket |
| 2008 | Scion | xD | — | — | Front Right | Supplied with Mounting Bracket |
| No rows match your filter. | ||||||
