Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

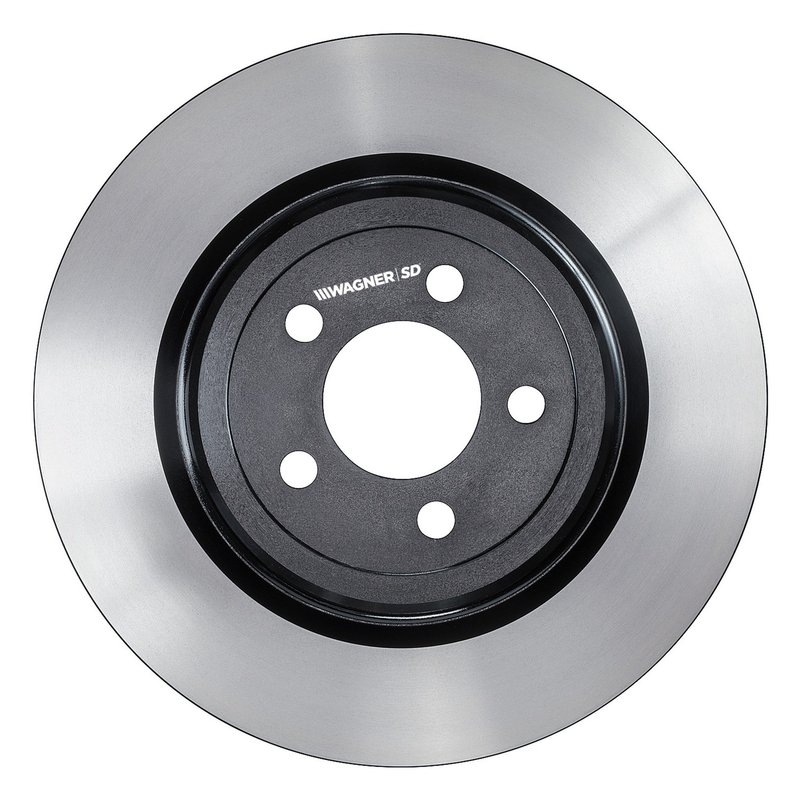

Wagner Brake DSX126420E Disc Brake Rotor - Rear
| Brand | Wagner Brake DSX126420E |
|---|---|
| Position | Rear |
| Material | Cast iron |
| Nominal Thickness | 1.024 |
| Nominal Thickness | 26.0 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 2.638 |
| Overall Height | 67.0 |
| Outside Diameter | 13.780 |
| Outside Diameter | 350.0 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Stud/Lug Hole Quantity | 5 |
| Directional or Non-Directional Brake Surface | Directional |
| Part Description | Disc brake rotor |
| Fits | Dodge · 20 vehicles |
Vented design. Helps manage heat during repeated braking and heavy-duty use.
Rust-resistant coating. Adds surface protection against corrosion during service life.
Full cast construction. Provides a strong cast iron rotor structure for demanding braking.
Cross-references Centric Parts 120.63065, Centric Parts 121.63065 and Centric Parts 320.63065F for the same application. See all 26.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Wagner SD Disc Brake Rotor
The Wagner Brake DSX126420E is a vented disc brake rotor built for demanding braking conditions. It uses full cast construction, a rust-resistant coating, and directional surface design to support consistent braking performance under frequent stops and heavy loads.
Key Features
- Cast iron rotor with full cast construction for strength and durability
- Vented design helps manage heat during repeated braking
- Rust resistant coating helps protect the rotor surface
- Smooth, directional braking surface for controlled contact
- 5-lug design with 350.0 mm outside diameter and 26.0 mm nominal thickness
Detailed Description
Wagner Brake DSX126420E is part of the Wagner SD rotor line, engineered with metallurgy focused on heat control and durability for severe-duty braking use. This disc brake rotor is a direct fit for rear brake applications on select Dodge Charger and Dodge Magnum models, making it a practical choice for drivers who need dependable stopping performance in vehicles that see frequent braking cycles. The DSX126420E part number is also referenced by multiple aftermarket cross numbers for the same application.
This part cross-references Raybestos Brakes (e.g., 780395, 780395FZN) for the same application.
What It Is Used For
- Brake pulsation caused by uneven rotor wear
- Reduced braking consistency during repeated stops
- Heat buildup in demanding driving conditions
- Surface corrosion on exposed brake components
- Rotor replacement on rear brake service for compatible Dodge applications
Installation Notes and Tips
Fits 2006-2023 Dodge Charger, rear. Fits 2007-2008 Dodge Magnum, rear. Confirm rotor diameter, thickness, and lug count before installation. Inspect pads, caliper hardware, and hub condition during brake service to help ensure proper rotor seating and even wear.
Quality Assurance
Wagner Brake designs SD rotors for high-strength durability and heat management in severe-duty braking environments. The DSX126420E is built to support consistent performance in fleet, delivery, municipal, and emergency service use cases.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2023 | Dodge | Charger | Pursuit | — | — | — | Rear | — |
| 2022 | Dodge | Charger | Pursuit | — | — | — | Rear | — |
| 2021 | Dodge | Charger | Pursuit | — | — | — | Rear | — |
| 2020 | Dodge | Charger | Pursuit | — | 3.6L | V6 | Rear | — |
| 2019 | Dodge | Charger | Pursuit | — | 3.6L | V6 | Rear | — |
| 2018 | Dodge | Charger | Pursuit | — | 3.6L | V6 | Rear | — |
| 2017 | Dodge | Charger | Pursuit | — | 5.7L | V8 | Rear | — |
| 2016 | Dodge | Charger | Pursuit | — | — | — | Rear | — |
| 2015 | Dodge | Charger | Pursuit | — | — | — | Rear | — |
| 2014 | Dodge | Charger | Pursuit | — | — | — | Rear | — |
| 2013 | Dodge | Charger | — | RWD | 5.7L | V8 | Rear | — |
| 2012 | Dodge | Charger | — | RWD | 5.7L | V8 | Rear | — |
| 2011 | Dodge | Charger | — | RWD | 5.7L | V8 | Rear | — |
| 2010 | Dodge | Charger | — | RWD | 2.7L | V6 | Rear | — |
| 2009 | Dodge | Charger | — | RWD | 5.7L | V8 | Rear | — |
| 2008 | Dodge | Charger | — | RWD | 2.7L | V6 | Rear | — |
| 2008 | Dodge | Magnum | SE | — | 3.5L | V6 | Rear | — |
| 2007 | Dodge | Charger | — | RWD | 3.5L | V6 | Rear | — |
| 2007 | Dodge | Magnum | SE | — | 3.5L | V6 | Rear | — |
| 2006 | Dodge | Charger | — | RWD | 5.7L | V8 | Rear | — |
| No rows match your filter. | ||||||||
