Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

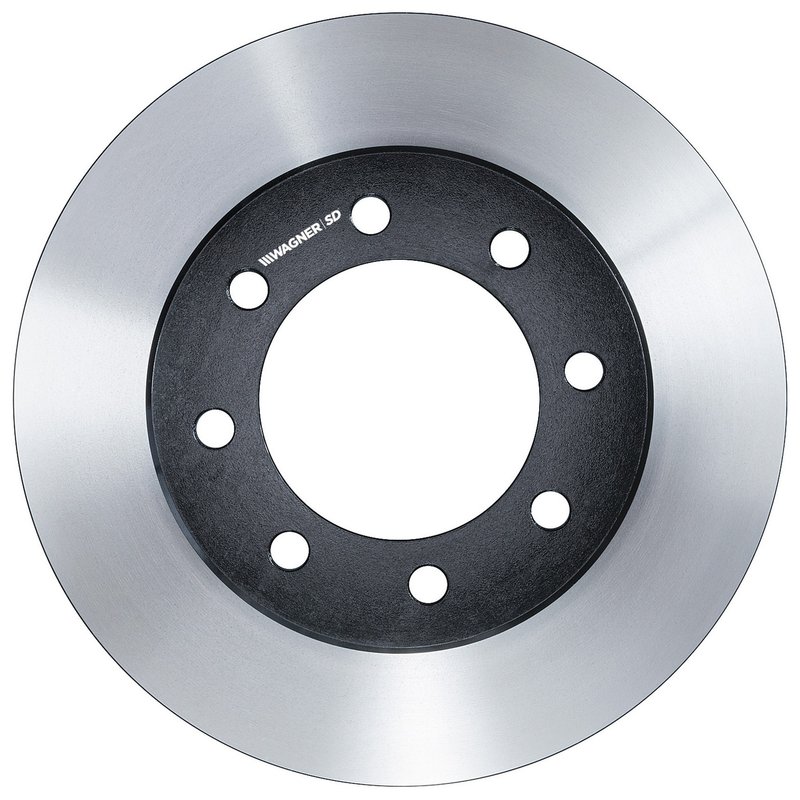

Wagner Brake DSX180311E Disc Brake Rotor - Front
| Brand | Wagner Brake DSX180311E |
|---|---|
| Position | Front |
| Material | Cast iron |
| Nominal Thickness | 1.537 |
| Nominal Thickness | 39.0 |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 102.1 |
| Overall Height | 4.020 |
| Outside Diameter | 14.187 |
| Outside Diameter | 360.3 |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Stud/Lug Hole Quantity | 8 |
| Directional or Non-Directional Brake Surface | Directional |
| Part Description | Disc brake rotor |
| Fits | Dodge and Ram · 37 vehicles |
OE-style replacement. Direct-fit brake rotor for select heavy-duty truck applications.
Vented cast iron design. Helps manage heat during repeated braking and load-carrying use.
Rust resistant coating. Adds surface protection before and after installation.
Cross-references Bosch 16011495, Centric Parts 120.67072 and Centric Parts 121.67072 for the same application. See all 30.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The Wagner Brake DSX180311E disc brake rotor is built for heavy-duty stopping demands with a full cast iron construction and a vented design. It is a fitment-based replacement for select Ram and Dodge Ram trucks, including front applications that see frequent braking and higher load conditions.
Key Features
- Full cast iron rotor construction for strength and thermal stability.
- Vented design helps manage heat during repeated stops.
- Rust resistant coating helps protect the rotor surface before and after installation.
- Smooth, directional braking surface supports consistent pad contact.
- 8-lug pattern for select heavy-duty truck applications.
Detailed Description
Wagner Brake DSX180311E is a disc brake rotor engineered for demanding service where heat control and durability matter. The cast iron, full cast construction and vented profile are suited to heavy-duty braking loads, while the smooth, directional surface is intended to support even braking performance. This rotor is compatible with 2011-2026 Ram 2500 front, 2011-2026 Ram 3500 front, 2012 Ram 1500 front, 2009-2010 Dodge Ram 2500 front, and 2009-2010 Dodge Ram 3500 front. This part cross-references Mopar 68414882AB and Raybestos Brakes 780736 for the same application. For Ram 2500 and Ram 3500 front brake service, DSX180311E provides a direct replacement option with the dimensions and lug pattern needed for the listed applications.
What It Is Used For
- Replacing a worn or heat-checked front brake rotor.
- Restoring braking smoothness after rotor scoring or uneven wear.
- Addressing brake pulsation caused by rotor thickness variation.
- Supporting repeated stop-and-go braking in heavy-duty use.
- Maintaining proper braking surface contact on compatible Ram and Dodge Ram trucks.
Installation Notes and Tips
Verify rotor diameter, thickness, and lug count before installation. Clean the hub mounting surface thoroughly to reduce runout concerns and follow the vehicle manufacturer’s brake service procedure. Because this rotor uses a directional braking surface, install it according to the rotor orientation and the vehicle’s service instructions.
Quality Assurance
Wagner Brake designs SD rotors with metallurgy focused on strength and heat management for severe-duty braking environments. DSX180311E is built to meet the demands of fleet, delivery, municipal, and emergency service use.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2026 | Ram | 2500 | — | — | — | Front | — |
| 2026 | Ram | 3500 | — | — | — | Front | — |
| 2025 | Ram | 2500 | — | — | — | Front | — |
| 2025 | Ram | 3500 | — | — | — | Front | — |
| 2024 | Ram | 2500 | — | — | — | Front | — |
| 2024 | Ram | 3500 | — | — | — | Front | — |
| 2023 | Ram | 2500 | — | — | — | Front | — |
| 2023 | Ram | 3500 | — | — | — | Front | — |
| 2022 | Ram | 2500 | — | — | — | Front | — |
| 2022 | Ram | 3500 | — | — | — | Front | — |
| 2021 | Ram | 2500 | — | — | — | Front | — |
| 2021 | Ram | 3500 | — | — | — | Front | — |
| 2020 | Ram | 2500 | — | — | — | Front | — |
| 2020 | Ram | 3500 | — | — | — | Front | — |
| 2019 | Ram | 2500 | — | — | — | Front | — |
| 2019 | Ram | 3500 | — | — | — | Front | — |
| 2018 | Ram | 2500 | — | — | — | Front | — |
| 2018 | Ram | 3500 | — | — | — | Front | — |
| 2017 | Ram | 2500 | — | — | — | Front | — |
| 2017 | Ram | 3500 | — | — | — | Front | — |
| 2016 | Ram | 2500 | — | — | — | Front | — |
| 2016 | Ram | 3500 | — | — | — | Front | — |
| 2015 | Ram | 2500 | — | — | — | Front | — |
| 2015 | Ram | 3500 | — | — | — | Front | — |
| 2014 | Ram | 2500 | — | — | — | Front | — |
| 2014 | Ram | 3500 | — | — | — | Front | — |
| 2013 | Ram | 2500 | — | — | — | Front | — |
| 2013 | Ram | 3500 | — | — | — | Front | — |
| 2012 | Ram | 1500 | Tradesman HD | 5.7L | V8 | Front | — |
| 2012 | Ram | 2500 | — | — | — | Front | — |
| 2012 | Ram | 3500 | — | — | — | Front | — |
| 2011 | Ram | 2500 | — | — | — | Front | — |
| 2011 | Ram | 3500 | — | — | — | Front | — |
| 2010 | Dodge | Ram 2500 | — | — | — | Front | — |
| 2010 | Dodge | Ram 3500 | — | — | — | Front | — |
| 2009 | Dodge | Ram 2500 | — | — | — | Front | — |
| 2009 | Dodge | Ram 3500 | — | — | — | Front | — |
| No rows match your filter. | |||||||
