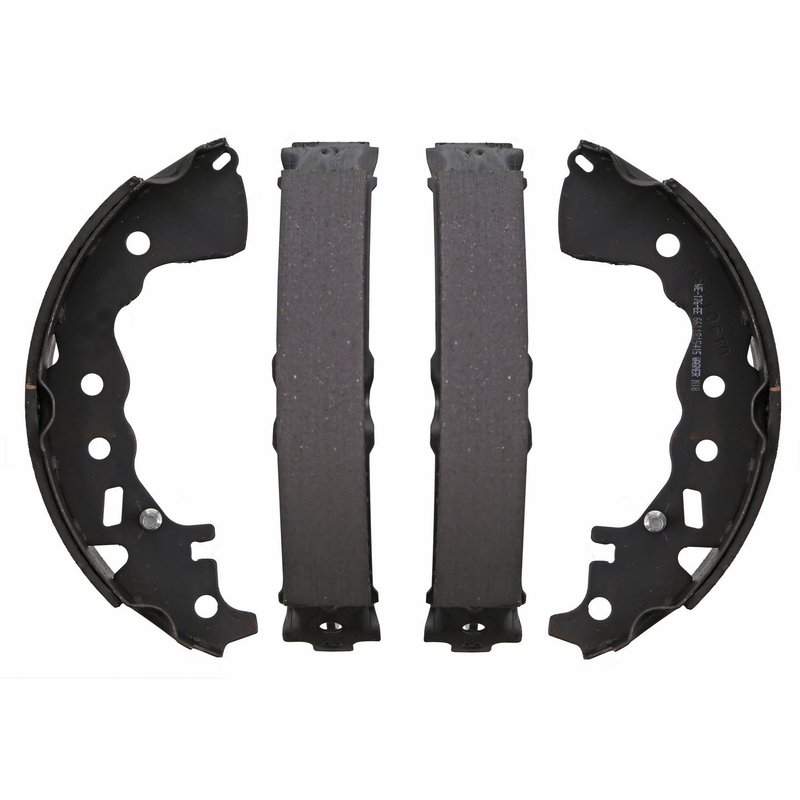

Wagner Brake Z1106 Drum Brake Shoe - Rear

Wagner Z1106 Rear Drum Brake Shoe

Wagner Brake Z1106 is a rear drum brake shoe built with OE-matched friction material and precision-ground surfaces to improve friction-to-drum contact. It is a direct-fit brake shoe option for select Nissan applications, including Nissan Kicks and Nissan Versa rear brake service.

Key Features

• Organic friction material for consistent drum brake operation
• Bonded friction attachment for stable lining retention
• Brake shoe width: 1.188 in.
• Brake drum diameter: 7.870 in.
• Primary friction material thickness: 0.180 in.
• FMSI numbers: 1751-S1106, 1751 lining, S1106 steel
• Mounting hardware not included
• Parking brake levers not included

Product Details

The Wagner Brake Z1106 rear drum brake shoe is engineered for vehicles that use a 7.870-inch brake drum and a 1.188-inch shoe width. Its organic friction material is paired with precision-ground construction to help maximize contact between the shoe and drum, supporting smooth rear brake performance. This part is a strong match for rear brake service on Nissan Kicks and Nissan Versa models that use the listed drum brake configuration.

Wagner’s Wagner line focuses on OE-style brake service parts, and this shoe follows that approach with friction material selected to match original equipment behavior. This part cross-references Monroe Shocks & Struts (e.g., D40605RB0A) for the same application. The Wagner Z1106 is a practical replacement choice when servicing rear drum brakes on 2017-2024 Nissan Kicks, 2020-2025 Nissan Versa, and 2025 Nissan Kicks Play applications listed below.

What It Helps Address

• Rear brake noise caused by worn drum shoe linings
• Reduced braking response from thin or glazed friction material
• Uneven drum contact from worn shoe surfaces
• Brake pull or inconsistent rear braking from aged shoes
• Service needs on rear drum brake systems for Nissan Kicks and Nissan Versa

Installation Notes and Tips

Verify drum diameter, shoe width, and FMSI match before installation. Inspect the brake drum for scoring, heat spots, or out-of-round wear, and replace or machine the drum as needed to restore proper contact. Because mounting hardware and parking brake levers are not included, reuse only serviceable components or replace them separately if wear is present. After installation, adjust the rear drum brakes according to the vehicle service procedure and perform a careful road test.

Quality Assurance

Wagner Brake uses OE-matched friction materials and precision-ground manufacturing methods to support consistent brake shoe-to-drum contact. The Z1106 is built to meet the dimensional and friction requirements listed for the confirmed Nissan rear drum brake applications.

Compatible Vehicles

• Fits 2025 Nissan Kicks Play, rear
• Fits 2022-2025 Nissan Versa, rear
• Fits 2022-2024 Nissan Kicks, rear
• Fits 2017-2021 Nissan Kicks, rear
• Fits 2020-2021 Nissan Versa, rear
