Wagner BrakePart #: Z169R

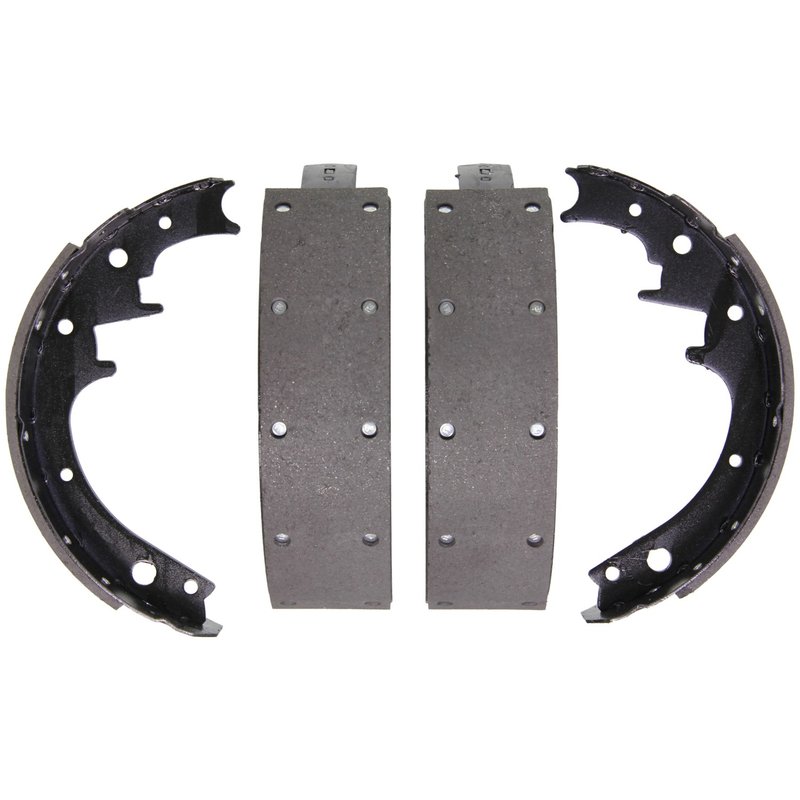

Wagner Brake Z169R Drum Brake Shoe - Front or Rear
131 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$46.22Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Wagner, Rear
Fitment: Ford, Mazda, American Motors, Mercury, Dodge, Plymouth, Hudson, and Nash, Aerostar, Explorer, Ranger, B2300, B3000, B4000, Navajo, F-100, F-150, Matador, Grand Marquis, Gremlin, Hornet, Pacer, Montego, Elite, Gran Torino, Maverick, Torino, Comet, Cougar, Marquis, Ambassador, Javelin, Ranchero, Bronco, Mustang, E-100 Econoline, Colony Park, Cyclone, AMX, Rebel, Fairlane, Falcon, Ranch Wagon, Marauder, Monterey, American, A100, A100 Truck, A108 Van, Charger, Coronet, Belvedere, Fury, Fury I, Fury II, Fury III, GTX, Road Runner, Satellite, Marlin, Econoline, Caliente, Capri, Villager, Voyager, Belvedere II, VIP, Classic, 330, Polara, Savoy, 880, Dart, Wasp, Ambassador Custom, Ambassador Special, Ambassador Super, and Statesman
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Drum Brake Shoe options
Wagner Z169R Drum Brake Shoe Overview
The Wagner Z169R drum brake shoe is built for vehicles that use 10-inch by 2-1/2-inch rear or front drum brake setups. It uses organic friction material with riveted attachment and precision-ground surfaces to improve friction-to-drum contact for consistent braking response.
Compatible with a wide range of Ford, Mercury, Dodge, and Mazda applications, this Wagner brake shoe is a direct-fit option for classic and late-model trucks, vans, and passenger vehicles that require the S169R / Z169R specification.
- Organic friction material for predictable drum brake operation
- Riveted friction attachment for the listed OE-style application
- 2.500-inch brake shoe width
- 10.000-inch brake drum diameter specification
- Primary friction thickness: 0.210; secondary friction thickness: 0.250
- FMSI number S169R / FMSI steel S169R
- Fits front and rear positions depending on vehicle application
Product Details and Fitment
Wagner Brake uses OE-matched friction materials and precision-ground components to help maintain proper shoe-to-drum contact. The Z169R is a practical choice for drivers servicing drum brake systems on Ford Mustang, Ford Bronco, Ford Ranger, and Mazda Navajo applications, as well as several Mercury and Dodge models listed below.
This part cross-references E6TZ2200B and R169 for the same application.
- Fits 1986-1997 Ford Aerostar, rear, with 10 in x 2-1/2 in brakes
- Fits 1991-1994 Ford Explorer, rear, with 10 in x 2-1/2 in brakes
- Fits 1983-1994 Ford Ranger, rear, with 10 in x 2-1/2 in brakes
- Fits 1994 Mazda B2300, rear, with 10 in x 2-1/2 in brakes
- Fits 1994 Mazda B3000, rear, with 10 in x 2-1/2 in brakes
- Fits 1994 Mazda B4000, rear, with 10 in x 2-1/2 in brakes
- Fits 1991-1994 Mazda Navajo, rear, with 10 in x 2-1/2 in brakes
- Fits 1981-1982 Ford F-100, rear, with 10 in x 2-1/2 in brakes
- Fits 1980-1982 Ford F-150, rear, with 10 in x 2-1/2 in brakes
- Fits 1980 Ford F-100, rear, with 10 in x 2-1/2 in brakes and 4600-4700 lb GVW
- Fits 1975-1978 Mercury Grand Marquis, rear, with 10 in x 2-1/2 in brakes
- Fits 1973-1976 Mercury Montego, rear, with 10 in x 2-1/2 in brakes
- Fits 1968-1971 Mercury Montego, rear, with 10 in x 2-1/2 in brakes
- Fits 1974-1975 Mercury Cougar, rear, with 10 in x 2-1/2 in brakes
- Fits 1967-1969 Mercury Cougar, rear, with 10 in x 2-1/2 in brakes
- Fits 1975 Mercury Marquis, rear, with 10 in x 2-1/2 in brakes
- Fits 1966-1973 Ford Bronco, rear, with 10 in x 2-1/2 in brakes
- Fits 1967-1973 Ford Mustang, rear, with 10 in x 2-1/2 in brakes
- Fits 1967-1973 Ford Mustang, front, with 10 in x 2-1/2 in brakes
- Fits 1967-1972 Mercury Cougar, front, with 10 in x 2-1/2 in brakes
- Fits 1972 Mercury Montego, rear, with 15 in wheels and 10 in x 2-1/2 in brakes
- Fits 1969-1971 Ford E-100 Econoline, front, with 10 in x 2-1/2 in brakes
- Fits 1968-1971 Mercury Colony Park, front, with 10 in x 2-1/2 in brakes
- Fits 1968-1971 Mercury Marquis, front, with 10 in x 2-1/2 in brakes
- Fits 1968-1971 Mercury Montego, front, with 10 in x 2-1/2 in brakes
- Fits 1969-1970 Mercury Marauder, front, with 10 in x 2-1/2 in brakes
- Fits 1966-1968 Dodge Charger, rear, with 10 in x 2-1/2 in brakes
- Fits 1966-1968 Dodge Charger, front, with 10 in x 2-1/2 in brakes
- Fits 1961-1967 Ford Econoline, rear, with 10 in x 2-1/2 in brakes
- Fits 1961-1967 Ford Econoline, front, with 10 in x 2-1/2 in brakes
- Fits 1967 Mercury Capri, front, with 10 in x 2-1/2 in brakes
- Fits 1967 Mercury Villager, rear, with 10 in x 2-1/2 in brakes
- Fits 1966 Mercury Villager, front, with 10 in x 2-1/2 in brakes
- Fits 1962 Dodge Dart, rear, with 10 in x 2-1/2 in brakes
- Fits 1962 Dodge Dart, front, with 10 ft x 2-1/2 in brakes
Common Brake Issues This Part Addresses
- Worn drum brake shoes causing reduced stopping performance
- Uneven shoe-to-drum contact in 10-inch drum brake systems
- Brake noise or chatter from aged friction material
- Loss of braking consistency in rear drum brake applications
- Service replacement needs for OE-style Ford, Mercury, Dodge, and Mazda drum brakes
Installation Notes and Tips
Confirm drum diameter, shoe width, and axle position before installation. This Z169R shoe is specified for 10-inch by 2-1/2-inch brake systems, so matching the drum and backing plate configuration is essential. Inspect the brake drum, wheel cylinder, return springs, and adjuster hardware during service, and replace any worn components before assembly.
Because mounting hardware is not included, reuse or source the required brake hardware separately as needed for the vehicle application. Verify the vehicle’s front or rear brake position against the fitment list before ordering.
Quality Assurance
Wagner Brake specifies OE-matched friction materials and precision-ground surfaces to support proper contact between the shoe and drum. The Z169R is identified by FMSI S169R and is built to the listed dimensional and application requirements for the vehicles shown.
This part fits 131 vehicles. Search below:
