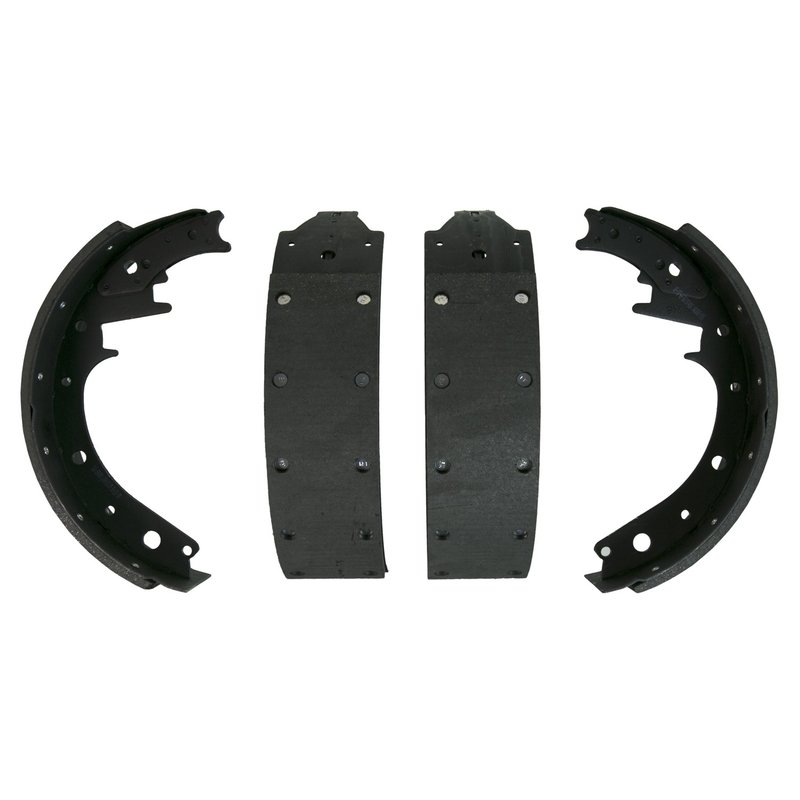

Wagner Brake Z248DR Drum Brake Shoe - Front or Rear
Wagner Z248DR Drum Brake Shoe Overview
The Wagner Z248DR drum brake shoe is built for rear and front applications that use an 11-5/32 in. x 2-3/4 in. brake setup. It uses OE-matched organic friction material and precision-ground surfaces to improve friction-to-drum contact for consistent braking performance.
For classic Chevrolet and GMC trucks and vans, this Wagner brake shoe provides the correct fitment details for targeted replacement work on the rear or front axle, depending on the vehicle application.
Key Features
- Part number: Z248DR
- Drum brake shoe with 2.750 in. width
- Organic friction material with riveted attachment
- 11.125 in. brake drum diameter
- Primary and secondary friction material thickness: 0.250 in.
- FMSI number: S248DR
- Precision-ground material surfaces for improved drum contact
- Mounting hardware not included
Product Details
Wagner Brake uses OE-matched friction materials in the Z248DR to support predictable pedal response and stable braking feel. The riveted organic lining is paired with precision-ground shoe material to help maximize contact with the brake drum, which is important in drum brake service where surface consistency affects braking performance. This part cross-references Raybestos Brakes 248PG for the same application.
Compatible With 1975 Chevrolet C10, rear; 1974-1975 Chevrolet C10 Suburban, rear; 1975 Chevrolet C20, rear; 1974-1975 Chevrolet C20 Suburban, rear; 1975 Chevrolet G20, rear; 1975 Chevrolet K10, rear; 1975 Chevrolet K10 Suburban, rear; 1975 Chevrolet K20, rear; 1974-1975 Chevrolet K20 Suburban, rear; 1975 Chevrolet K5 Blazer, rear; 1975 Chevrolet P10, rear; 1975 Chevrolet P20, rear; 1975 GMC G25, rear; 1974-1975 GMC Jimmy, rear; 1974 Chevrolet Blazer, rear; 1974 Chevrolet K10 Suburban, rear; 1974 GMC G25/G2500 Van, rear; 1973 Chevrolet C20 Suburban, rear; 1972-1973 Chevrolet K20 Suburban, rear; 1971-1972 Chevrolet C20 Suburban, rear; 1971 GMC G35/G3500 Van, front; 1968-1970 Chevrolet C20 Suburban, front.
Common Repair Uses
- Restoring rear drum brake performance on classic Chevrolet C10, C20, K10, and K20 trucks
- Replacing worn brake shoes on Chevrolet Blazer, K5 Blazer, and Suburban drum brake systems
- Addressing reduced braking force caused by worn friction lining
- Correcting brake noise or uneven drum contact from aged shoe surfaces
- Servicing front drum brake applications on select Chevrolet C20 Suburban and GMC van models
Installation Notes
Verify brake drum diameter, shoe width, axle position, and GVW notes before installation. This Z248DR shoe is specified for 11-5/32 in. x 2-3/4 in. brake assemblies, and the listed fitment includes both rear and front applications depending on vehicle. Inspect the drum, wheel cylinders, return springs, and adjusters during service, and replace worn or heat-damaged components as needed for proper brake operation.
Quality Assurance
Wagner Brake manufactures this shoe with OE-matched friction material and precision-ground surfaces to support consistent fit and braking contact in the specified applications. The Z248DR is identified by FMSI S248DR and is built for the listed Chevrolet and GMC drum brake configurations.
| Brand | Wagner Brake |
|---|---|
| Part Number | Z248DR |
| Position | Wagner, Rear and Front |
| Brake Shoe Width | 2.750 |
| Friction Material Composition | Organic |
| Mounting Hardware Included | No |
| Friction Material Attachment | Riveted |
| Brake Drum Diameter | 11.125 |
| FMSI Number | S248dr |
| Primary Brake Shoe Friction Material Thickness | 0.250 |
| Secondary Brake Shoe Friction Material Thickness | 0.250 |
| FMSI Steel | S248dr |
This part fits 30 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 1975 | Chevrolet | C10 | Rear | To 6000 (lb) GVW; with 11-5/32 (in) x 2-3/4 (in) Brakes; with Heavy Duty Brakes; Wagner | |
| 1975 | Chevrolet | C10 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 6000 (lb) to 7000 (lb) GVW; Wagner | |
| 1975 | Chevrolet | C20 | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 6400 (lb) to 7100 (lb) GVW; Wagner | |
| 1975 | Chevrolet | C20 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 6400 (lb) to 7100 (lb) GVW; Wagner | |
| 1975 | Chevrolet | G20 | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | Chevrolet | K10 | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 5800 (lb) to 6400 (lb) GVW; Wagner | |
| 1975 | Chevrolet | K10 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | Chevrolet | K20 | Rear | To 6800 (lb) GVW; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | Chevrolet | K20 Suburban | Rear | To 6800 (lb) GVW; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | Chevrolet | K5 Blazer | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | Chevrolet | P10 | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | Chevrolet | P20 | Stripped Chassis | Rear | To 6800 (lb) GVW; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner |
| 1975 | GMC | G25 | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1975 | GMC | Jimmy | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1974 | Chevrolet | Blazer | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1974 | Chevrolet | C10 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 6000 (lb) to 7000 (lb) GVW; Wagner | |
| 1974 | Chevrolet | C20 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 6400 (lb) to 7100 (lb) GVW; Wagner | |
| 1974 | Chevrolet | K10 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; with 6000 (lb) to 7150 (lb) GVW; Wagner | |
| 1974 | Chevrolet | K20 Suburban | Rear | To 6800 (lb) GVW; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1974 | GMC | G25/G2500 Van | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1974 | GMC | Jimmy | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1973 | Chevrolet | C20 Suburban | Rear | Except Heavy Duty Brakes; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1973 | Chevrolet | K20 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1972 | Chevrolet | C20 Suburban | Rear | with # GM Rear Axle; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1972 | Chevrolet | K20 Suburban | Rear | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1971 | Chevrolet | C20 Suburban | Rear | with # GM Rear Axle; with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1971 | GMC | G35/G3500 Van | Front | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1970 | Chevrolet | C20 Suburban | Front | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1969 | Chevrolet | C20 Suburban | Front | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner | |
| 1968 | Chevrolet | C20 Suburban | Front | with 11-5/32 (in) x 2-3/4 (in) Brakes; Wagner |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
