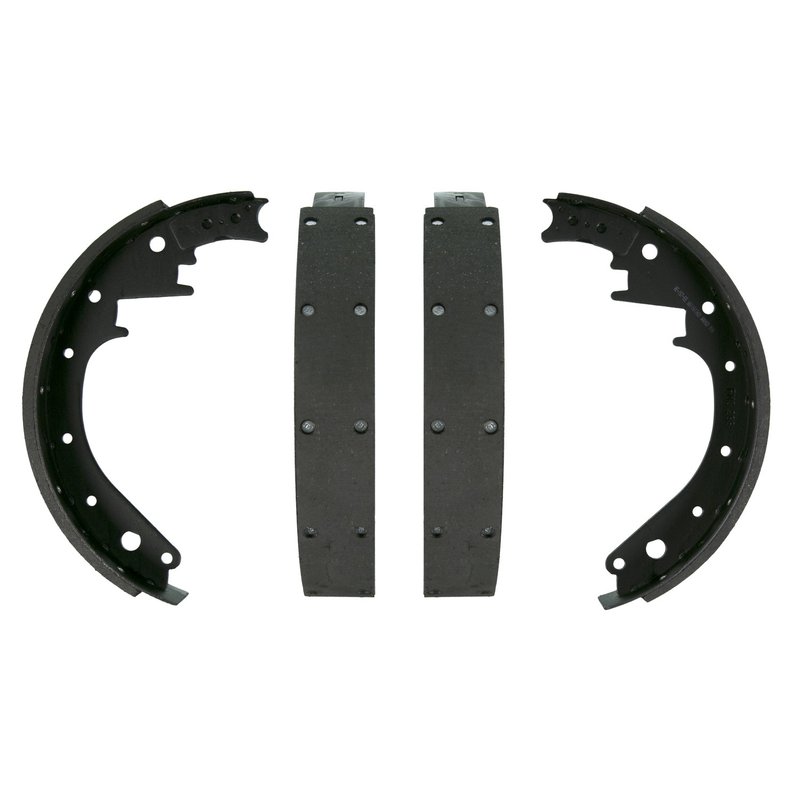

Wagner Brake Z283R Drum Brake Shoe - Rear
Wagner Z283R Rear Drum Brake Shoe
The Wagner Z283R is a rear drum brake shoe built for vehicles using 11 x 1-3/4 inch drum brakes. It uses OE-matched organic friction material and precision-ground surfaces to help maintain consistent friction-to-drum contact on classic Ford applications.
Key Features
- Rear drum brake shoe for 11.000 inch brake drums
- 1.750 inch brake shoe width
- Organic friction material with riveted attachment
- Primary friction thickness: 0.210 inch
- Secondary friction thickness: 0.270 inch
- FMSI number S283R for identification
- Wagner brake shoe construction for OE-style fit and function
Product Details
Wagner Brake Z283R is a drum brake shoe for rear axle applications that call for an 11 inch drum and 1-3/4 inch shoe width. The organic friction compound is matched to OE-style performance targets, while the precision-ground material helps promote even contact across the drum surface. This part number is commonly referenced for classic Ford Bronco, Ford F-100, and Ford F-250 rear brake service.
This part cross-references Raybestos Brakes 283PG for the same application. The Wagner Z283R and FMSI S283R identifiers are useful when verifying drum brake shoe selection against existing hardware and service references.
Vehicle Fitment
- Fits 1966-1975 Ford Bronco, rear, with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner
- Fits 1964-1967 Ford F-100, rear, with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner
- Fits 1965 Ford F-250, rear, with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner
Common Uses
- Replacing worn rear drum brake shoes on classic Ford Bronco models
- Restoring braking performance on Ford F-100 rear drum brake systems
- Addressing reduced stopping power from worn friction material
- Correcting brake noise caused by aged or uneven shoe lining
- Improving drum-to-shoe contact when service parts no longer match original dimensions
Installation Notes
Verify drum diameter, shoe width, and FMSI S283R before installation. This shoe uses riveted friction material and does not include mounting hardware, so inspect related brake hardware, return springs, and adjusters during service. Clean the drum and check for scoring or out-of-round wear before assembly.
Quality Assurance
Wagner Brake uses OE-matched friction materials and precision-ground components to support consistent brake shoe-to-drum contact. Confirm all measurements against the existing brake assembly before installation on your Ford Bronco, Ford F-100, or Ford F-250.
| Brand | Wagner Brake |
|---|---|
| Part Number | Z283R |
| Position | Wagner, Rear |
| Brake Shoe Width | 1.750 |
| Friction Material Composition | Organic |
| Mounting Hardware Included | No |
| Friction Material Attachment | Riveted |
| Brake Drum Diameter | 11.000 |
| FMSI Number | S283r |
| Primary Brake Shoe Friction Material Thickness | 0.210 |
| Secondary Brake Shoe Friction Material Thickness | 0.270 |
| FMSI Steel | S283r |
This part fits 15 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1975 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1974 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1973 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1972 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1971 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1970 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1969 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1968 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1967 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1967 | Ford | F-100 | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1966 | Ford | Bronco | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1966 | Ford | F-100 | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1965 | Ford | F-100 | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1965 | Ford | F-250 | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
| 1964 | Ford | F-100 | Rear | with 11 (in) x 1-3/4 (in) Brakes; Riveted Shoe; Wagner |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
